Pioneer VSX-LX305B 9.2 Channel AV Receiver Black CLEARANCE
Unit new & unused Complete with all accessories Outer box bit scruffy
Stock no.: 1061700002
Features
“Elite” is more than a name
The Pioneer Elite VSX-LX305 home theater receiver features nine channels of robust power and advanced surround sound decoding for premium performance. Available options include multi-zone audio/video in up to three rooms. Add voice control with an Amazon Alexa or Google Home device.
Dolby Atmos and DTS:X® cinema sound
This nine-channel receiver supports 7.1.2 or 5.1.4 speaker configurations for cinematic overhead effects with upward-firing or in-ceiling speakers. Or, go with five speakers in your home theater room and use the remaining channels of power to drive speakers in two additional rooms. Run the industry-leading Dirac Live® room correction software on your mobile device, PC, or Mac® to perfect your surround sound.
Advanced HDMI connections
All HDMI ports on the back support 8K and 4K/120 Hz sources, including the latest next-gen game consoles. Gamers will appreciate advanced features like Auto Low Latency Mode and Variable Refresh Rate, which help keep the on-screen action smooth and stutter-free. A front-panel HDMI port supports 4K, great for connecting a video camera.
Create your own concert hall
Stream music with Bluetooth or play Wi-Fi networked sources like Apple AirPlay 2, Chromecast built-in, and Spotify® Connect. Use the optical or coaxial digital inputs to connect a CD player or break out your vinyl collection and connect your turntable to the dedicated phono input. You can even play high-resolution music files from a USB stick or a networked computer.
Integrate Sonos with your system
This "Works with Sonos" certified receiver lets you tie your home theater into a whole-house audio system when you add a Sonos Port. Control the audio on your receiver using the Sonos app on your mobile device, PC, or Mac for a whole-home Sonos experience. The app will even turn on the VSX-LX305 and select the correct input.
Specification
Amplification
Channels 9
Amplification Type Direct Energy
225 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
100 W/ch (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven FTC)
Audio Features
IMAX Enhanced Yes
Dolby Atmos®, Dolby Surround Upmixer supports DTS Formats Yes
Reflex Optimizer Yes
Dolby Atmos Height Virtualizer Yes
Dolby® TrueHD, Dolby Digital Plus Yes
DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express Yes
DSD Disc (SACD) Playback via HDMI (2.8 MHz/2 ch, 5.1 ch)
Digital Quad-Core 32-bit DSP (Cirrus Logic) + Aureus™ floating-point DSP (TI) Yes
192 kHz/24-bit D/A Conversion for Hi-Res Audio Yes
Enhanced Audio Return Channel (eARC) on HDMI Out (Main) Yes
Advanced MCACC Auto Room Tuning Auto Phase Control Plus • Subwoofer EQ • Multi-point Standing Wave Control
Dirac Live® Room Correction Yes
Advanced Sound Retriever (2ch) Yes
Advanced Surround Modes Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Mono Music, Front Stage Surround Advance
Video Features
Support HDMI 2.1*1 with 8K VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QFT (Quick Frame transport), DSC (Display Stream Compression), and QMS (Quick Media Switching) pass-through
Supports HDR10+ HDR10, and HLG; 8K/60p (4:2:0/10-bit), 8K/30p (4:4:4/10-bit, 4:2:2/12-bit), 4K/120p (4:4:4/10-bit, 4:2:2/12-bit), 4K60p (4:4:4/12-bit) and BT.2020 color; DeepColor™ (36-bit), “x.v.Color”, LipSync, and HDCP 2.3
Dolby Vision Compatible Yes
Ultra HD Upscaling (4K to 8K, 1080p to 8K/4K) Yes
Convenience Features
Personal Preset Yes
Dialog Enhancement Yes
Dual Band (5 GHz/2.4 GHz) Wi-Fi® Built-in Yes
Bluetooth® Wireless Technology Transmitter/Receiver (Version: 4.2, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/aptX/aptX HD (TX), SBC/AAC(RX)) Built-in
Pioneer Remote App Ready for Multi-room Entertainment Control and Network Streaming
User-Friendly GUI with System Setup Menu Yes
On-Screen Information for Audio, Video and Network Yes
Web Setup Yes
Auto Power Off in HDMI Standby Through Yes
AM/FM Tuner 40 Presets Yes
Sleep Timer Yes

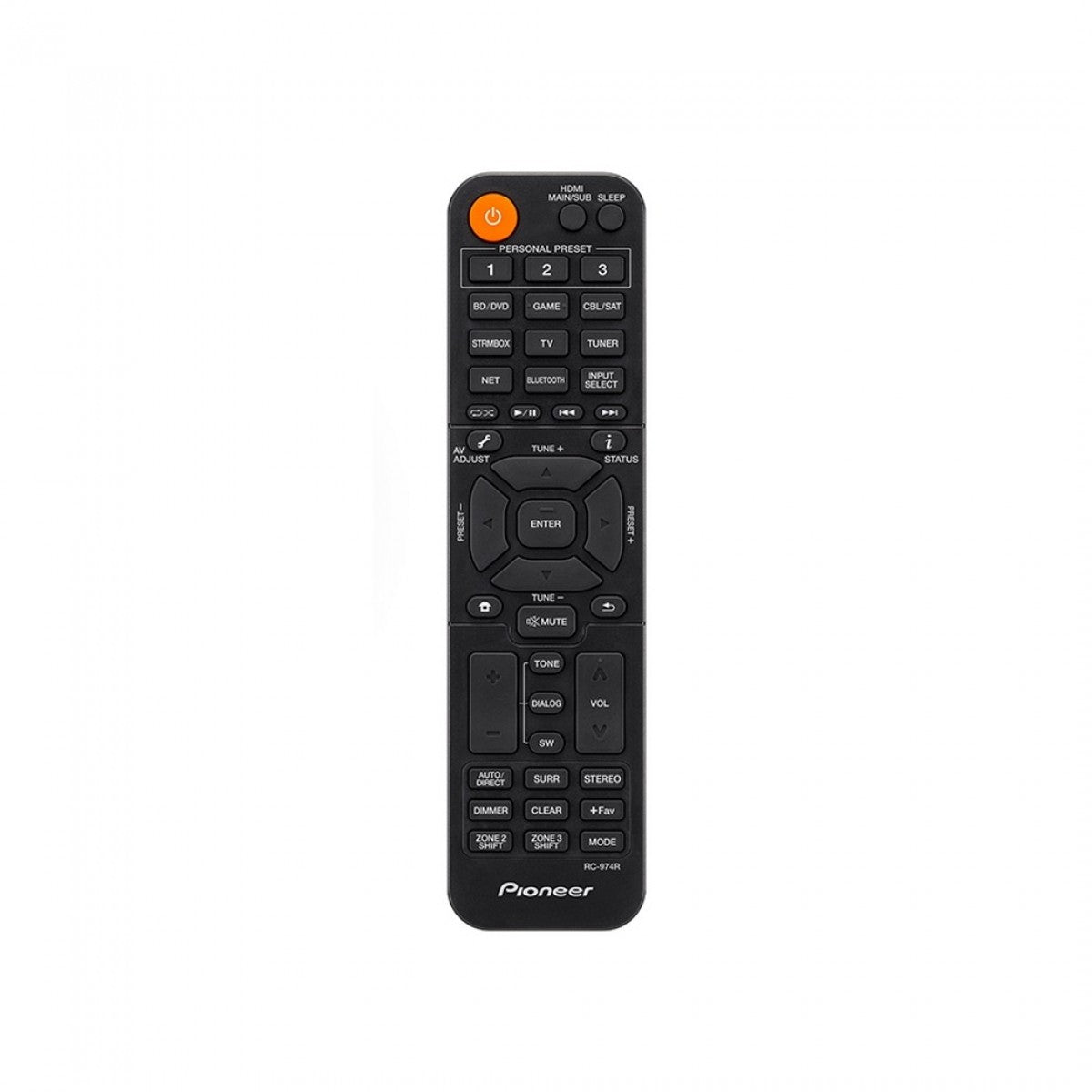

User-Friendly Simple Remote Control Yes

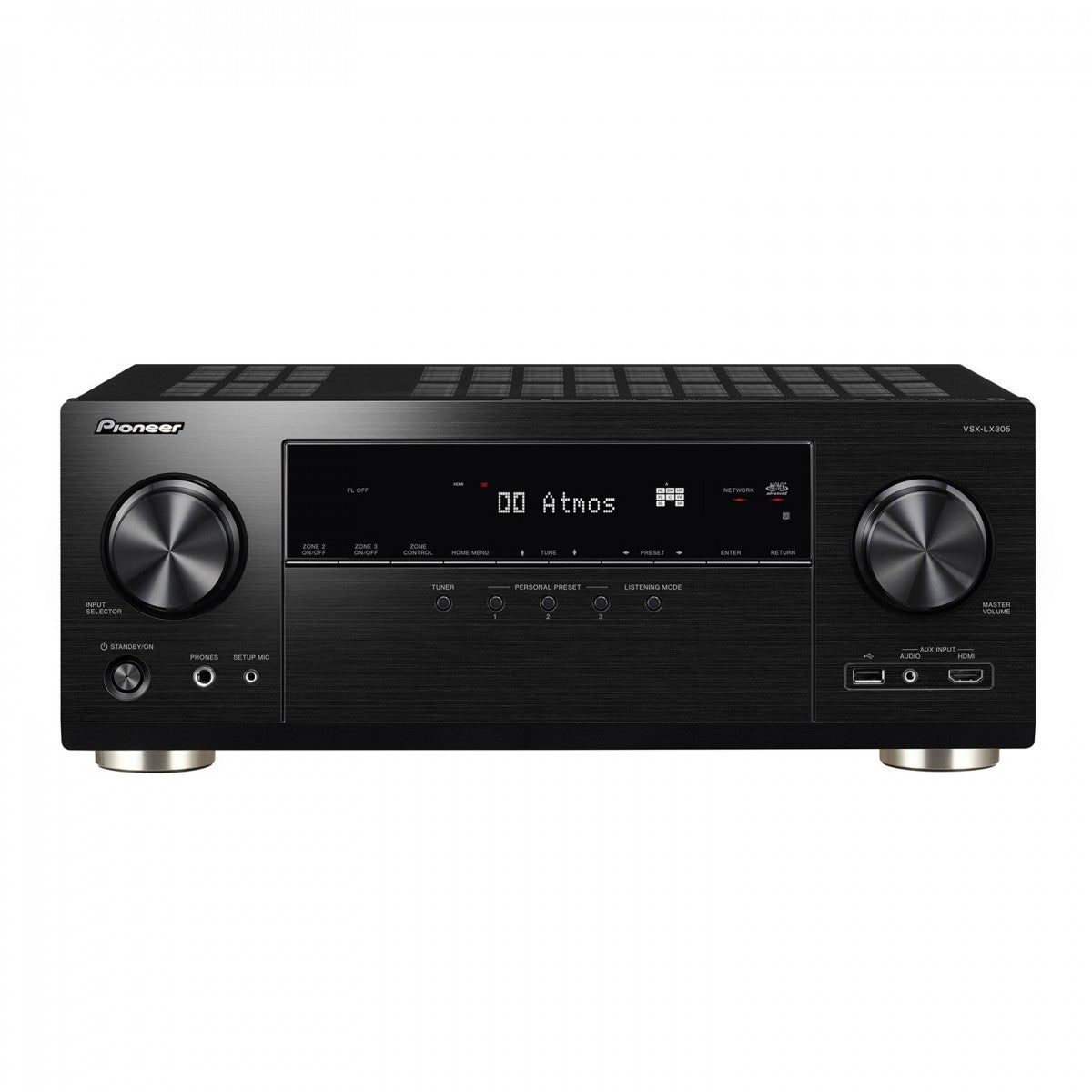

Front Terminals
HDMI 1 In Yes
USB 1 In for USB Drive Yes
MCACC/Dirac Live Web Setup MIC Yes
Audio 1 In Yes (2ch)
Phones 1 Out Yes

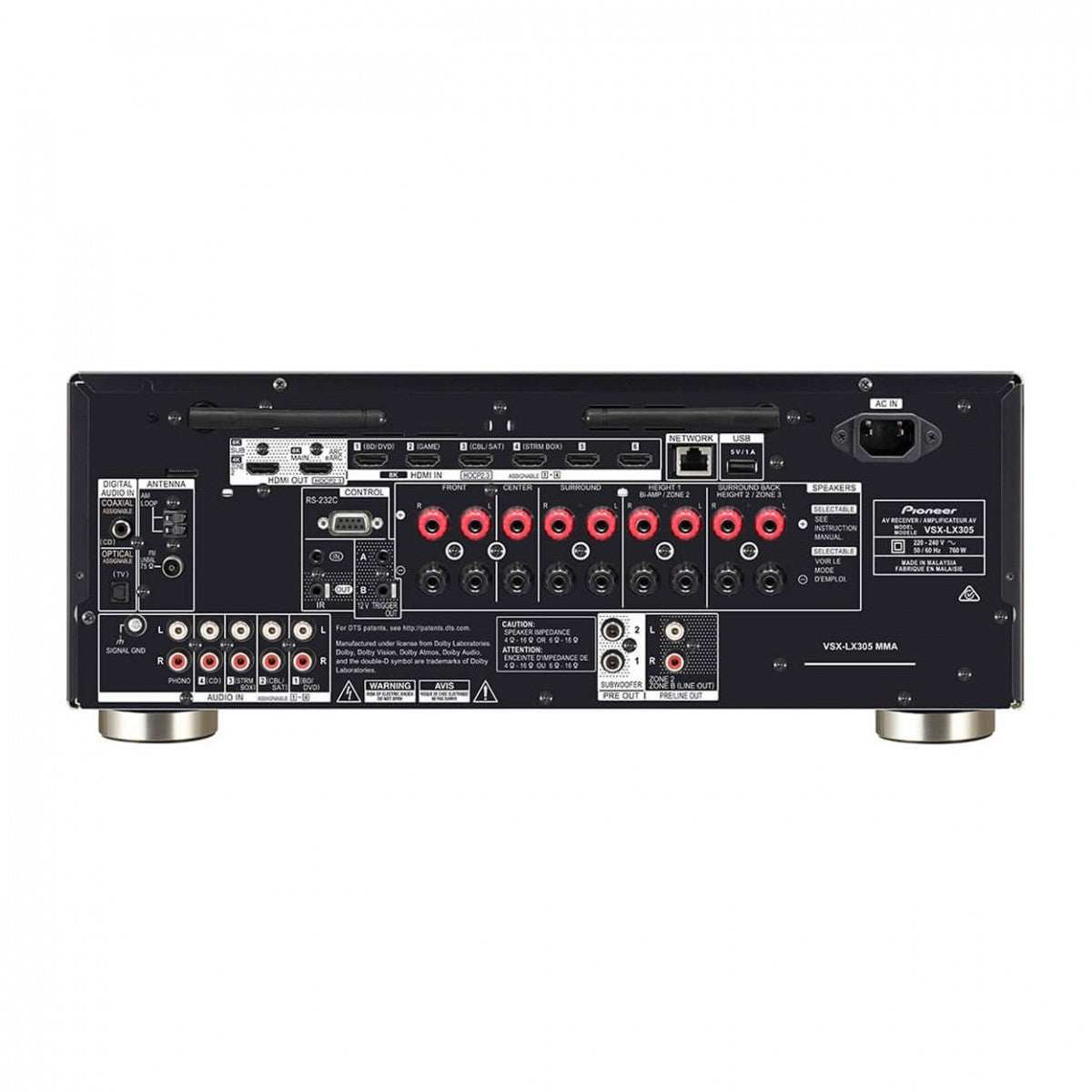

Rear Terminals
HDMI 6 In 4 Assignable
HDMI 2 Out 1 for MAIN, 1 for SUB/ZONE 2
Ethernet 1 In Yes
USB 1 In for USB Drive Yes
Audio 4 In Assignable
Phono (MM) 1 In Yes
Digital Coaxial 1 In Yes
Digital Optical 1 In Yes
Subwoofer 2 Pre Out Yes
ZONE 2 Pre/Line Out/ZONE B Line Out Yes
Speaker 9 ch Out FRONT, CENTER, SURROUND, HEIGHT 1/Bi-AMP/ZONE 2, SURROUND BACK/HEIGHT 2/ZONE 3
IR 1 In/1 Out Yes
12 V Trigger 2 Out Yes
RS-232C Yes
FM/AM Antenna Yes
Specifications
Power Requirements AC 120 V, 60 Hz
Power Consumption/Standby 750 W/0.1 W
Dimensions 17-1/8 x 6-13/16 x 14-9/16 inches (435 x 173 x 370.5 mm)
Weight 22.9 lbs. (10.4 kg)
Carton Dimensions 21-1/8 x 10-7/16 x 18-1/16 inches (536 x 265 x 458 mm)
Carton Included Weight 29.8 lbs. (13.5 kg)
