Jamo S 809 HCS 5.0 Home Cinema System Black
This comprehensive system comprises 1 x S 809 tower speakers pair, 1 x S801 surround sound speakers pair, and 1 x S81 center channel speaker, offering immersive audio in a sleek package.
Introducing the Jamo S 809 HCS 5.0 Home Cinema System, Jamo’s premier 5.0 setup designed for an immersive audio experience. The centerpiece includes dual S 809 Dolby Atmos ready tower speakers, providing an effortless transition to the captivating overhead effects of the latest home theater innovation whenever you decide to upgrade.
COMPACT YET ROBUST PERFORMANCE
Featuring a front-firing tube port, this system offers versatility in placement, allowing seamless integration into cabinets or against walls while delivering an enhanced and pristine bass response. The Studio 8 WaveGuide technology precisely focuses on high frequencies for an impactful and vibrant sound experience.
ELEGANT MODERN DESIGN
Crafted with a minimalist front baffle design, the fully magnetic grilles ensure a clean appearance without visible mounting holds or push pins. The large woven pattern linen grilles, available in heather gray for white models and charcoal gray for black or walnut finishes, add visual allure with a rich texture. Wood grain accents around the tweeters, bases, and feet provide a handcrafted and natural aesthetic. The cabinet's 3" taper accentuates the sleek design of the Studio 8 speakers.
READY FOR DOLBY ATMOS
Designed to deliver immersive sound from every direction, including overhead, the Dolby Atmos-ready speakers ensure astounding clarity, detail, and depth, enveloping any room with exceptional audio quality.
S 8 ATM ATMOS MODULE
The Dolby Atmos topper features metal feet that ingeniously align with patent-pending integrated conductive metal contacts on compatible Tower and Bookshelf speakers, maintaining a clean design on the Topper's rear, free from visible inputs or wires.
Technical Specifications
S 809
|
Frequency Response:
|
37Hz - 26kHz (± 3dB)
|
|
Sensitivity:
|
90dB (2.83V @ 1m)
|
|
Power Handling:
|
120W / 240W (peak)
|
|
Impedance:
|
8Ω
|
|
High Frequency Driver:
|
25mm (1”) Soft Dome Tweeter
|
|
Low Frequency Driver:
|
3 x 127mm (5”) Polyfibre Woofers
|
|
Speaker Enclosure:
|
MDF
|
|
Inputs:
|
Single Binding Posts (Main / Height)
|
|
Top-Contacts:
|
Dolby Atmos-ready with S 8 ATM speaker connected
|
|
Finishes:
|
Black or White
|
|
Dimensions (H x W x D):
|
1042 x 191 x 252mm
|
S 801
|
Frequency Response:
|
76Hz - 26kHz (± 3dB)
|
|
Sensitivity:
|
85dB (2.83V @ 1m)
|
|
Power Handling:
|
60W / 120W (peak)
|
|
Impedance:
|
8Ω
|
|
High Frequency Driver:
|
25mm (1”) Soft Dome Tweeter
|
|
Low Frequency Driver:
|
102mm (4”) Polyfibre Woofers
|
|
Crossover:
|
2kHz
|
|
Speaker Enclosure:
|
MDF
|
|
Inputs:
|
Single Binding Posts
|
|
Finishes:
|
Black, White
|
|
Dimensions (H x W x D):
|
285 x 156 x 163mm
|

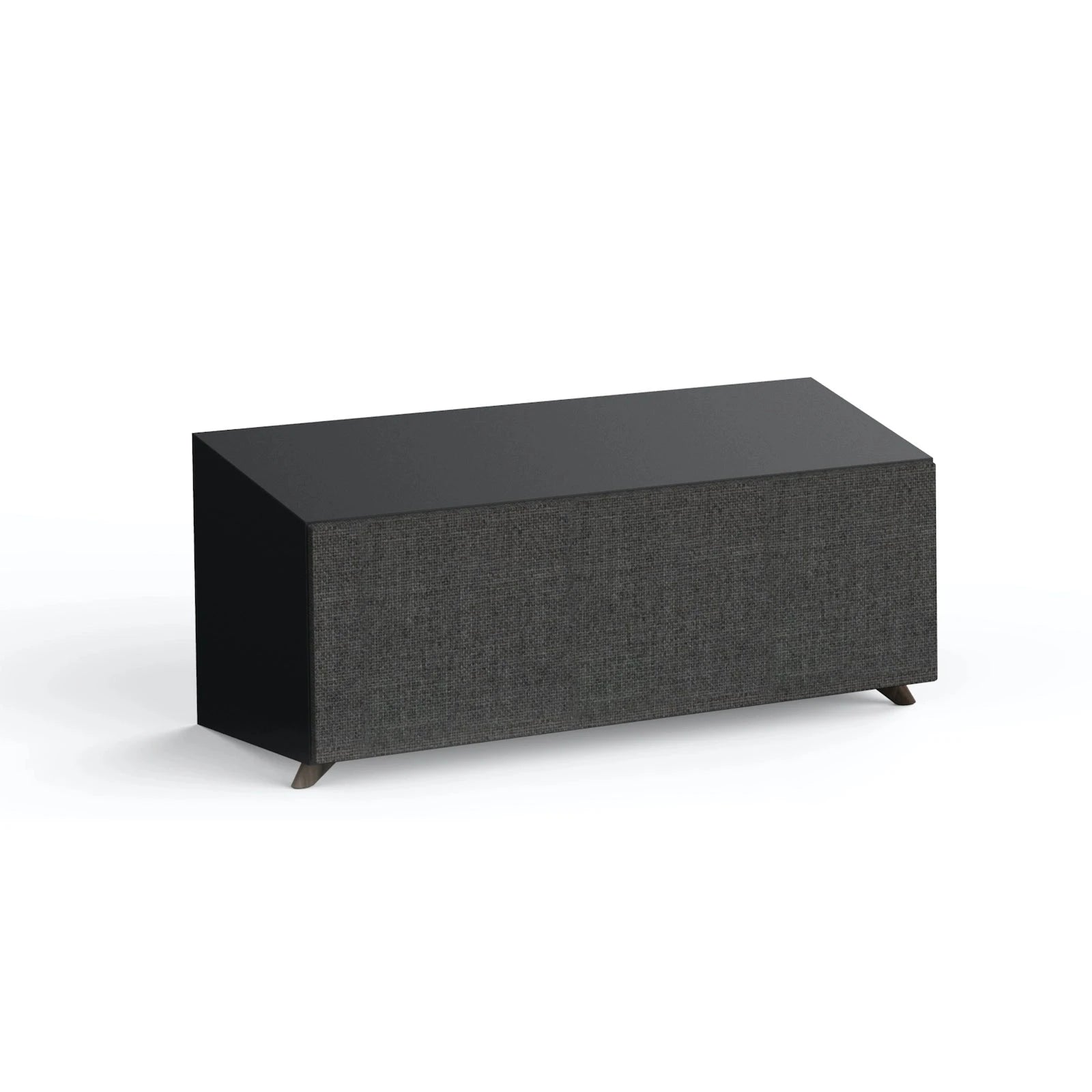

S 81 CEN
| Frequency Response: |
71Hz - 26kHz (± 3dB) |
| Sensitivity: |
86dB (2.83V @ 1m) |
| Power Handling: |
60W / 240W (peak) |
| Impedance: |
8Ω |
| High Frequency Driver: |
25mm (1”) Soft Dome Tweeter |
| Low Frequency Driver: |
2 x 102mm (4”) Polyfibre Woofer |
| Crossover: |
2kHz |
| Speaker Enclosure: |
MDF |
| Inputs: |
Single Binding Posts |
| Finishes: |
Black, White |
| Dimensions (H x W x D): |
184 x 435 x 220mm |
