Arcam SA35 Radia Series Streaming Integrated Amplifier - Clearance
Brand New Unused Amplifier, Complete with All Accessories, Outer box bit scruffy - Full 2 Year Warranty
"The Arcam SA35 is an excellent hi-fi solution delivering a wide range of streaming smarts, and impressive amplification in one seriously attractive package"- What Hi-Fi? – 5 Star review.
The ARCAM SA35 is the all-in-one streaming system for the discerning music lover. It includes hard-won technologies for preserving the most delicate sounds and reproducing music with all its subtleties, nuances and excitement intact. Expertly designed in Cambridge UK, it includes an all-new digital audio and streaming platform, new linear toroidal power supply design, new user interface and new app.

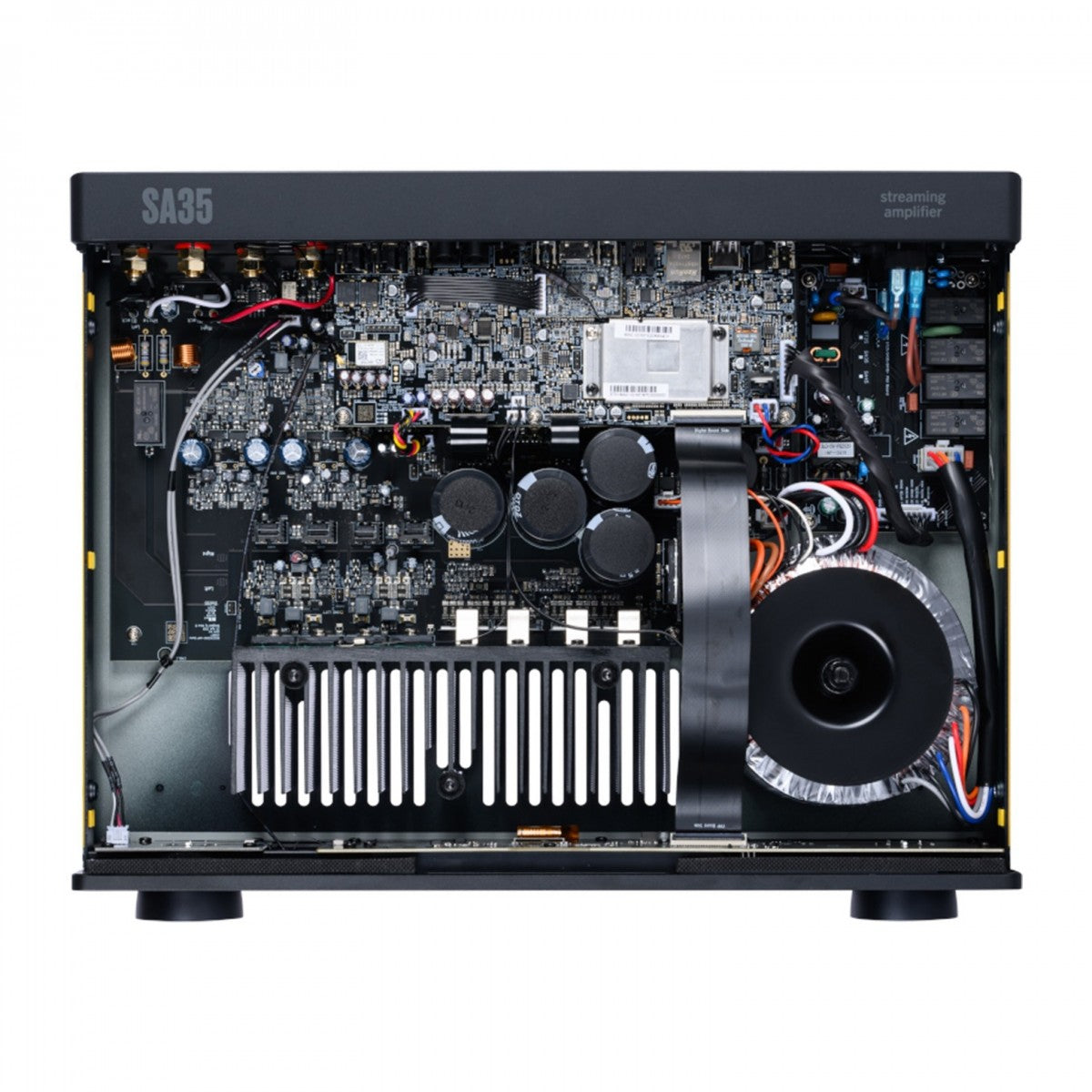

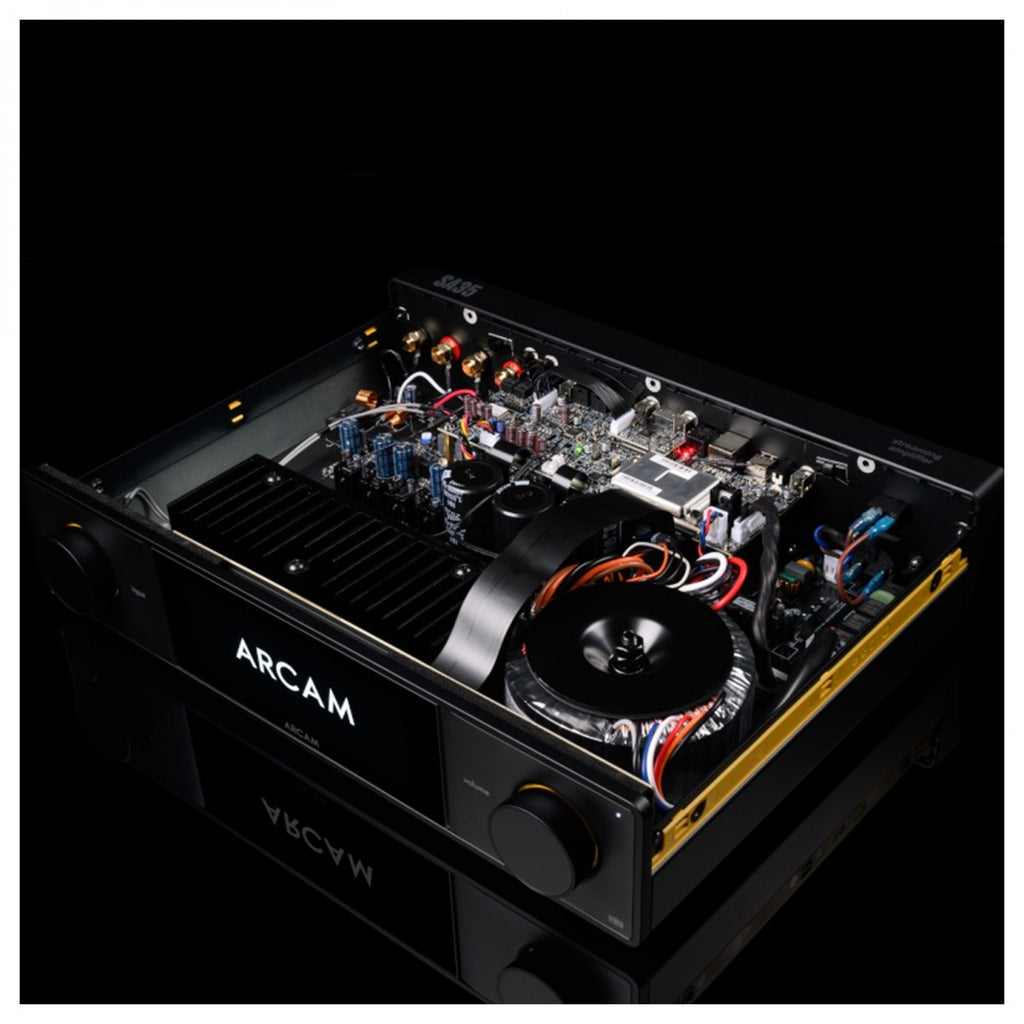

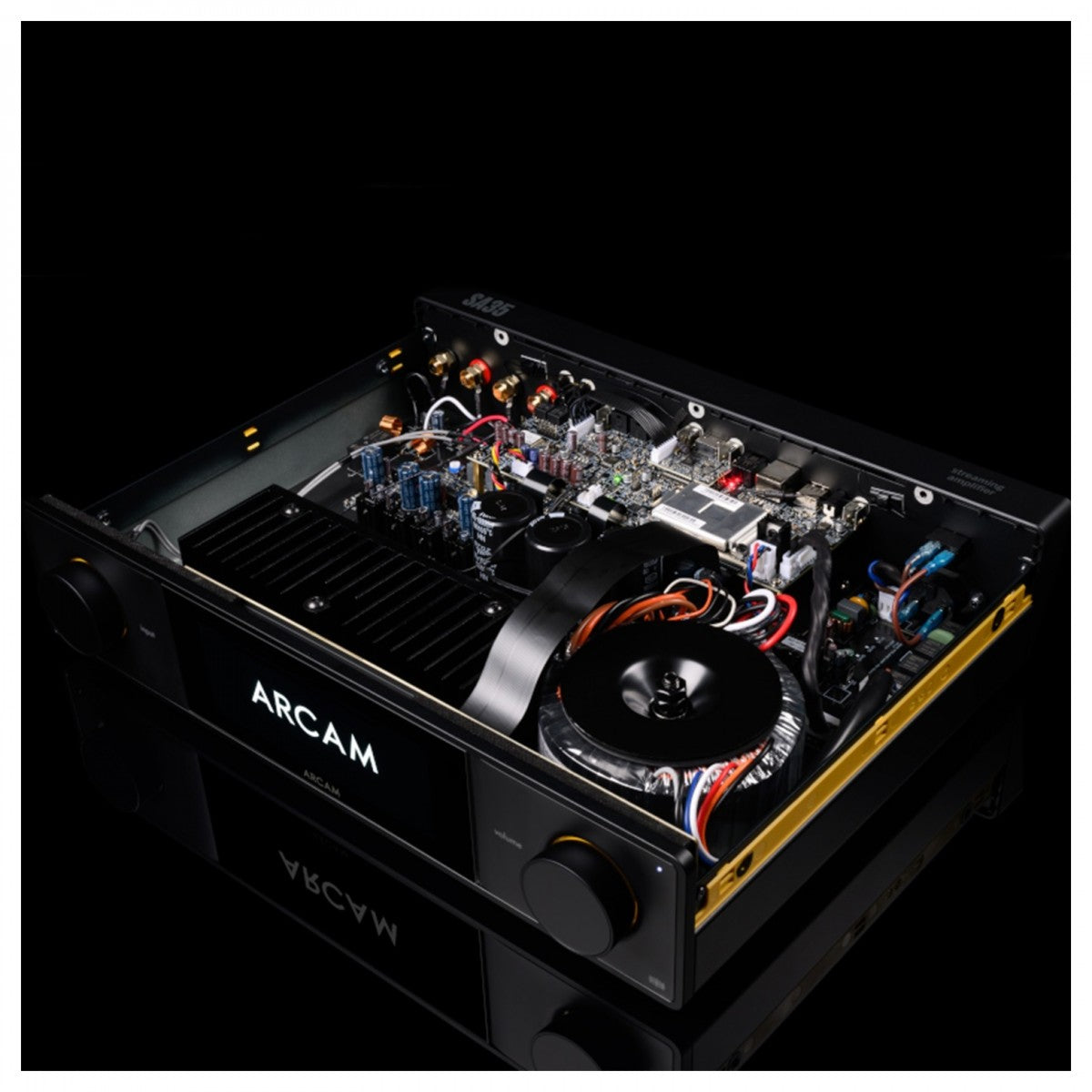

Exquisite sound quality has been achieved through thoughtful engineering of a new 6-layer digital audio and streaming platform which includes a ground plane through the entire board to keep noise and interference away from the sensitive audio components. These components include the latest Hyperstream iV DAC topology from ESS, in a balanced configuration with advanced Jitter elimination. Sound quality is enhanced further with a new linear toroidal transformer power supply design that drives the entirety of the internal operation with lower noise, and a switching supply that only operates for peak efficiency when in standby.
Building off decades of innovation, our 5th generation Class G amplifier design is meticulously crafted so you can expect the best sound quality and dynamics from what has always been a better sounding, and more efficient Class of amplifier. New components and materials have been painstakingly analysed and reviewed to ensure uncompromising sound performance.

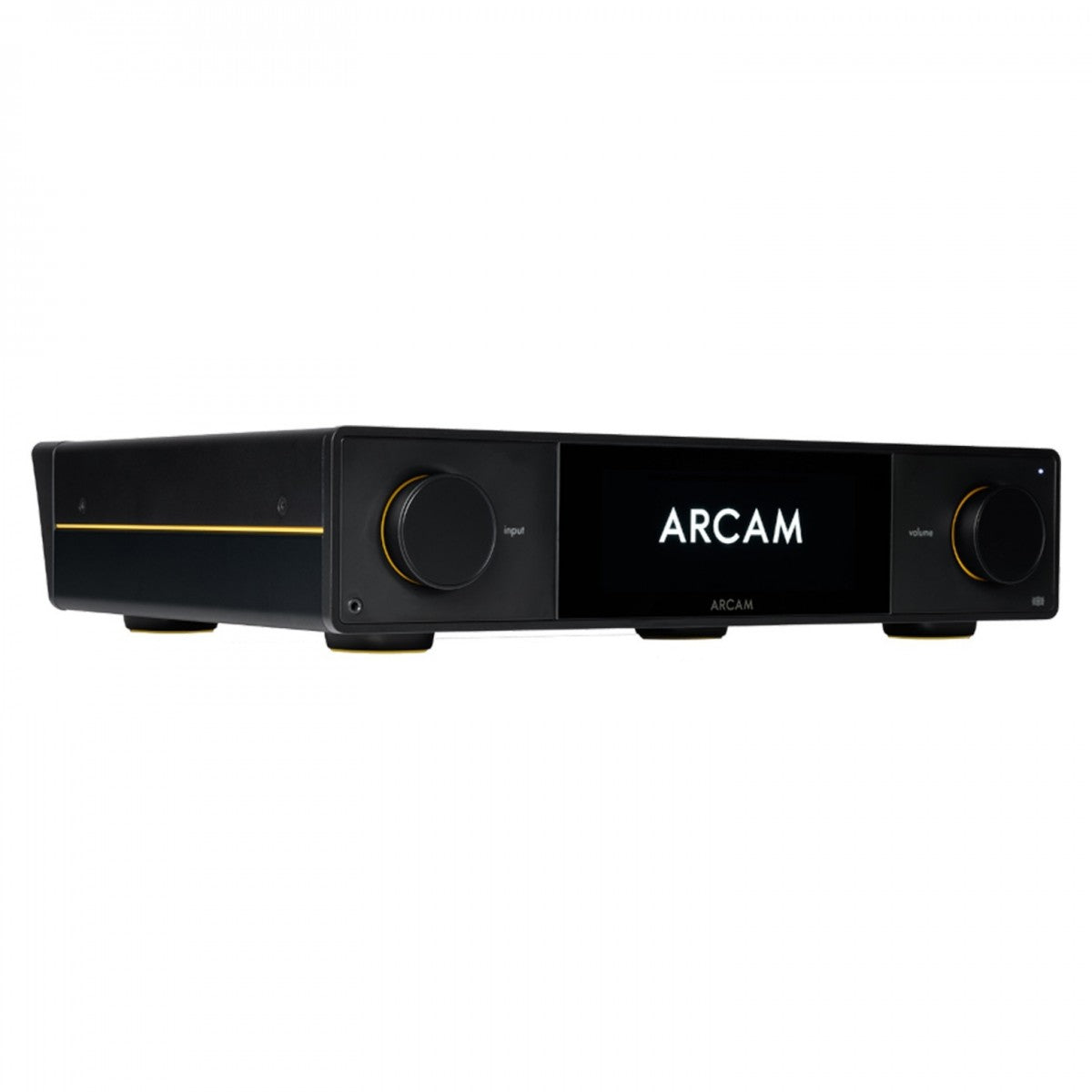

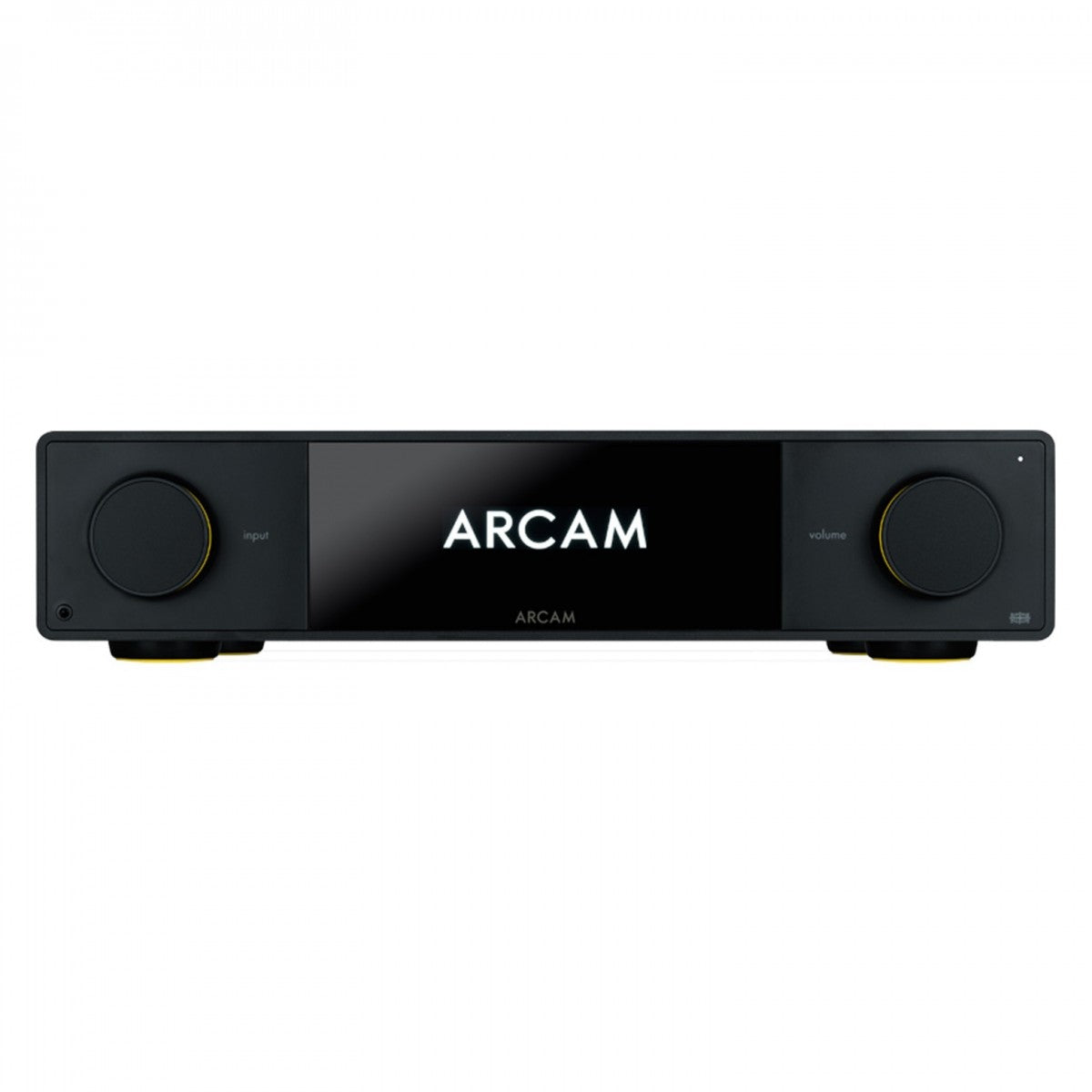

Up front, the SA35 features a new, bonded 6.5" high-resolution display to show album artwork and metadata which is clearly legible from the comfort of your preferred armchair. For playback, an inclusive feature set supports most smart phones and tablets, as well as popular streaming services. Connecting the SA35 to your home network with Wi-Fi is quick and straightforward with our ARCAM Radia App. Once connected, enjoy instant playback using Apple Airplay, Google Cast, Spotify Connect, Tidal Connect, Qobuz Connect, and Roon (coming soon).
The ARCAM SA35 is the ultimate high resolution audio solution. With outputs for subwoofers, along with Dirac Live Room Correction, the SA35 has the flexibility to deliver exceptional sound, in any room, with your choice of speakers.
Features
- All new, ultra High-Resolution Streaming Platform to deliver on sound quality and user experience.
- ARCAM Class G Amplification with 2x 120W of ultra-low distortion power.
- MM & MC Phono inputs.
- HDMI eARC input.
- Dual Subwoofer Outputs and Dirac Live Room Correction.
- High-resolution display for clearly visible album artwork and metadata.
- Supports Apple Airplay, Chromecast, Spotify Connect and Tidal Connect.
- Setup with ARCAM Radia App for presets, Internet Radio and Podcasts.
- Supports up to 32-bit / 768 kHz Hi-res audio.
- Roon Ready (after launch).
- Plastic Free Packaging.
Specifications
Continuous power output (0.5% THD), per channel
2 channels driven, 20Hz . 20kHz, 8Ω: 120W
2 channels driven, 1kHz, 4Ω: 220W
Harmonic distortion, 80% power, 8Ω at 1kHz: 0.002%
Analogue Inputs
Number of inputs: 3 (RCA pairs)
Phono Inputs: MM and MC
Frequency response: 20Hz.20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 1V input): 106dB
Digital Inputs
Supported Streaming media: FLAC, WAV (LPCM), AAC, ALAC, AIFF, DSD (up to 1024), MP3, MP4, OGG, WMA
Supported Streaming Bit depth: 16, 24, 32
Supported Streaming sample rates (kHz): Up to 768 kHz
Gapless Playback: Yes
Digital Audio Inputs: 1x HDMI ARC, 2x Coaxial (RCA), 2x Optical (Toslink)
Supported Digital input Bit depth: 16, 24
Supported Digital input sample rates (kHz): Up to 192 kHz
Frequency response (filter 1): 20Hz.20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS): 110dB
Wireless Specifications
Bluetooth Profile 5.2; A2DP Sink/Source, AVRCP, BLE, aptX, aptX HD, aptX Adaptive, AAC
Bluetooth Transmitter Frequency and Power: 2,402 MHz to 2,480 MHz: <13dBm
Wi-Fi Network: IEEE 8002.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi Transmitter Frequency Range and Power:
2400-2483.5 MHz (USA 11 Channels, Europe and Others 13 Channels) <20dBm
5G Wi-Fi Transmitter Frequency Range and Power:
5150-5250 MHz <23dBm, 5250-5350 MHz & 5470-5725 MHz <20dBm, 5725-5850 MHz <14dBm
General
Mains voltage: 100V or 110–120V or 220–240V, 50–60Hz
Power consumption (maximum): 800W
Power consumption (standby): <0.5W
Dimensions W x D (including speaker terminals) x H (including feet):
431 x 344 x 98mm
Weight (net): 12 kg
Weight (packed): 14 kg
Supplied accessories:
Mains lead(s)

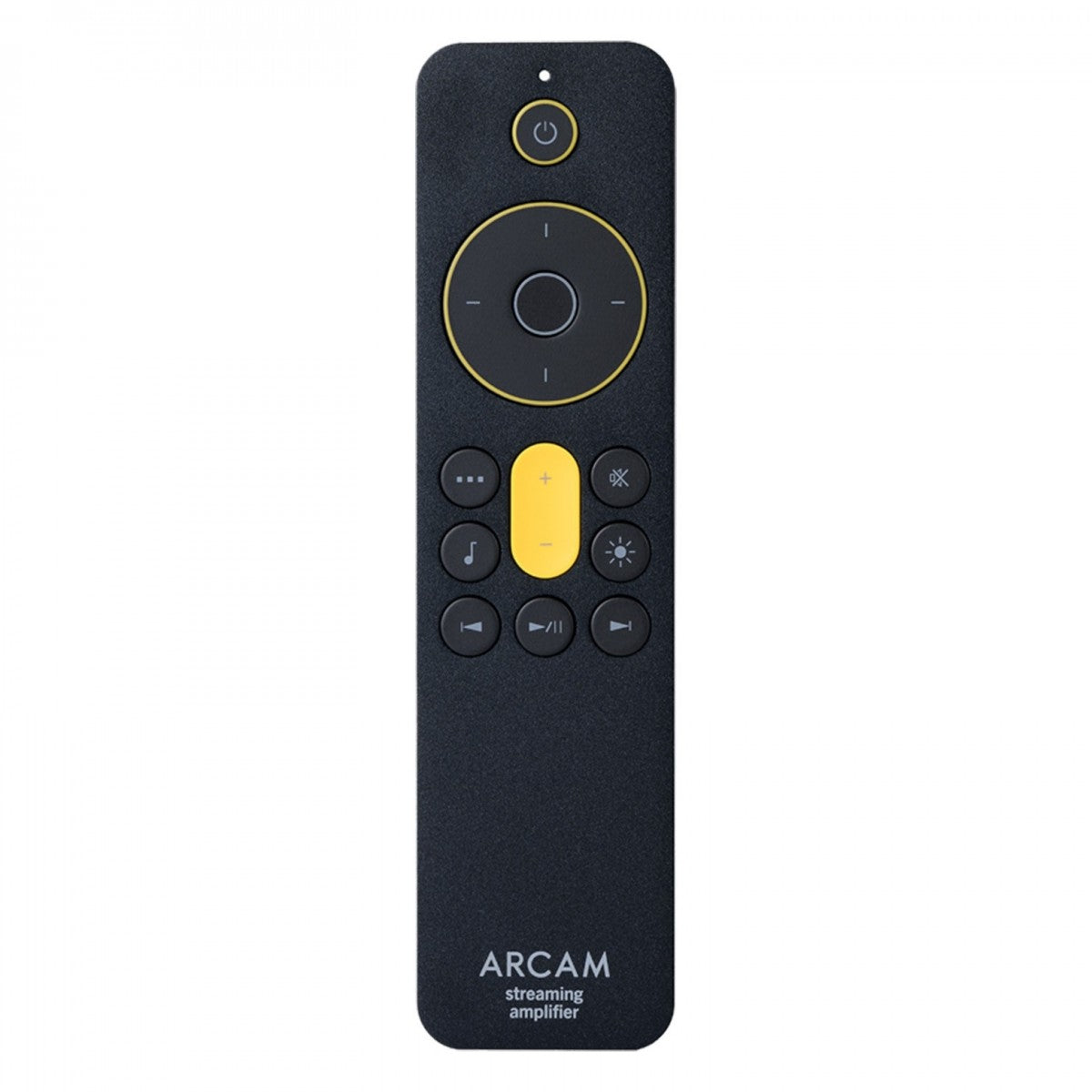

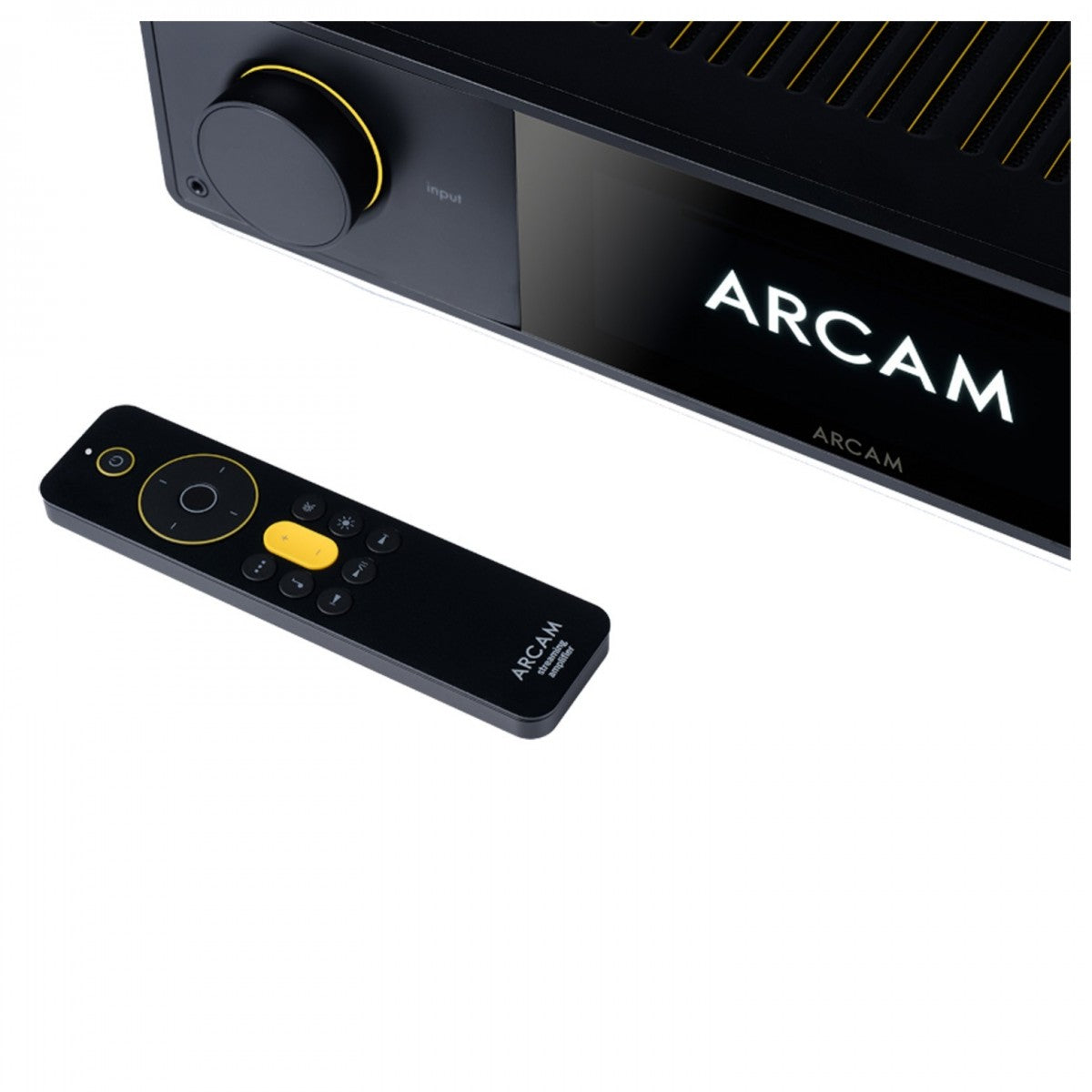

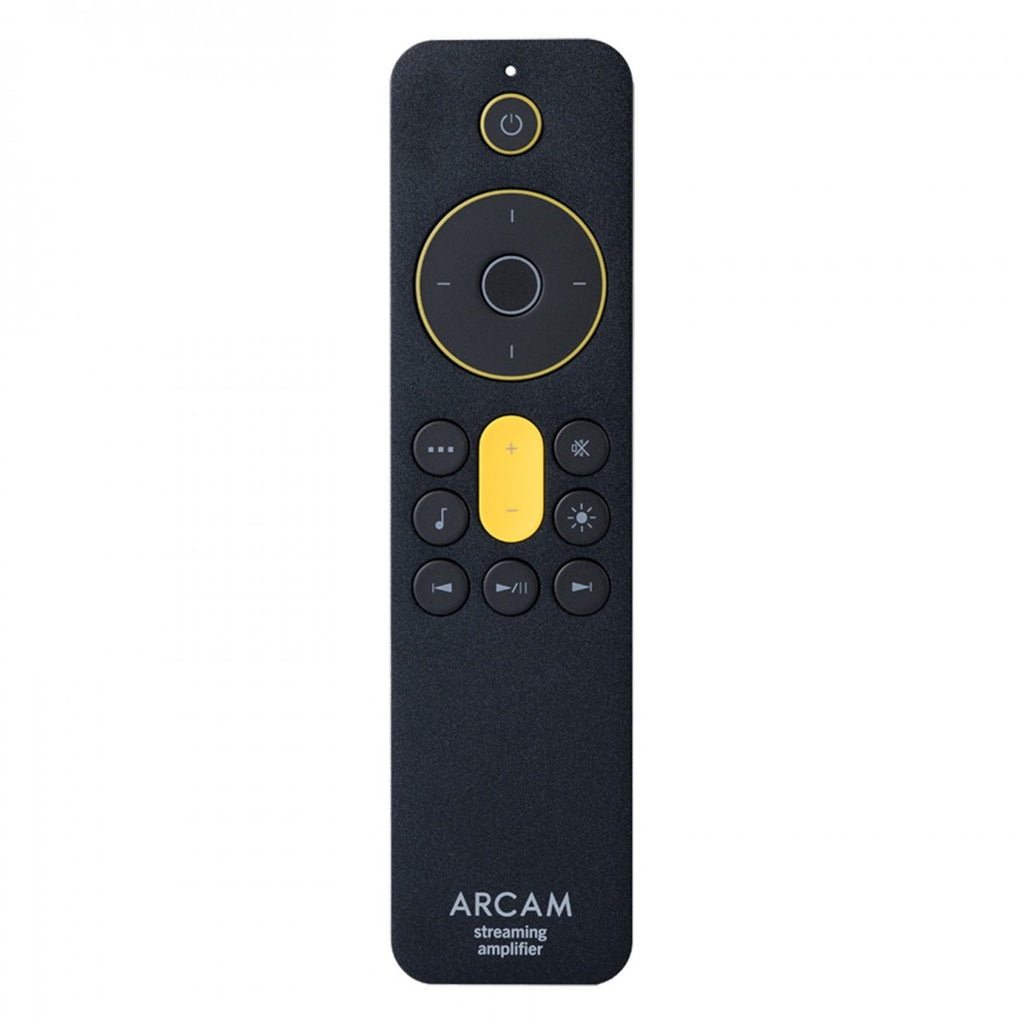

Remote control with 2 x AAA batteries
Measurement Microphone
5m USB Cable
Quick Start Guide
Important Safety Instructions
Arcam SA35 Radia Integrated Amp Specs Sheet
