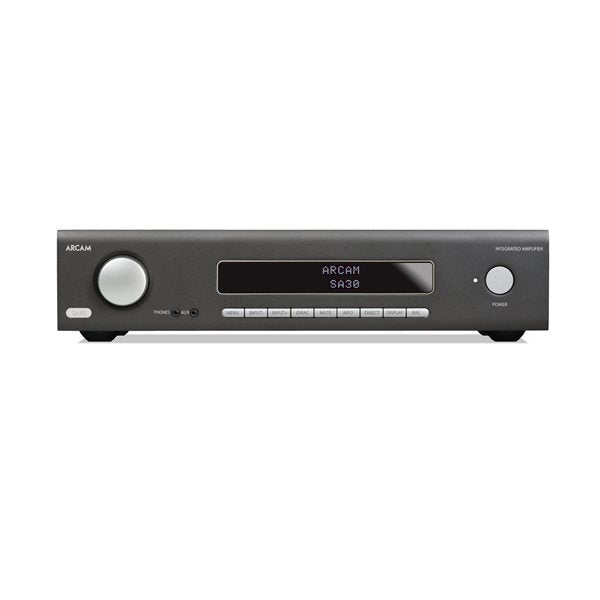

Arcam SA30 Class G Intelligent Integrated Amplifier
Designed with all the latest cutting-edge features, the SA30 - Class G is expertly implemented and, the highest resolution of audio support is presented.
Streaming is available with a mobile using the native app of choice via Apple AirPlay2 or Google Chromecast.
Features
Class G amplification for impeccable sound and efficiency
120W of power per channel into 8Ω, 220W into 4Ω
5 analogue inputs including switchable MM/MC PHONO input
4 digital inputs
1 ARC input
GoogleCast, AirPlay 2, uPnP Streamer
Roon endpoint
MQA supported
3 Dirac EQ profiles (input assignable)
32-bit DAC,Sabre ESS9038K2M
Full I/P control including Control4 and Crestron
Total harmonic distortion + noise = 0.002%
Specifications
Frequency Response 20Hz – 20kHz ± 1dB
Nominal Sensitivity 1V
Input Impedance 10kΩ
Power output both channels driven 120W into 8Ω, 220W into 4Ω
Maximum Input 6Vrms
Signal/Noise ratio (A-wtd) 50W, ref. 1V input 120dB
Mains Voltage 110-120V or 220-240V, 50-60Hz
Maximum Power Consumption 800W
Dimensions W x H x D (including feet, control knob and speaker terminals) 433x100x323mm
Weight 12kg
Packaged Weight 14kg
