Specification

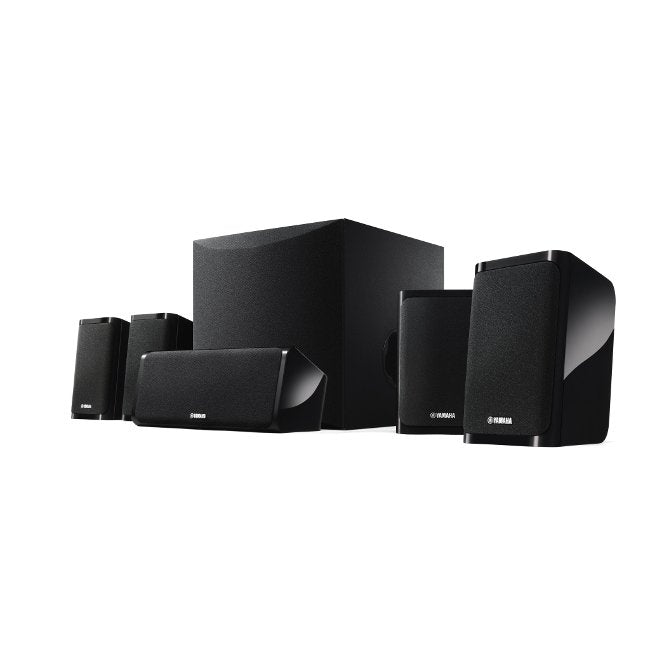

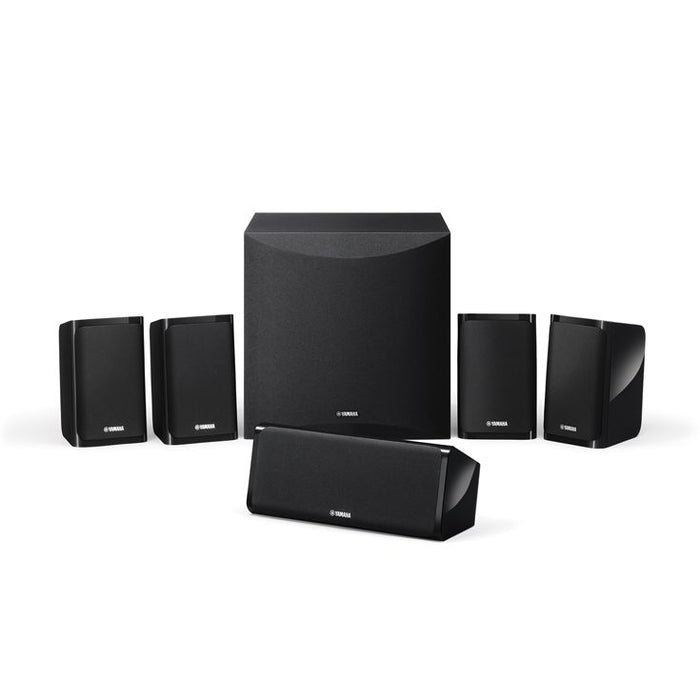

Package Speaker
Channel: 5.1
Speaker System
System Frequency Response: 28 Hz–25 kHz
Impedance: 6 ohms (without subwoofer)
Front Speaker
Type: Full-range bass-reflex
Driver: 7 cm (2-3/4”) full-range cone
Nominal Input Power: 30 W
Maximum Input Power: 100 W
Sensitivity: 83 dB / 2.83 V / 1 m
Dimensions (W x H x D): 112 x 176 x 116 mm; 4-3/8” x 6-7/8” x 4-5/8”
Weight: 0.59 kg / unit; 1.3 lbs. / unit
Center Speaker
Type: Full-range acoustic suspension
Driver: 7 cm (2-3/4”) full-range cone
Nominal Input Power: 30 W
Maximum Input Power: 100 W
Sensitivity: 84 dB / 2.83 V / 1 m
Dimensions (W x H x D): 276 x 111 x 118 mm; 10-7/8” x 4-3/8” x 4-5/8”
Weight: 0.73 kg; 1.61 lbs.
Surround Speaker
Type: Full-range bass-reflex
Driver: 7 cm (2-3/4”) full-range cone
Nominal Input Power: 30 W
Maximum Input Power: 100 W
Sensitivity: 83 dB / 2.83 V / 1 m
Dimensions (W x H x D): 112 x 176 x 116 mm; 4-3/8” x 6-7/8” x 4-5/8”
Weight: 0.59 kg / unit; 1.3 lbs. / unit
Subwoofer
Type: Advanced YST II
Driver: 20 cm (8”) cone
Output Power: 50 W (5 ohms, 100 Hz, 10% THD)
Dynamic Power: 100 W (5 ohms)
Frequency Response: 28–200 Hz
Twisted Flare Port: Yes
Power Consumption: 40 W
Dimensions (W x H x D): 291 x 292 x 341 mm; 11-1/2” x 11-1/2” x 13-3/8”
Weight: 8.5 kg; 18.7 lbs
