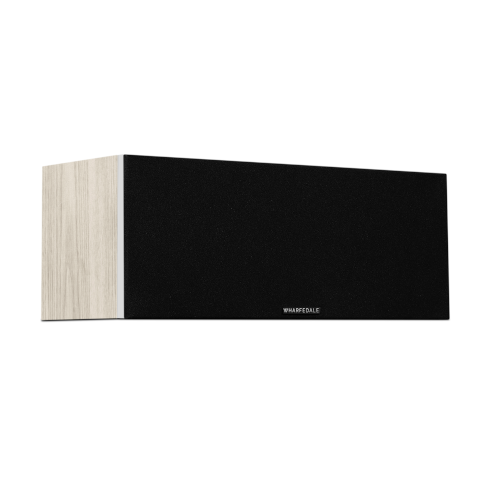

Wharfedale Diamond 12.C Speaker 2 way Centre Light Oak
The DIAMOND 12.C brings cinema-quality tangibility and vocal depth to the Wharfedale DIAMOND 12 series home theatre system.
Designed as the centrepiece of a surround sound system which perfectly complements the DIAMOND 12 series standmount (bookshelf) and floorstander models, the DIAMOND 12.C is compact, accurate and powerful.

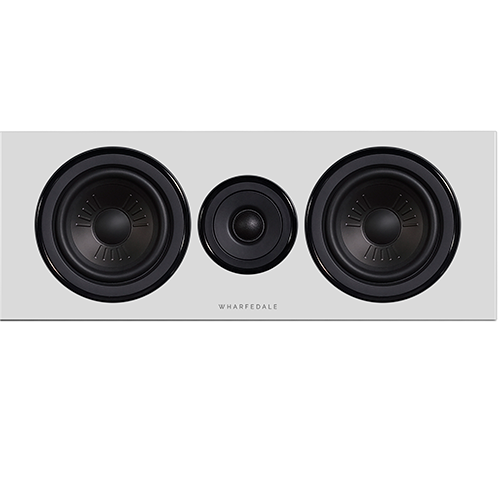

With its use of dual 130mm (5”) KlarityTM drivers for accurate, refined mid-range and bass frequencies, while it's 25mm dome tweeter produces open and smoothly extends high frequencies opening up the detail and depth for your movies, sports and music.
Klarity Affords focus
NEW Klarity cone material, which was made from a blend of polypropylene and mica adds sturdiness to the model to reduce flexing, to enable a lightweight cone with high rigidity, low colouration and lightning-fast response.
Low Colour and Expression
The Klarity cone is fitted with a low-damping surround, which gives both low colouration and expressive dynamics. As by simulating many different kinds of cone shapes and adding ribs, more support is provided, a falt curve was achieved without restoring to a high damping surround, thereby striking the ideal balance.
A Magnet Of Forces
A precision-made magnet system with an aluminium compensation ring to minimise the effect of variations in inductance as the voice coil travels. This contributes to a lack of distortion and intermodulation generated by the motor system.
Enclosure type closed-box system
Transducer complement 2-way
Bass driver 5"(130mm) advanced PP Cone x2
Treble driver 1"(25mm) Textile Dome
AV shield No
Sensitivity (2.83V @ 1m) 90dB
Recommended ampliﬁer power 20-120W
Peak SPL 96dB
Nominal impedance 8Ω Compatible
Minimum impedance 4.0Ω
Frequency response (+/-3dB) 90Hz ~ 20kHz
Bass extension (-6dB) 80Hz
Crossover frequency 2.2kHz
Cabinet Volume (in litres) 8.7L
Dimensions ( H x W x D ) 180 x 480 x (180+28) mm
Net weight 8.5kg/pcsWharfedale Diamond 12.C 2 way Centre Speaker Light Oak, centre, speaker, wharfedale, diamond, 12.C, 2 way Speaker, walnut Pearl, Wharfedale Diamond 12C 2 way Centre Speaker Walnut Pearl, Wharfedale Diamond 12 C 2 way Centre Speaker Walnut Pearl, light, oak, Wharfedale Diamond 12C 2 way Centre Speaker Light Oak, Wharfedale Diamond 12 C 2 way Centre Speaker Light Oak
