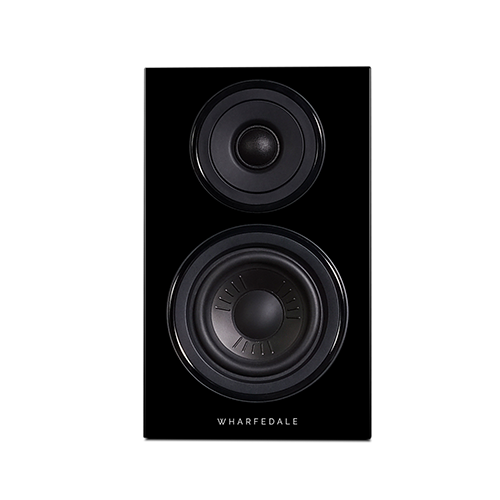

Wharfedale Diamond 12.0 Bookshelf speaker Compact 2 way with rear port (Pair) Walnut Pearl
This ultra-compact speaker belonging to the DIAMOND 12 series, the DIAMOND 12.0 model features all the same technology as its larger siblings however it is designed for a small-footprint hi-fi systems, or even as a high performance, compact satellite speaker in home theatre systems.
The DIAMOND 12.0 model also has a high performance 100mm (4) KlarityTM driver with a bass performance that surpasses its diminutive footprint, while superb 25mm(1) woven polyester dome tweeter brings open and smoothly extended high frequencies.
Klarity Affords focus
NEW Klarity cone material, which was made from a blend of polypropylene and mica adds sturdiness to the model to reduce flexing, to enable a lightweight cone with high rigidity, low colouration and lightning-fast response.
Low Colour and Expression
The Klarity cone is fitted with a low-damping surround, which gives both low colouration and expressive dynamics. As by simulating many different kinds of cone shapes and adding ribs, more support is provided, a falt curve was achieved without restoring to a high damping surround, thereby striking the ideal balance.
A Magnet Of Forces
A precision-made magnet system with an aluminium compensation ring to minimise the effect of variations in inductance as the voice coil travels. This contributes to a lack of distortion and intermodulation generated by the motor system.
Specification
Enclosure type bass reflex
Transducer complement 2-way
Bass driver 4"(100mm) advanced PP Cone
Treble driver 1"(25mm) Textile Dome
AV shield No
Sensitivity (2.83V @ 1m) 87dB
Recommended amplifier power 20-60W
Peak SPL 95dB
Nominal impedance 8Ω Compatible
Minimum impedance 4.0Ω
Frequency response (+/-3dB) 70Hz ~ 20kHz
Bass extension (-6dB) 65Hz
Crossover frequency 2.7kHz
Cabinet Volume (in litres) 4.4L
Dimensions ( H x W x D ) 265 x 160 x (200+28) mm
Net weight 5.1kg/pcs
