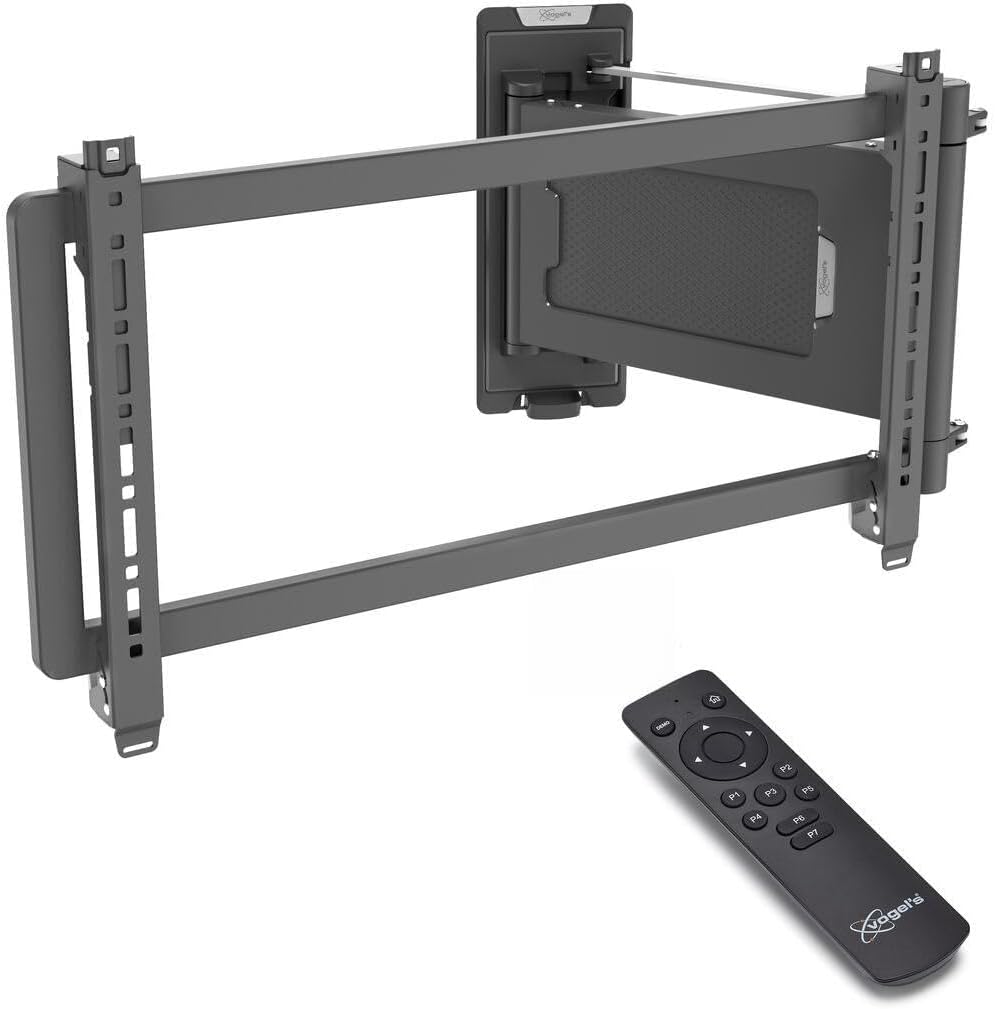

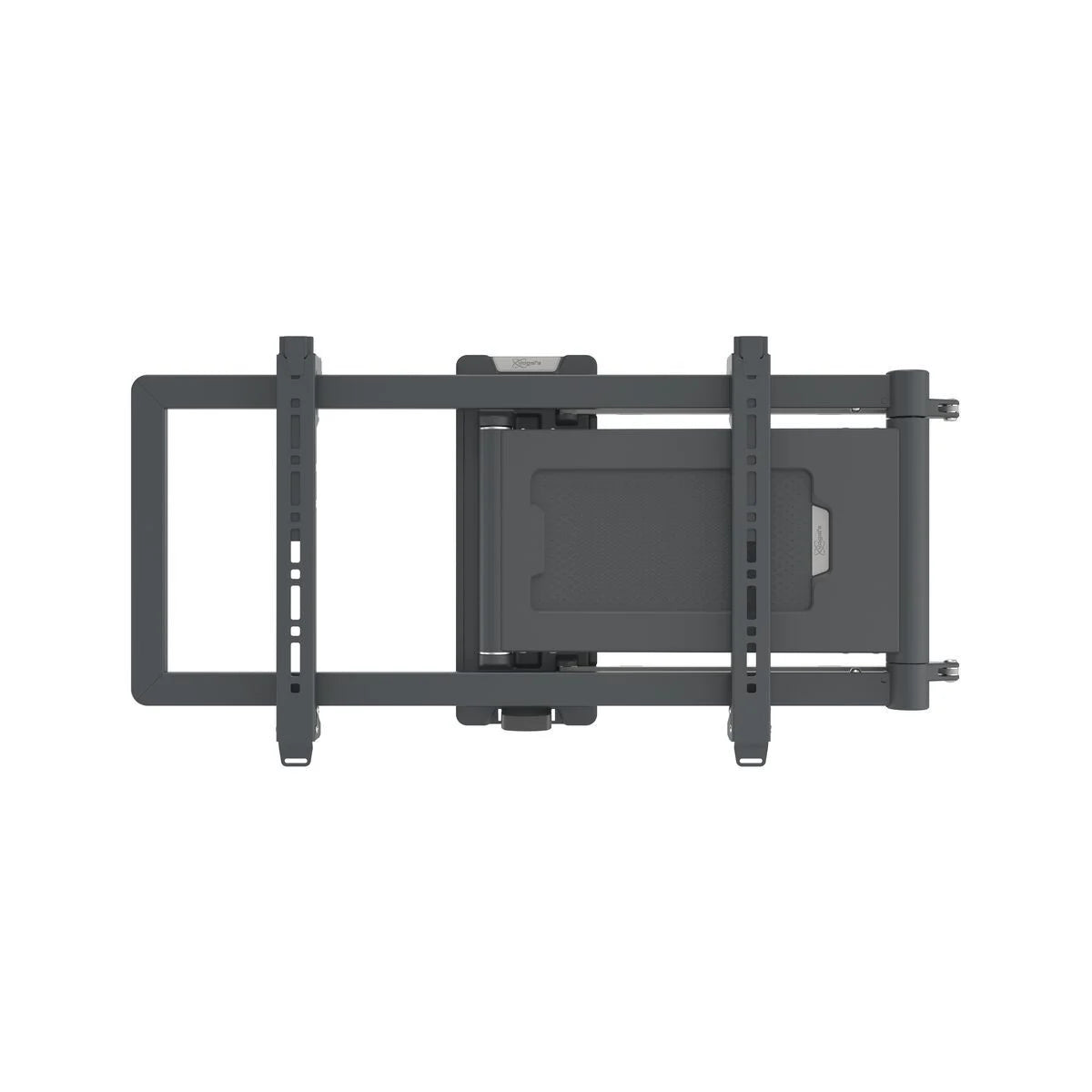

Vogel's TVME 5675 Elite Motorised TV Wall Bracket – 40–88 Inch TVs
The Vogel's TVME 5675 motorised TV wall bracket makes it easy to find your ideal viewing angle without manually moving your television. Designed for TVs from 40 to 88 inches and weighing up to 45kg, this premium electric TV wall mount swivels your screen automatically when you switch your TV on and returns it neatly towards the wall when switched off.
Ideal for corner installations and open-plan living spaces, the TVME 5675 offers a swivel range of up to 85° in your chosen direction. Its motorised movement is particularly useful for large, slim OLED, QLED and Mini-LED televisions, allowing you to adjust your viewing position without putting pressure on the screen.

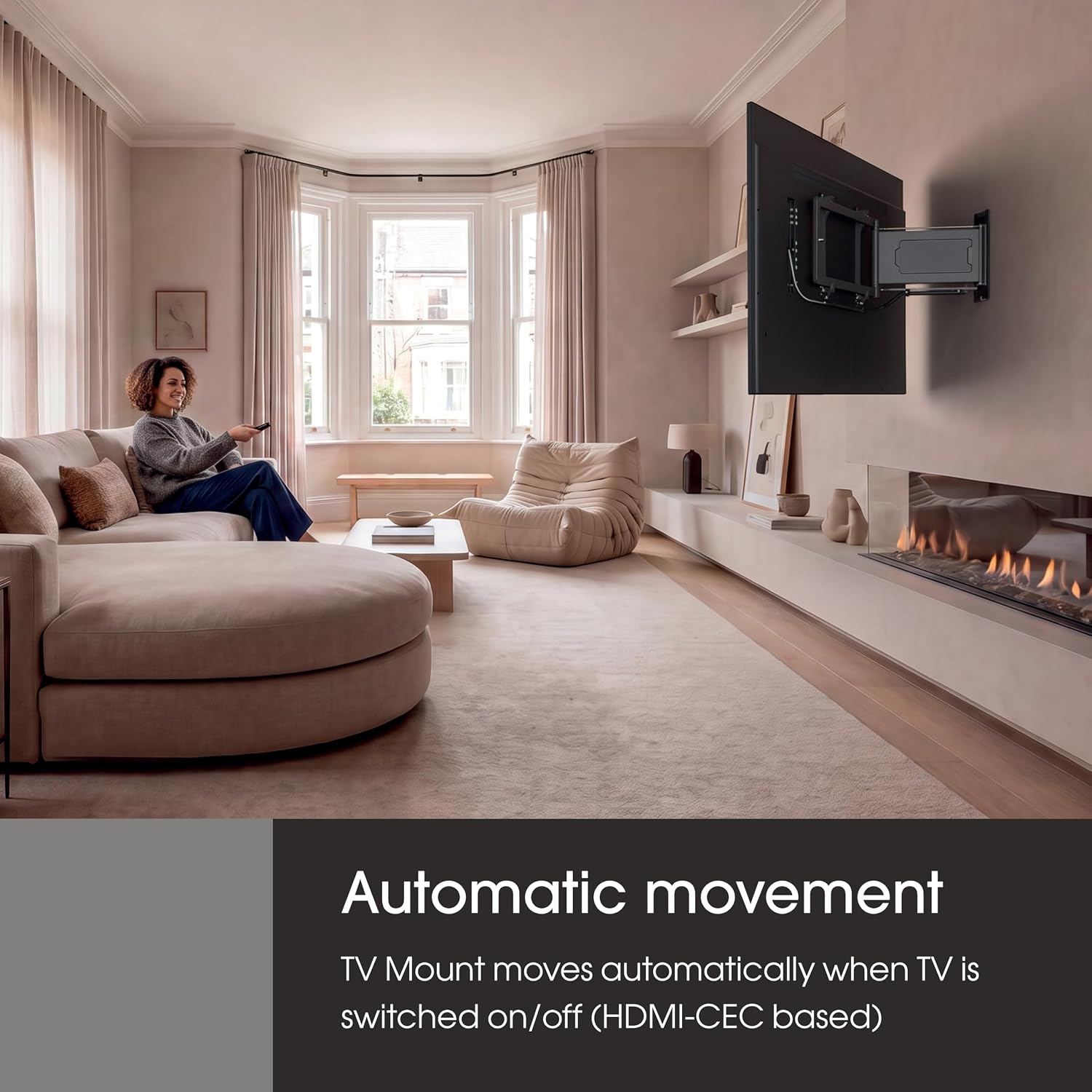

Automatic Motorised Movement
With HDMI-CEC support, the MotionMount can move your television to your preferred viewing position when switched on and return it towards the wall when switched off. This helps keep your TV neatly positioned when it isn't in use, without the need for manual adjustment.
Flexible Control Options
Control the motorised wall bracket using the supplied remote control, the MotionMount app or Siri Shortcuts voice commands. You can save up to seven preferred viewing positions, making it simple to switch between different seating areas and viewing angles.

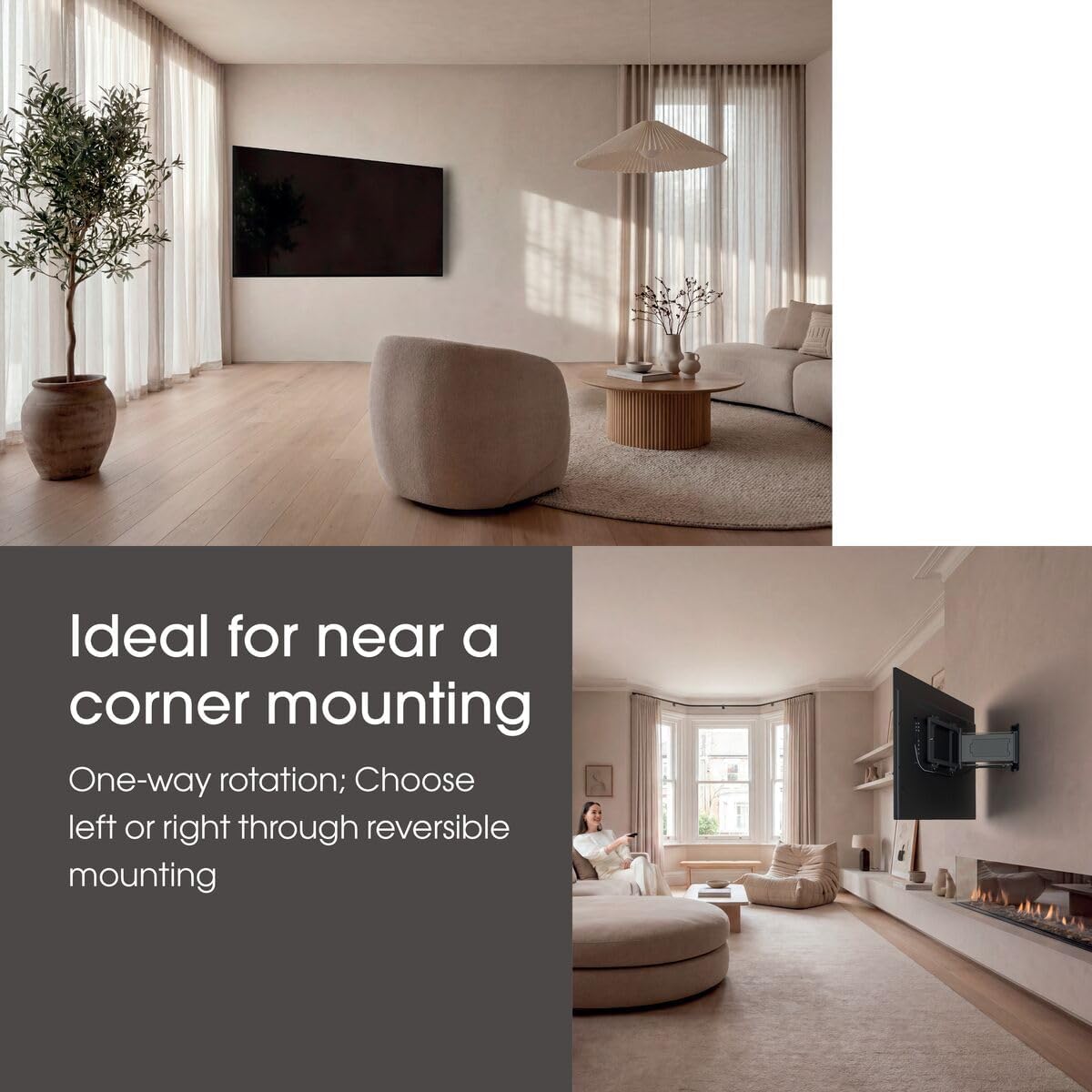

Single-Turn Swivel for Corner Mounting

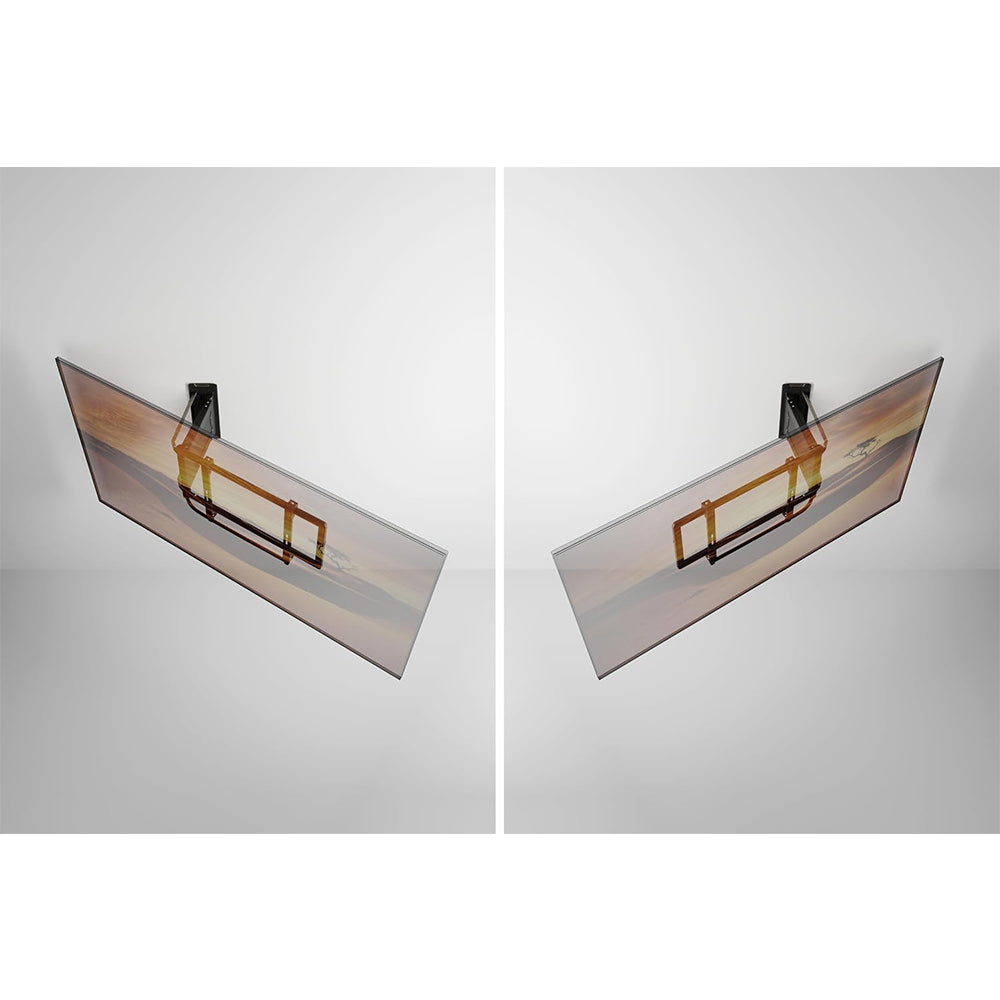

The TVME 5675 is designed to swivel in one direction, with a choice of left or right movement during installation. With up to 85° of rotation, it is particularly well suited to televisions mounted near a corner, helping you direct the screen towards your preferred seating position.

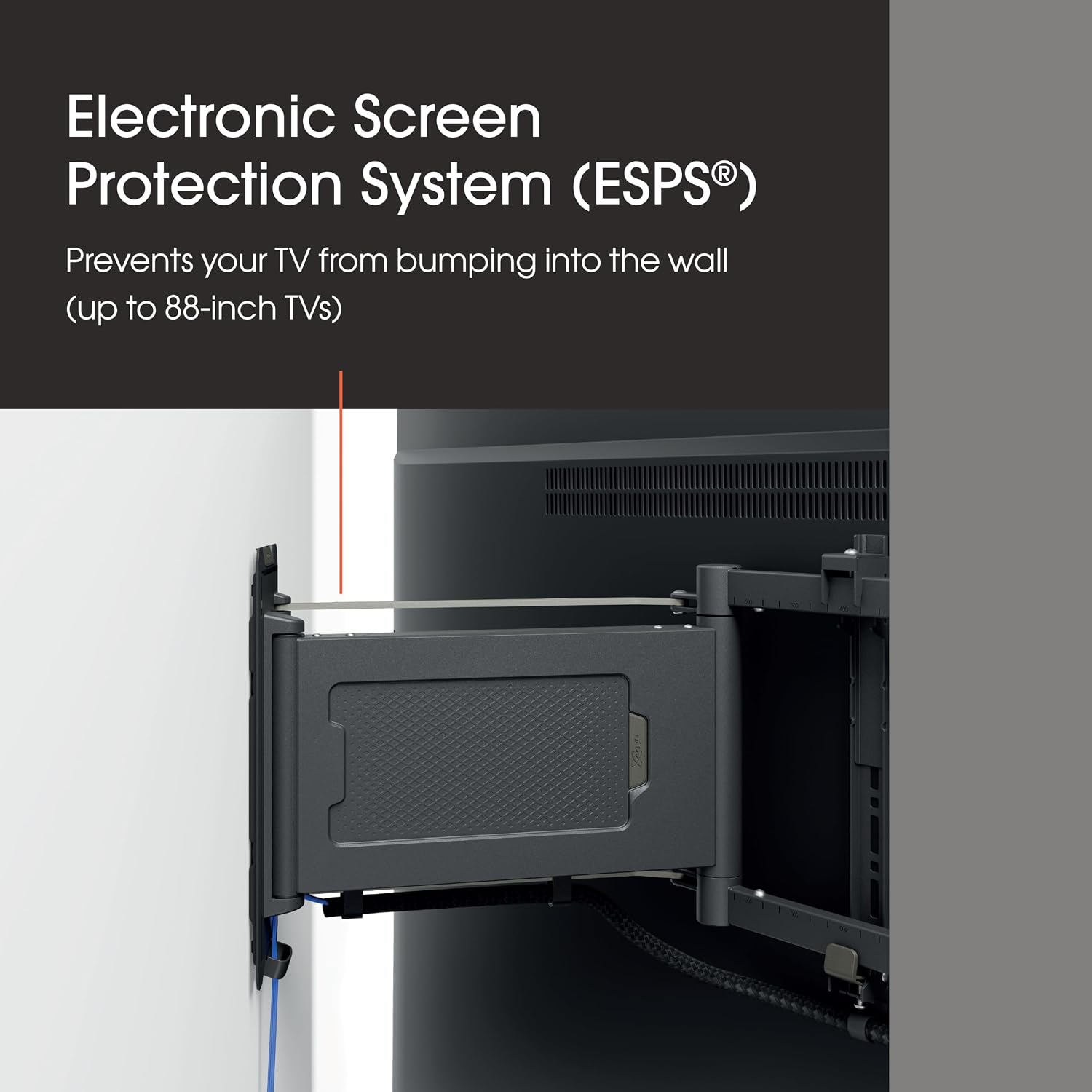

Electronic Screen Protection System (ESPS®)
The built-in Electronic Screen Protection System helps prevent your television from coming into contact with the wall as the bracket moves. This added protection is particularly useful for large, ultra-slim screens that require careful handling.
Neat Cable Management
Vogel's Cable Inlay System (CIS®) helps keep cables organised and out of sight for a cleaner installation. With cable management built into the bracket, you can maintain a tidy appearance behind your television.
Designed for Large, Slim TVs
Supporting televisions up to 88 inches and weighing up to 45kg, the TVME 5675 is suitable for many large modern flat-screen TVs. It supports VESA mounting patterns from 100 x 100mm to 600 x 400mm, helping with compatibility across a wide range of models.
Tested for Safety and Durability
The bracket is TÜV-certified and has been tested to withstand three times its stated maximum load. A drilling template and Vogel's DrillRight app help simplify installation, while the included instructions guide you through the fitting process.
Key Features
- Suitable for 40–88 inch televisions
- Maximum supported TV weight: 45kg
- Motorised TV wall mount with single-direction swivel
- Up to 85° swivel to the left or right, selected during installation
- Automatic movement when switching the TV on and off, with compatible HDMI-CEC equipment
- Control via remote, MotionMount app and Siri Shortcuts
- Up to seven saved viewing positions
- Electronic Screen Protection System (ESPS®)
- Integrated Cable Inlay System (CIS®)
- VESA compatibility from 100 x 100mm to 600 x 400mm
- TÜV-certified safety testing
- Ideal for corner mounting and large, ultra-slim televisions
Technical Specifications
|
Specification
|
Details
|
|
EAN single box
|
8712285414268
|
|
Product series
|
ELITE
|
|
Product category
|
Motorized TV Wall Mount
|
|
Guarantee
|
2 years
|
|
Minimum screen size
|
40 inches
|
|
Maximum screen size
|
88 inches
|
|

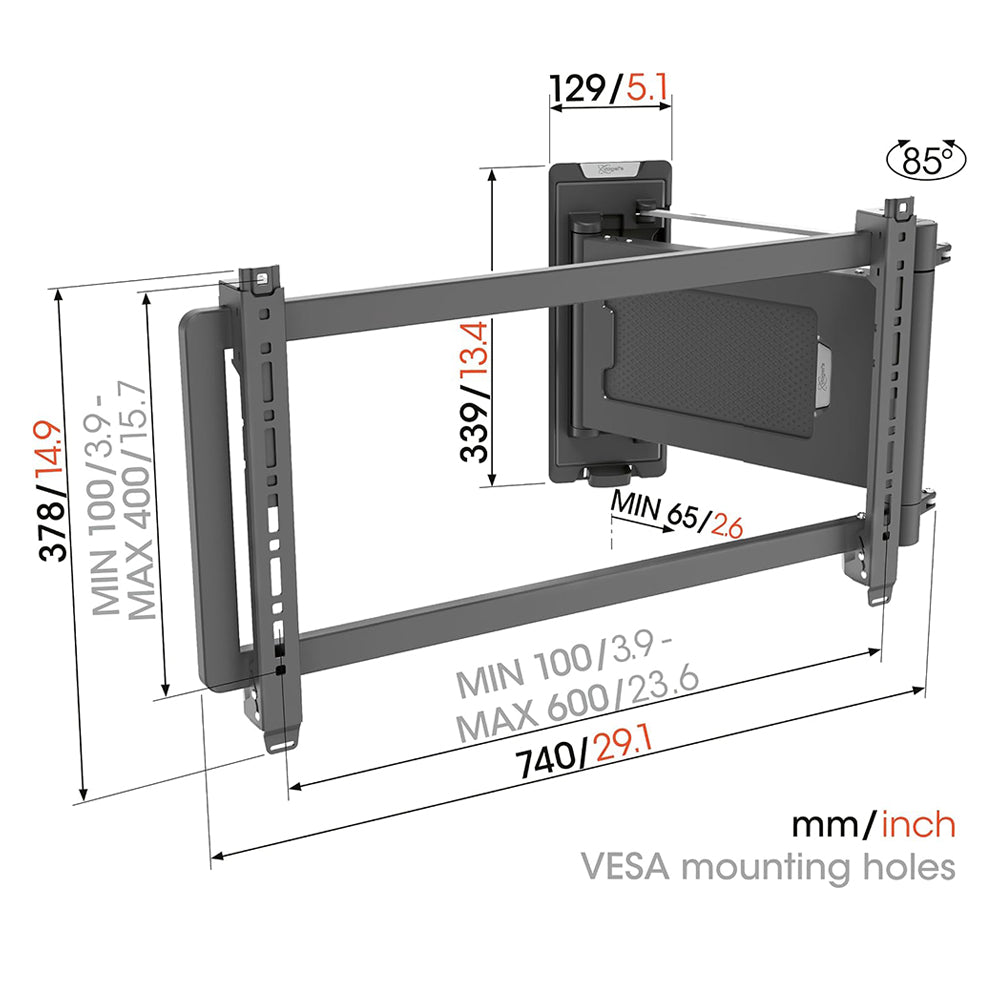

Hole pattern (VESA)
|
100 × 100 mm, 100 × 200 mm, 200 × 100 mm, 200 × 200 mm, 200 × 300 mm, 300 × 200 mm, 300 × 300 mm, 400 × 200 mm, 400 × 300 mm, 400 × 400 mm, 600 × 200 mm, 600 × 300 mm, 600 × 400 mm
|
|
Minimum distance to the wall
|
65 mm
|
|
Maximum distance to the wall
|
735 mm
|
|
Maximum weight load
|
45 kg
|
|
Maximum rotation
|
Up to 85° left or right
|
|
Number of pivot points
|
2
|
|
Colour
|
Anthracite
|
|
What's in the box
|
Wall mount, interface, cable clip, cable straps, wall mounting kit with fischer® Duo Power plugs, TV fasteners kit, Quick Installation Guide, DrillRight app (including spirit level), drilling template, cable sleeve, infrared remote control, AC power adapter, 2 m HDMI cable
|
|
Cable management
|
Cable clip, cable sock, cable Velcro straps, cable management integrated in arm, CIS® Cable Inlay System
|
|
App controlled
|
Yes
|
|
Guarantee on electrical parts
|
2 years
|
|
Remote controlled
|
Yes
|
|
Motorised
|
Yes
|
|
Voltage
|
100–240 V, 50/60 Hz
|
|
Standby power consumption
|
0.02 W
|
|
Average power consumption
|
5.1 W
|
