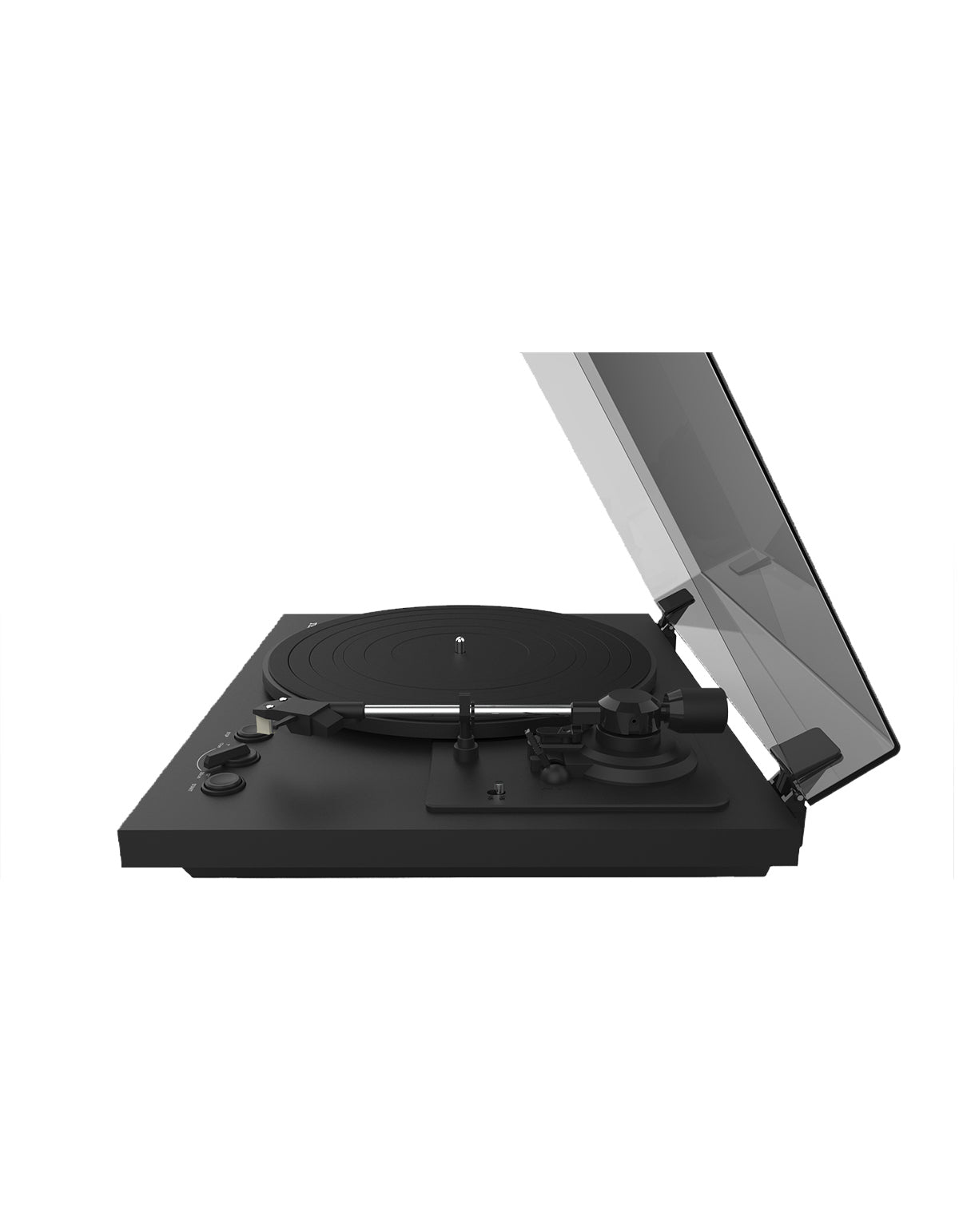

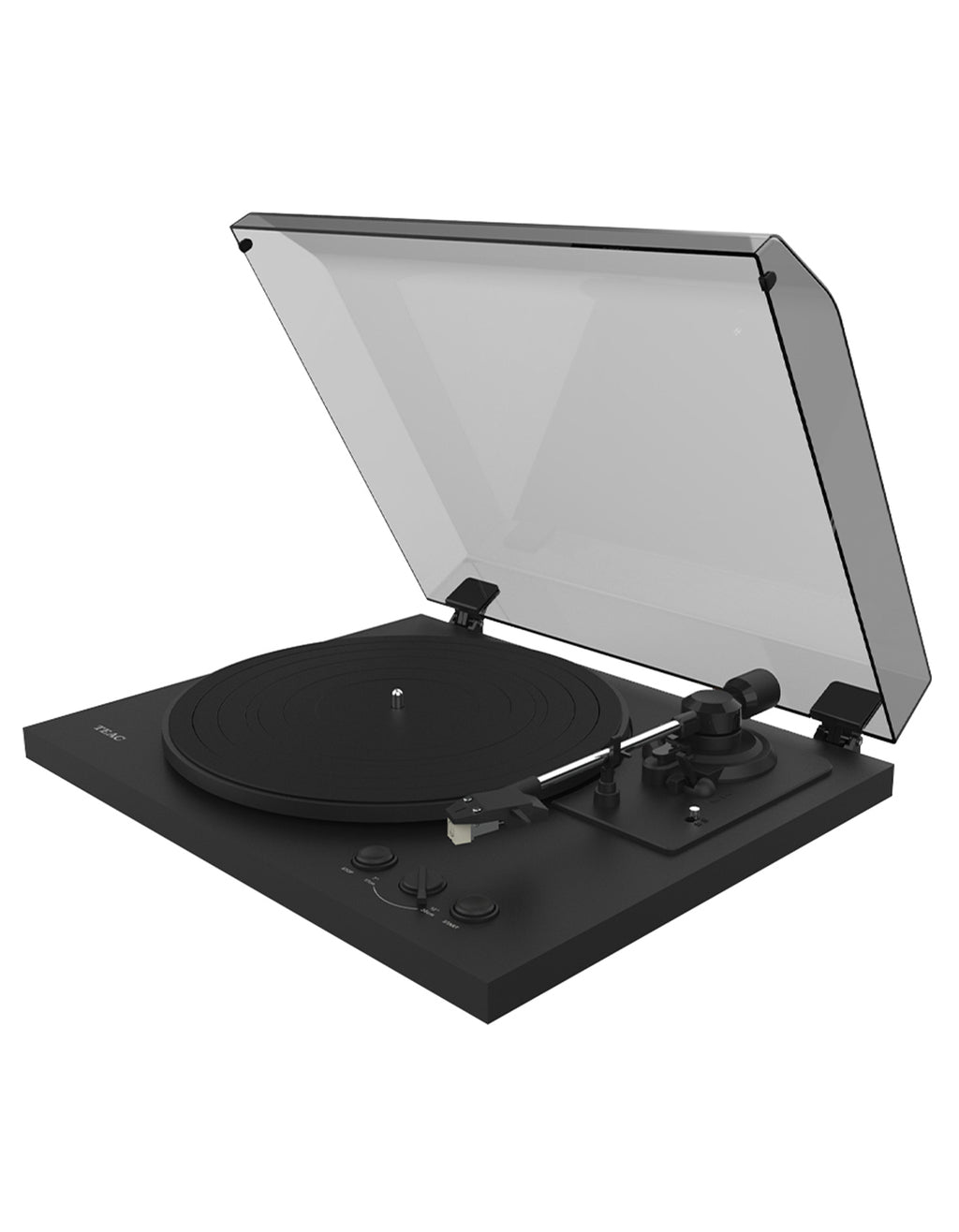

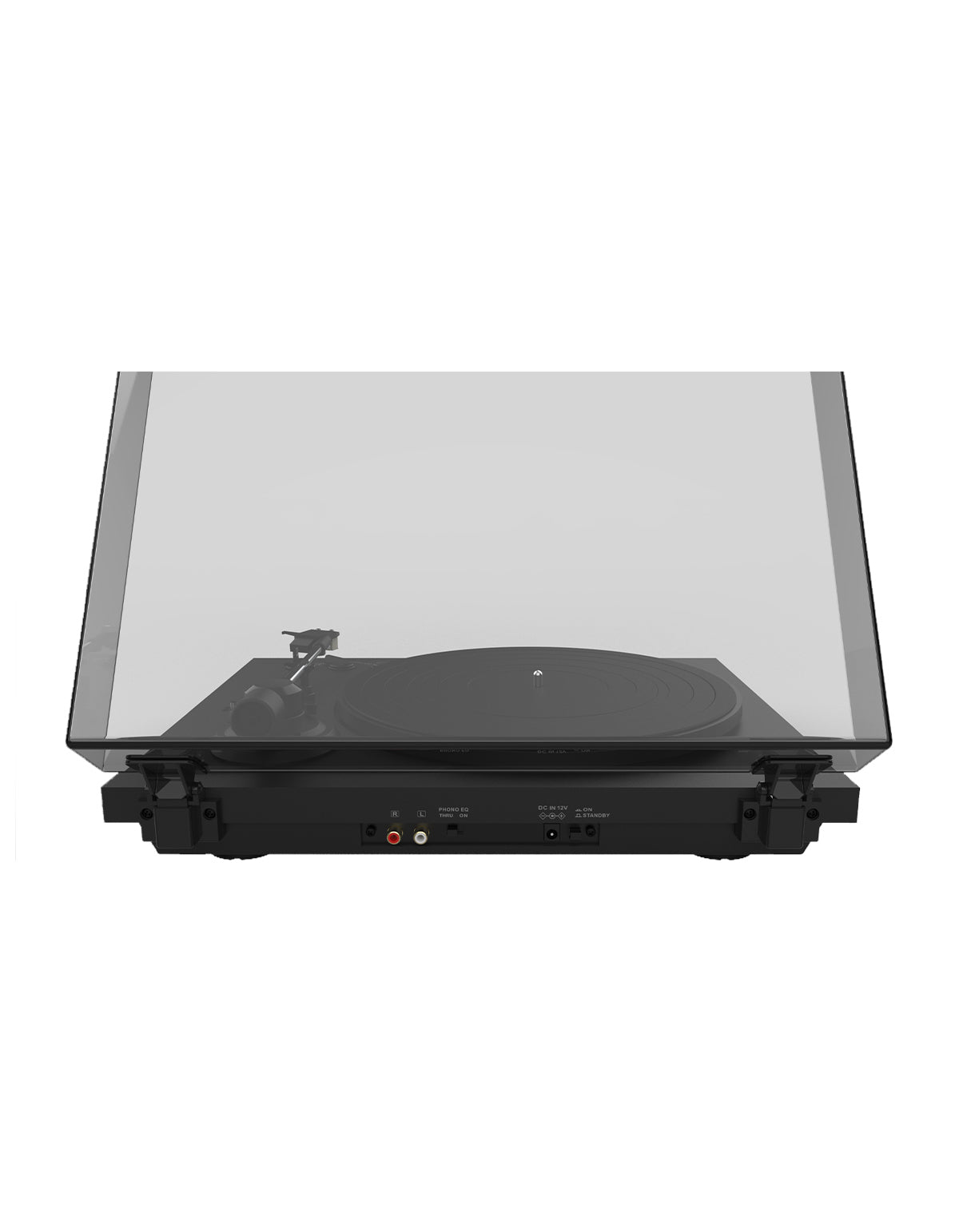

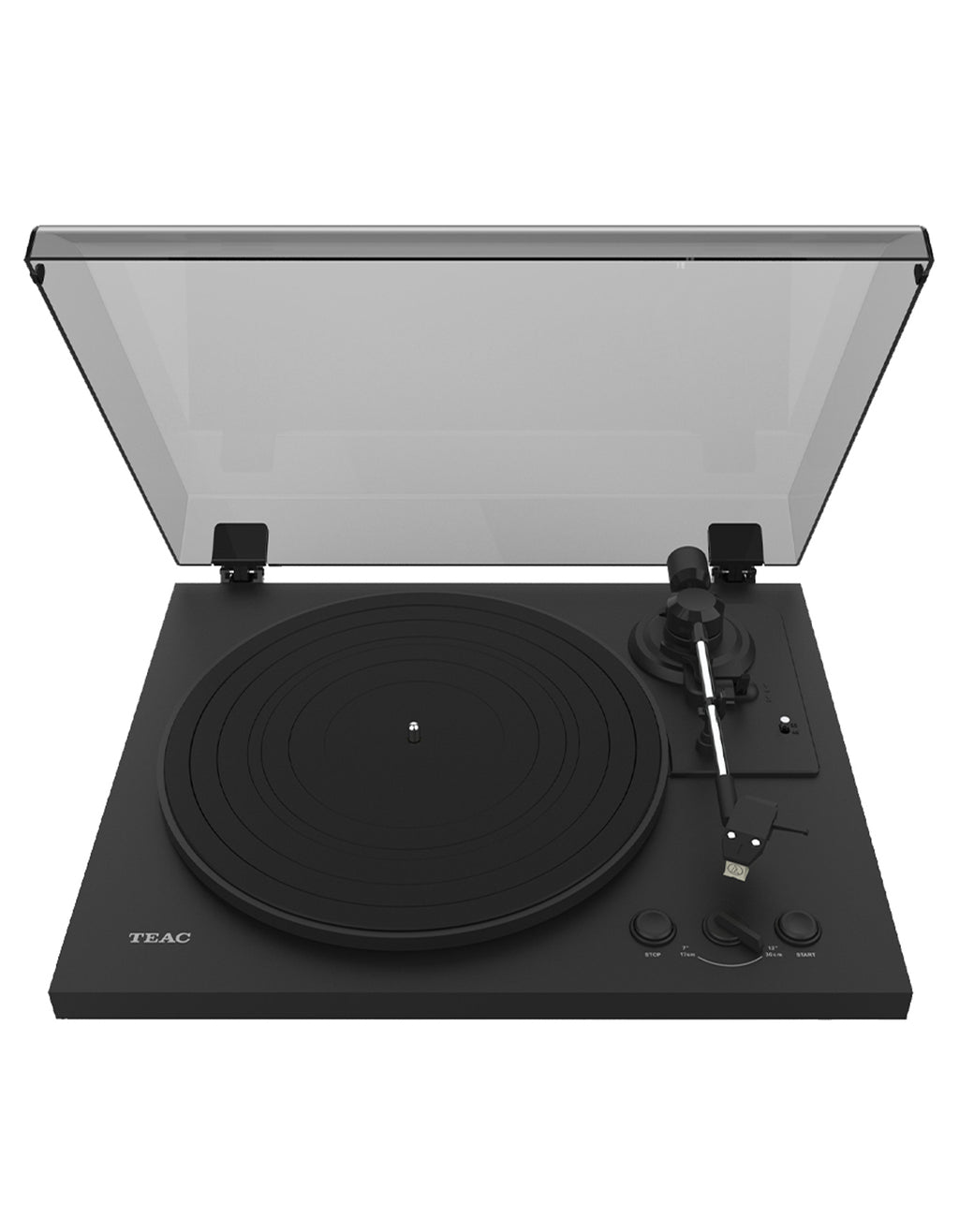

TEAC TN175 Full Automatic Turntable Black
TN-175 is a 2-speed full-automatic belt-drive turntable supporting 33/45 rpm. It comes with a built-in phono equalizing amplifier, phono and line outputs and a VM(MM) type cartridge AT3600L by audio-technica.
2 speed turntable with full automatic operation
The Teac TN-175 turntable boasts a factory-fitted cartridge, static-balanced arm, and built-in phono preamp, making it effortless to use straight out of the box. Connecting to your hi-fi or speaker system and the mains is all it takes to enjoy your treasured vinyl collection. Start spinning your beloved records without delay with the Teac TN-175 turntable.
Low resonance for detailed sound
The TN-175 turntable stands out from other affordable options with its premium wooden MDF chassis, which effectively absorbs vibrations for minimal distortion and maximum audio clarity. Its isolation feet add extra damping, ensuring that unwanted noise doesn't interfere with your listening experience. Invest in the Teac TN-175 turntable for an unbeatable audio experience at a budget-friendly price.
Optimised tonearm and cartridge
Equipped with a static-balanced, straight tonearm and an Audio Technica AT3600L cartridge, ensuring precise and accurate tracking without requiring any adjustments. The factory-aligned cartridge minimizes the risk of damage to your cherished vinyl caused by misalignment. With the TN-175 turntable, you can sit back, relax, and enjoy your favorite records with confidence.
Use with any AUX input – phono pre-amp built-in
This turntable comes with a built-in, switchable phono preamp, making it easy to connect to almost any system. The RCA phono outputs can be connected to your system's phono or AUX input, with the Phono EQ switchable to match. If you have a smart speaker with a 3.5mm input, simply use an RCA to 3.5mm cable (not included) for seamless connectivity. Bring the nostalgia of analogue to your sound system with the user-friendly Teac TN-175 turntable.
Technical Specifications
| Turntable section |
|
| Drive System |
Belt Drive |
| Motor |
DC Motor |
| Speed |
33-⅓ rpm, 45 rpm |
| Wow and Flutter |
0.2% or less |
| Signal-to-Noise Ratio |
67dB or higher (A-weighted, 20kHz LPF) |
| Platter |
Molded resin |
| Diameter of Platter |
290mm |
| Tonearm section |
|
| Type |
Static Balance, Straight |
| Effective Arm Length |
207.9mm |
| Tracking Force |
3.5g |
| Cartridge section |
|
| Type |
VM (equivalent to MM) |
| Output Voltage |
3.5mV (1kHz, 5cm/s) |
| Tracking Force |
3.5g ±0.5g |
| Cartridge Weight |
5.0g ±0.3g |
| Head-shell Weight |
10g (including Screws, Nuts and Wires) |
| Phono Equalizer Amplifier |
|
| Type of Amplifier |
MM type (On/Thru switchable) |
| Analog Output |
|
| Connector |
RCA Pin jack (Gold-plated) × 1 pair |
| Output Voltage |
Phono/Line switchable |
| Phono Output |
2.5mV |
| Line Output |
150mV |
| General |
|
| Power |
AC 100-240V, 50/60Hz |
| Power Consumption |
6.0W (less than 0.2W at Standby) |
Overall Dimensions
(W×H×D) |
16.5" × 4.1" × 14.0"
420 × 105 × 355 mm |
| Weight |
Approx. 7-¾ lbs. / 3.5 kg |
| Accessories |
Rubber Mat, EP Adapter, VM-type Cartridge (AT3600L, Pre-installed), Platter, Dust Cover, Hinge × 2, RCA Audio Cable, AC Adapter (GPE053A-120050-Z), Owner's Manual (including Warranty Card for US/Canada) |
