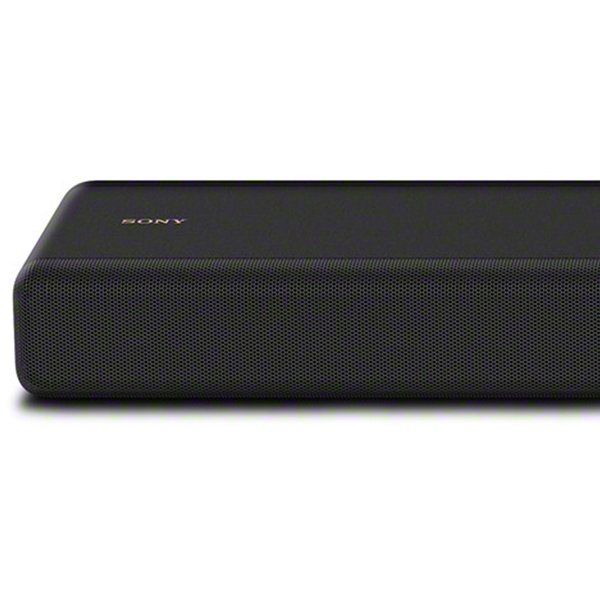

Sony HT-A3000 3.1 channel Dolby Atmos Soundbar
3.1ch
Vertical Surround Engine & S-Force Pro Front Surround
360 Spatial Sound Mapping
Built-in X-Balanced dual subwoofer for powerful bass
Discover superb immersive audio with the HT-A3000.
This 3.1ch Dolby Atmos® soundbar delivers exceptional sound combing X-Balanced speakers including a centre channel for perfect clarity, a dual built-in subwoofer, and unique Vertical Surround Engine technology
Sound Field Optimisation calibrates the sound to fit your room and adding rear speakers delivers 360 Spatial Sound Mapping for the ultimate immersive experience.
Upgrade your bass with either of two new subwoofers - the mighty SA-SW5 or the more compact SA-SW3 - or add our SA-RS5 or SA-RS3S rear wireless speaker kits, for exceptional audio realism.
Pair with a compatible BRAVIA TV with Acoustic Centre Sync, to further enhance the sound with even more detail and clarity.
The HT-A3000 soundbar delivers superb 3.1 channel sound with three X-Balanced front speakers, including a dedicated centre channel for incredible clarity and a built-in dual subwoofer.
Enjoy the thrills of the action happening above and around you with Dolby Atmos® / DTS:X, plus Sony's expertly-crafted Vertical Surround Engine and S-Force Pro Front Surround technologies bring stunning immersive sound to all your content.
HT-A3000 includes Sound Field Optimisation technology, allowing the bar to intelligently measure the layout of your room using built-in microphones. It tunes the sound accordingly, to deliver a spectacular audio experience regardless of your room layout.
Adding rear speakers also brings Sony's unique 360 Spatial Sound Mapping technology to your content for the ultimate immersive experience using phantom speakers that place intelligently around your room and make you feel like you're in the scene of your content.
Paired with a compatible Sony BRAVIA TV, the HT-A3000 brings you the ultimate immersive audio-visual realism using Acoustic Centre Sync technology. The action and sound are precisely aligned using both the soundbar and the screen, delivering an exceptional movie, music and gaming experience
Optional subwoofers and rear speakers bring incredible immersion. The SA-SW5 adds 300W deep, rich bass to your viewing experience, while the more compact SA-SW3 delivers 200W powerful bass. For the ultimate immersive experience, upgrade further with our SA-RS5 rear wireless speakers with built in battery and up-firing speakers or our more compact SA-RS3S, both allowing all your content to be in unique immersive 360 Spatial Sound Mapping technology
Size & Weight
MAIN UNIT SIZE – BODY ONLY (W X H X D) 950mm X 64mm X 128mm
MAIN UNIT WEIGHT – BODY ONLY 4.6kg
Amplifier
Amplifier Type Digital Amplifier,S-Master
Amplifier Channels 5ch
Power Output (Total) 250W
Subwoofer
Subwoofer Type Built-in Subwoofer
Interface
Input and Output Terminals
Optical-audio input, USB typeA,exFAT,FAT12 / 16 / 32,vFAT
IEEE802.11 version
a / b / g / n / ac
Bluetooth
RX / TX
Bluetooth version
Ver.5.0
HDCP2.2
Yes
HDMI
Number of Input/Output
Input / Output: - / 1 (eARC / ARC)
eARC
Yes
BRAVIA Sync
Yes
HDMI CEC
Yes
Audio Formats
HDMI eARC
Dolby Digital,Dolby Digital Plus,Dolby TrueHD, Dolby Atmos,Dolby Dual mono,DTS,DTS HD High Resolution Audio,DTS HD Master Audio,DTS ES,DTS 96 / 24,DTS: X,LPCM5ch/5.1ch/7.1ch, LPCM 192kHz/24but
Optical Input
Dolby Digital, Dolby Dual mono, DTS, LPCM 2ch, LPCM 48kHz/24bit
USB
DSD (.dsf / .dff ) DSD 5.6MHz, WAV,Flac,ALAC (.m4a, .mov) ,AIFF (.aiff, .aif) ,HE AAC,AAC,MP3,Monkey Audio,WMA,Ogg Vorbis
Bluetooth(Receiver)
SBC,AAC, LDAC
Bluetooth(Transmitter)
SBC, LDAC
Sound Function
Sound Mode
Sound Field
Sound Effect
Night Mode,Voice Mode, Immersive Audio Enhancement(with Sound Field on)
Virtual Surround Technology
S-Force PRO,Vertical Surround Engine,360 Spatial sound mapping, Dolby Speaker Virtual, DTS Virtual: X
Speaker Layout
Speaker Structure
3.1ch (Built-in-Subwoofer)
Subwoofer
Built-in Subwoofer
Network Function
Network Function
Chromecast built-in,Spotify Connect,Music Service Button,Works with Google Assistant, Works with Alexa
Wireless Features
Wireless Surround (with optional wireless speakers)
Yes
TV Wireless connection
Yes
Details
Power Consumption
50W
Power consumption(on QuickStart mode)
Less than 0.5W
Power consumption(on Remote Start mode)
Less than 3W
Wall-mountable
Yes
Eco and energy saving
Power Consumption (Off Mode)
not available
Power Consumption (Standby Mode)
0.5 W
Power Consumption (Networked Standby Mode) – Terminals
0.5 W (HDMI CEC) / 3.0 W (WiFi) / 2.0 W (Bluetooth) / 3.0 W (all terminals and networks connected) **Wi-Fi port has router function which can forward audio data to some other Sony audio product (SA-SW3,SA-SW5,SA-RS3S).
Standby Mode Activated
After 20 minutes
Networked Standby Mode Activated – Terminals
After 20 minutes (WiFi) / 20 minutes (Bluetooth)
Wireless Network(s) On/Off Switch
To turn WiFi function and BT function each, press HOME button and select below. 1. [Setup] - [Advanced Settings] - [Network Settings] - [Wi-Fi Connection] - [On/Off] 2. [Setup] - [Advanced Settings] - [Bluetooth Settings] - [Bluetooth Mode] - [Receiver/Transmitter/Off]
Eco and energy saving for control box
Power Consumption (Off Mode)
not available
Eco and energy saving for active speakers
Power Consumption (Networked Standby Mode) – Terminals
0.5 W (HDMI CEC) / 3.0 W (WiFi) / 2.0 W (Bluetooth) / 3.0 W (all terminals and networks connected) **Wi-Fi port has router function which can forward audio data to some other Sony audio product (SA-SW3,SA-SW5,SA-RS3S).
What's In The Box
Remote Control
Batteries for remote commander
TV center speaker mode cable
HDMI Cable
AC Cord
Warranty Card
Quick Setup Guide
Instruction Manual
