Pro-Ject Phono Box DS2 preamp Silver
Premium class phono preamplifier with MM & MC capability
Phono Box DS2 is a highly adjustable phono pre-amplifier that is suitable for common MM and MC cartridges. With the option of switching easily between input impedance and capacitance, as well as gain on the front it becomes one of the most user-friendly phono stages at this price point. It features a pair of RCA inputs for your turntable and one pair of RCA outputs that can be connected to your pre-amplifier or integrated amplifier. The durable aluminium metal sandwich case is sure to protect the amp, this will not only will effectively protect it against electromagnetic interferences and vibrations but will also please the eye with its simple and elegant esthetics. Phono Box DS2 features a very linear circuit design to deliver the best possible sound from a minimalistic PCB. With its high-value sonics and low-cost price, it becomes an audiophile bargain!
Features
Suitable for MM and MC cartridges
Precise RIAA equalisation
Dual mono circuitry for optimized channel separation
Selectable input inpedance on front
Selectable input capacitance on front
Low noise ICs
Gold-plated RCA in & outputs
Sandwich alu/metal casing protects from vibrations and electromagnetic interference
Available in Silver or Black with optional side panels in Eucalyptus, Rosewood and Walnut(Panels Sold Separately)
Technical Specifications
Input impedance 10-47 kOhm
Capacitance 100/220 and 320pF
Gain 40/45/50/60/65 dB
Output voltage 500mV @ 1kHz (at 5mV input voltage @ 1kHz)
Noise floor - 80 dB V
THD+N < 0.02%
THD 0.0008%
RIAA equalisation curve accuracy Within 0.5dB/20Hz - 20kHz

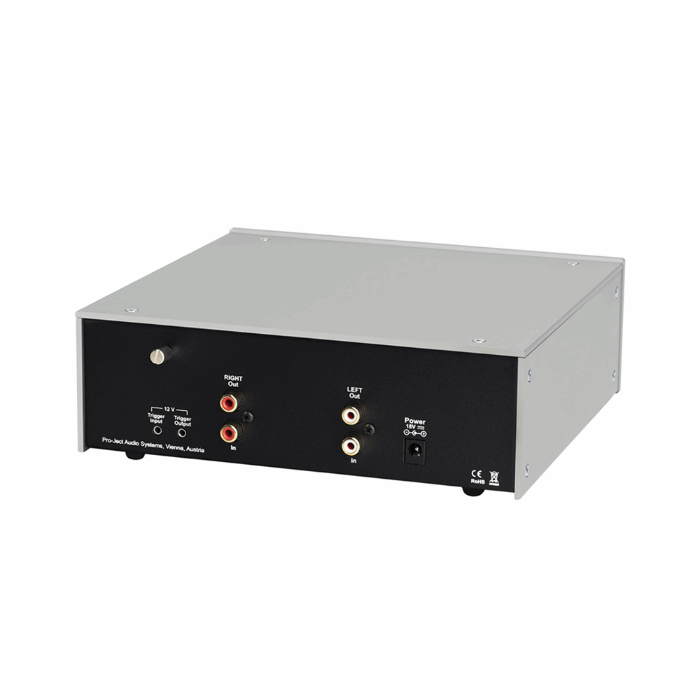

Inputs 1 pair RCA
Outputs 1 pair RCA
Power supply 18V/500mA DC; 110 - 240V, 50/60Hz
Power consumption 100 mA DC, < 1 Watt standby
Dimensions W x H x D 206 x 71 x 194 mm (Alu)
240 x 72 x 194 mm (Wood)
Weight 1320 g (Alu) without power supply
1770 g (Wood) without power supply
