Ortofon Concorde Music Bronze Moving Magnet Cartridge
Discover the Ortofon Concorde Music Bronze Moving Magnet Cartridge
Elevate Your Sound with the Concorde Music Bronze
The Ortofon Concorde Music Bronze is a superior moving magnet cartridge, featuring a Nude Fine Line stylus on an aluminum cantilever. This advanced stylus offers a significant upgrade from the Concorde Music Blue, providing high-resolution sound reproduction with exceptional clarity. Seamlessly transition through the series, from the Concorde Music Bronze to the Concorde Music Black LVB 250, by simply replacing the stylus. Experience music like never before with insightful and detailed sound.
The Concorde Music Series: Crafted for Aficionados
Developed by and for music enthusiasts, the Concorde Music series fuses outstanding performance with iconic design. Each cartridge in the series reflects a deep commitment to the transformative power of music, turning every listening session into an immersive experience. With the Concorde Music series, you're not just using a cartridge; you're embracing a dedication to musical excellence.
Effortless Installation
Mounting the Concorde Music cartridge on your turntable is a breeze—no tools required. The hassle-free and convenient installation process ensures you can enjoy your music without any delays. The bayonet/SME connector design is compatible with all S-shaped tonearms, making it easy to upgrade your audio setup.
Iconic Design with a Storied History
The Concorde Music series builds on Ortofon's rich heritage, tracing back to the launch of the original Concorde cartridge. Celebrated for its unique design that eliminates the need for screws or wires, the Concorde earned the Danish Industrial Design Award and became a legend in the audio world. Today, the Concorde Music series continues this legacy, offering a blend of historical prestige and modern innovation.
Advanced Stylus Technology

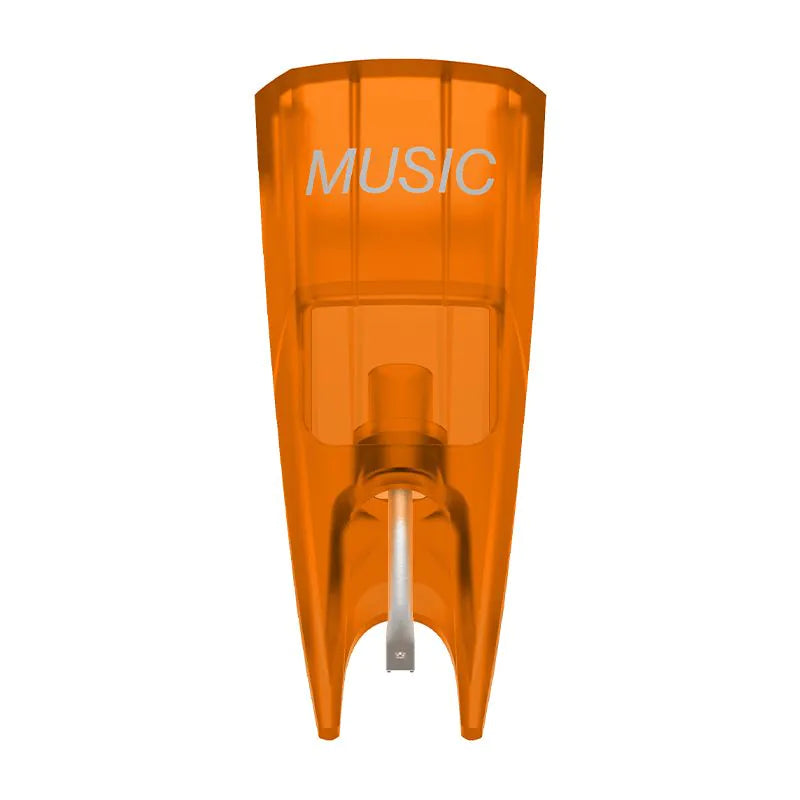

At the heart of the Concorde Music Bronze is its Nude Fine Line stylus mounted on an aluminum cantilever. This stylus shape ensures precise groove tracking, offering more faithful sound reproduction compared to elliptical styluses. The Fine Line's extended profile maintains contact with a larger groove area, delivering a new dimension of audio precision.
Superior Rubber Suspension
A vital component of any phono cartridge is the stylus rubber suspension. The Concorde Music series uses exclusive Ortofon rubber compounds, developed in-house for optimal performance. This carefully engineered suspension system enhances the overall sound quality, ensuring brilliant performance every time.
High-Performance Coil System
The Concorde Music features Ortofon's quad-coil generating system, equipped with four split pole pins. Utilizing silver-plated oxygen-free copper, this system ensures exceptional channel balance and separation. The result is precise, dynamic sound with a 6 mV output, capturing every detail of your music with stunning clarity.
Simple and Versatile Upgradeability
Upgrading your Concorde Music Bronze is straightforward and flexible. All Concorde Music styli are compatible, allowing you to enhance your cartridge up to the Concorde Music Black LVB 250. Replacing the stylus is easy—just pull off the old one and snap on the new one, ensuring you keep the stylus guard on to protect the needle during the process.
Experience the pinnacle of audio fidelity with the Ortofon Concorde Music Bronze, and let your music journey reach new heights.
Technical Specifications
| Channel balance at 1 kHz |
1 dB |
| Output voltage at 1 kHz, 5cm/sec |
6mV |
| Channel seperation at 1 kHz |
26 dB |
| Channel seperation at 15 kHz |
17 dB |
| Frequency response 20 Hz - 20 kHz |
+2 / 0 dB |
| Tracking ability at 315Hz at recommended tracking force |
80 µm |
| Compliance, dynamic, lateral |
15 µm/mN |
| Stylus type |
Nude Fine Line diamond on Aluminium cantilever |
| Stylus tip radius |
r/R 8/40 µm |
| Tracking force, recommended |
1.8g |
| Tracking angle |
20° |
| Internal impedance, DC resistance |
1.27 kΩ |
| Cartridge colour |
Black/Bronze |
| Cartridge weight |
18 g |
| Recommended load resistance |
47 kΩ |
| Internal inductance |
815 mH |
| Recommended load capacitance |
150-300 pF |
