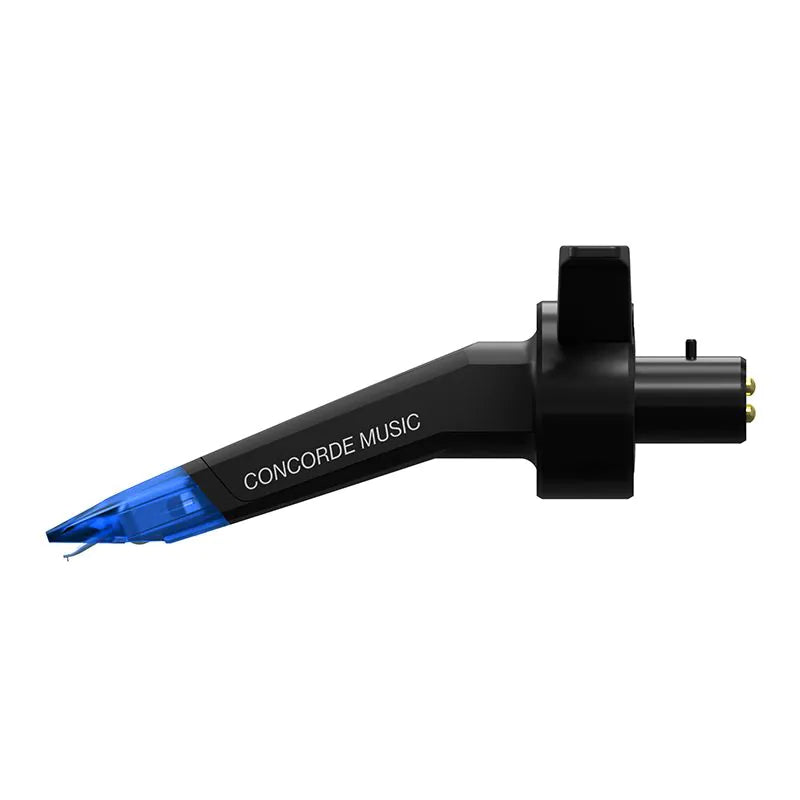

Ortofon Concorde Music Blue Moving Magnet Cartridge
Experience Clear, Unveiled Sound with Concorde Music Blue
Unlock superior sound with the Concorde Music Blue Moving Magnet Cartridge. Equipped with a Nude Elliptical stylus on an Aluminium cantilever, this cartridge offers a significant upgrade from the Concorde Music Red. Enjoy effortless upgrades through the series—from the Concorde Music Blue to the Concorde Music Black LVB 250—simply by replacing the stylus.
The Concorde Music Series: Designed by and for Music Lovers
The Concorde Music Series blends iconic design with premium performance, making every listening session an extraordinary journey. Developed by music enthusiasts, these cartridges reflect the profound impact of music, turning every note into a captivating experience. Installation is straightforward, requiring no tools, ensuring a hassle-free setup on your turntable.
Iconic Design with a Rich Legacy
Building on a storied history that began with Ortofon’s original Concorde, the Concorde Music Series is celebrated as one of the most renowned cartridges in audio history. Initially designed to solve mounting challenges on tonearms, its unique design earned the Danish Industrial Design Award, solidifying its status as an industry icon.
Superior Stylus for Enhanced Audio Performance
Featuring a Nude Elliptical stylus on an Aluminium cantilever, the Concorde Music Blue surpasses the Concorde Music Red. The lightweight nude diamonds improve responsiveness and detail, reducing distortion for a clearer sound. Upgrading through the series is seamless, from the Concorde Music Blue to the Concorde Music Black LVB 250, by simply replacing the stylus.
Advanced Rubber Suspension
The performance of the Concorde Music Blue is enhanced by Ortofon’s exclusive rubber compounds used in the stylus suspension. Developed by Ortofon’s research and engineering team, these compounds ensure brilliant performance, providing stability and precision in sound reproduction.
High-Performance Coil System
Ortofon’s quad-coil generating system, featuring four split pole pins and silver-plated oxygen-free copper, sets the Concorde Music Series apart. This system ensures exceptional channel balance and separation, delivering precise, dynamic sound with a 6 mV output for lifelike clarity and fidelity.
Easy Installation and Compatibility
Installing the Concorde Music cartridge on your turntable is hassle-free, thanks to the bayonet connector, which is compatible with all S-shaped tonearms. No tools are required, making it convenient for all users.
Seamless Upgradeability
Upgrade your audio experience with the Concorde Music Blue, which is compatible with all Concorde Music styli. Transition through the series up to the Concorde Music Black LVB 250 effortlessly by replacing the stylus. Ensure the needle’s safety by keeping the stylus guard on during installation.
Experience the pinnacle of audio performance with the Ortofon Concorde Music Blue Moving Magnet Cartridge—where iconic design meets unmatched sound quality.
Technical Specifications
| Channel balance at 1 kHz |
1.5 dB |
| Output voltage at 1 kHz, 5cm/sec |
6mV |
| Channel seperation at 1 kHz |
25 dB |
| Channel seperation at 15 kHz |
15 dB |
| Frequency response 20 Hz - 20 kHz |
+2 / -1 dB |
| Tracking ability at 315Hz at recommended tracking force |
80 µm |
| Compliance, dynamic, lateral |
15 µm/mN |
| Stylus type |
Nude Elliptical diamond on Aluminium cantilever |
| Stylus tip radius |
r/R 8/18 µm |
| Tracking force, recommended |
1.8g |
| Tracking angle |
20° |
| Internal impedance, DC resistance |
1.27 kΩ |
| Cartridge colour |
Black/Blue |
| Cartridge weight |
18 g |
| Recommended load resistance |
47 kΩ |
| Internal inductance |
815 mH |
| Recommended load capacitance |
150-300 pF |
