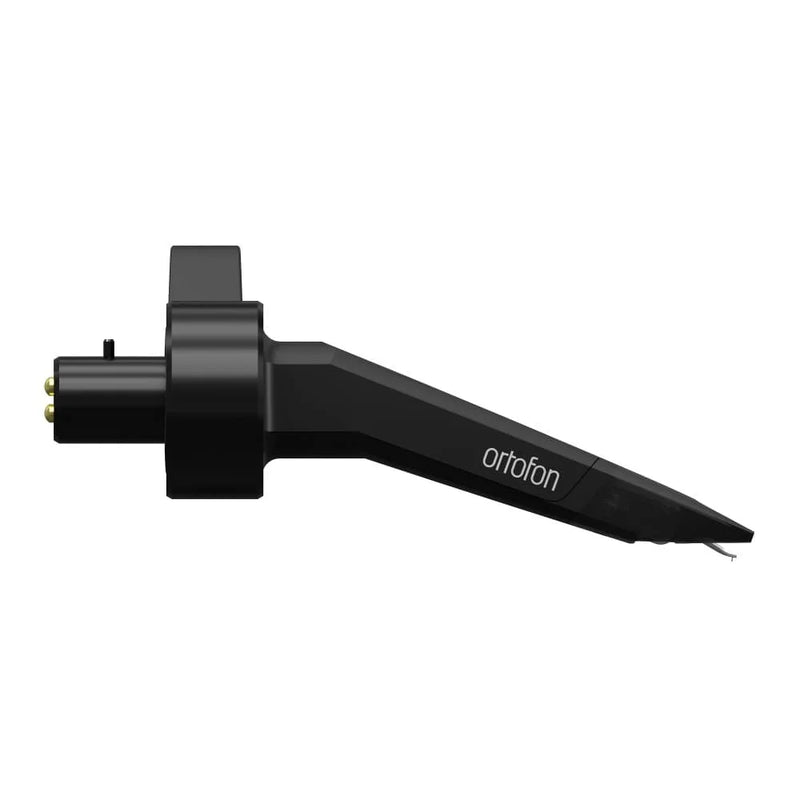

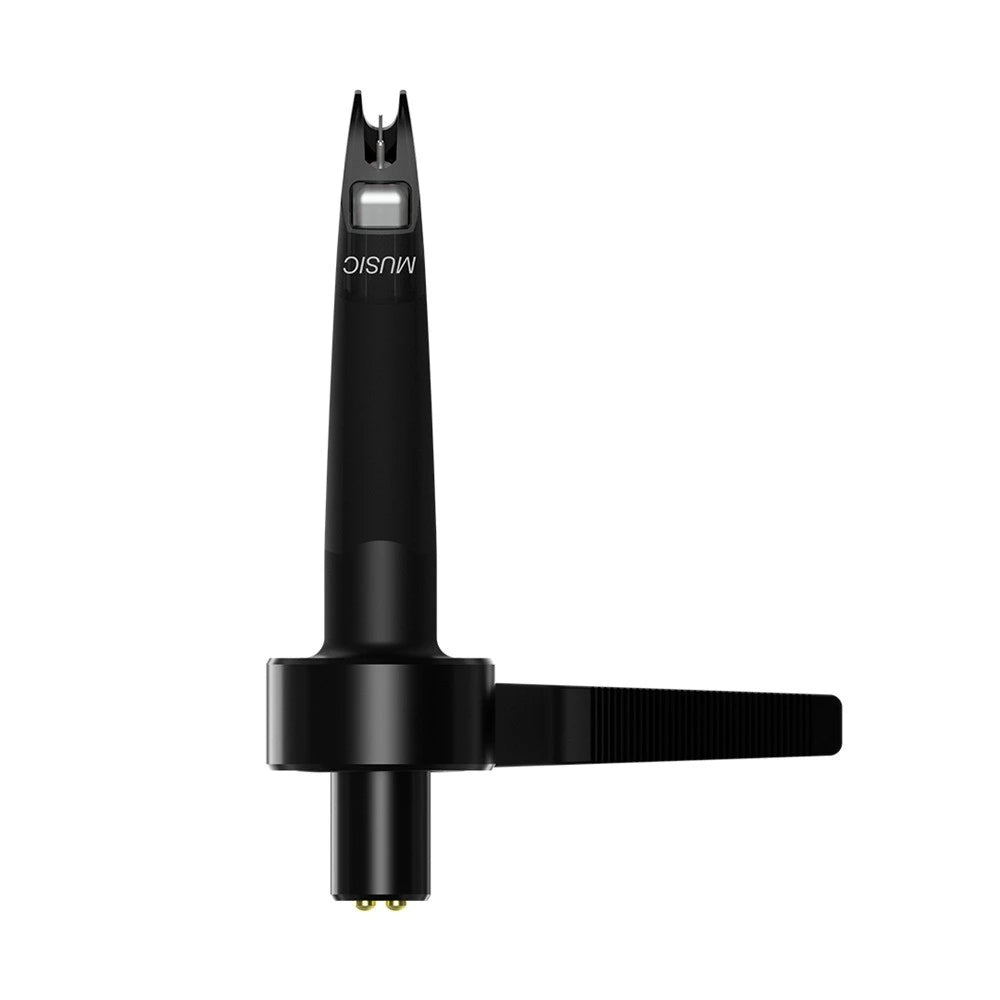

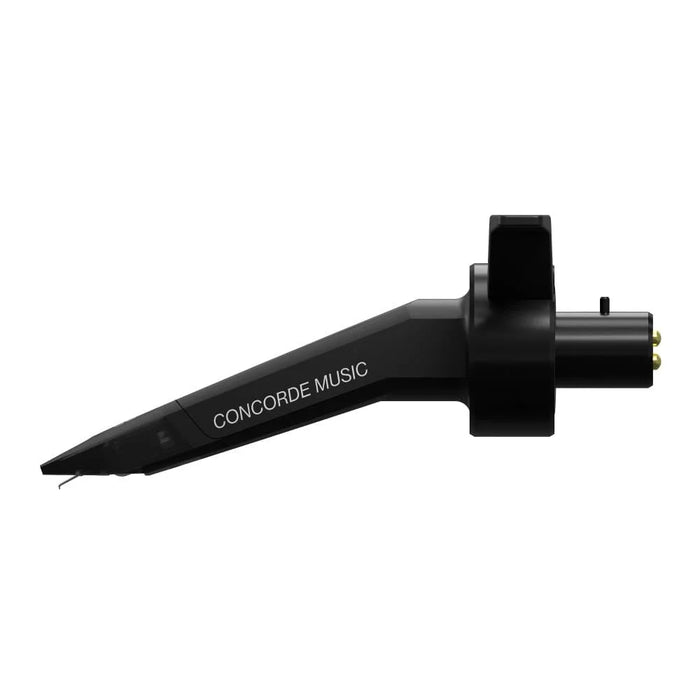

Ortofon Concorde Music Black LVB 250 Moving Magnet Cartridge
Discover High-End Audio Precision with the Ortofon Concorde Music Black LVB 250 Moving Magnet Cartridge
Elevate your vinyl listening experience with the Ortofon Concorde Music Black LVB 250, the flagship model of the Concorde series. Engineered for audiophiles, this premium moving magnet (MM) cartridge features a nude Shibata diamond mounted on a high-quality boron cantilever, delivering sound performance that rivals more expensive moving coil designs. Experience unparalleled audio fidelity and high-end excellence with this exceptional cartridge.
Features of the Ortofon Concorde Music Black LVB 250
Nude Shibata Diamond: Each Concorde Music stylus is crafted with a diamond polished to the industry's highest standards. The Black LVB 250 model boasts a nude Shibata diamond, ensuring precise and detailed sound reproduction.
Premium Cantilever: All Concorde Music models feature top-tier cantilevers made from either aluminum or boron, providing the best possible transmission of vinyl record groove modulations picked up by the diamonds.
Exclusive Suspension System: Utilizing Ortofon's proprietary rubber compounds, the stylus suspensions are meticulously produced in-house. Developed by Ortofon's research and engineering team, these suspensions contribute to brilliant performance and audio accuracy.
Advanced Coil System: The Concorde Music Black LVB 250 employs a silver-plated oxygen-free copper quad-coil system, along with four Ortofon split pole pins. This configuration delivers a 6 mV output of dynamic, lifelike sound with exceptional clarity and fidelity, capturing every musical detail.
Upgradeability: The Concorde Music series offers a versatile upgrade path. All Concorde Music styli are compatible with all Concorde Music cartridges, allowing you to enhance your audio setup from the Concorde Music Red to the Black LVB 250 seamlessly.
Tool-Free Installation: Installing the Concorde Music cartridge on your turntable is straightforward and hassle-free, requiring no tools. Enjoy a convenient and user-friendly setup experience.
Commitment to Musical Excellence
Concorde Music epitomizes design and musical dedication, inviting enthusiasts to elevate their auditory journey with Ortofon’s characteristic sound accuracy. Tailored for music lovers, the Concorde Music series offers premium sound, timeless design, and easy installation.
Unique In-House Rubber Production
A crucial component of a phono cartridge's performance is the stylus rubber suspension. Ortofon develops exclusive rubber compounds and produces the suspensions and dampers in-house, ensuring superior quality and consistency.
Exceptional Audio Precision
The Ortofon quad-coil generating system with split pole pins in the Concorde Music series provides exceptional channel balance and separation, delivering a precise and dynamic sound image. With the Concorde Music Black LVB 250, experience audio reproduction that brings the artist directly into your living room.
Discover the Ortofon Concorde Music Black LVB 250 today and redefine your high-end audio expectations.
Technical Specifications
| Channel balance at 1 kHz |
1 dB |
| Output voltage at 1 kHz, 5cm/sec |
6mV |
| Channel separation at 1 kHz |
26 dB |
| Channel separation at 15 kHz |
20 dB |
| Frequency response 20 Hz - 20 kHz |
+2 / 0 dB |
| Tracking ability at 315Hz at recommended tracking force |
80 µm |
| Compliance, dynamic, lateral |
15 µm/mN |
| Stylus type |
Shibata diamond on Boron cantilever |
| Stylus tip radius |
r/R 6/50 µm |
| Tracking force, recommended |
1.8 g |
| Tracking angle |
20° |
| Internal impedance, DC resistance |
1.27 kΩ |
| Cartridge colour |
Black/Black |
| Cartridge weight |
18 g |
| Recommended load resistance |
47 kΩ |
| Internal inductance |
815 mH |
| Recommended load capacitance |
150-300 pF |
