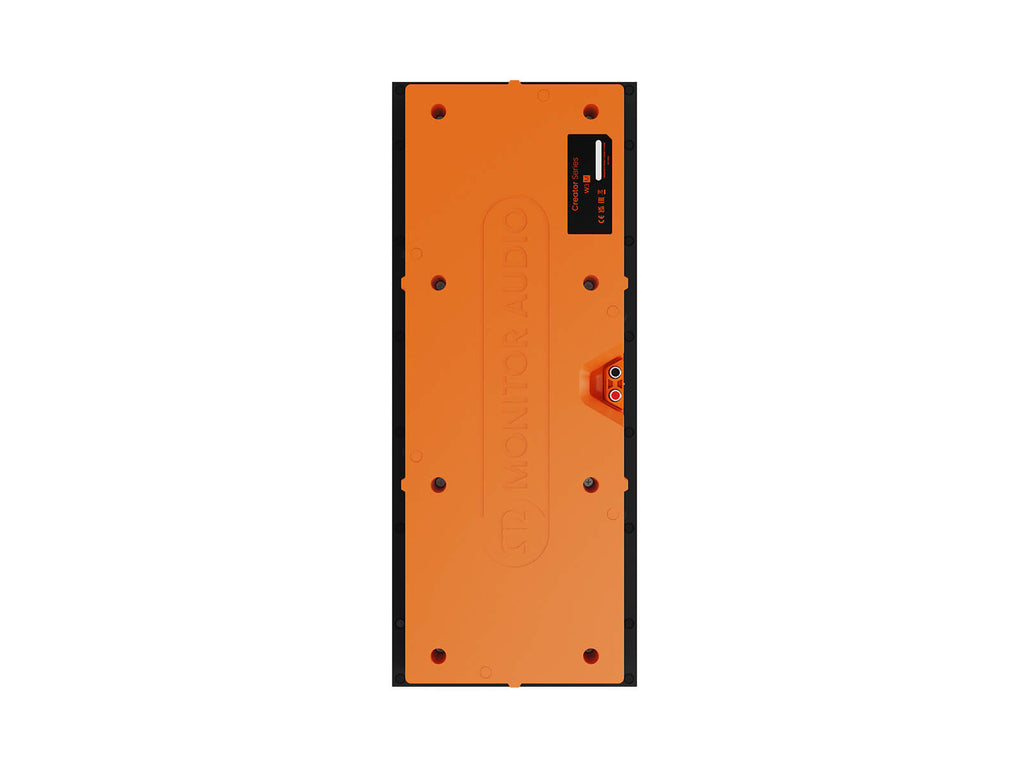

Monitor Audio W3M Creator Series In-Wall Speaker Single
Introducing the Tier 3 in-wall loudspeaker, a high-performance marvel designed to deliver pristine and engaging acoustics with a focus on impeccable sound quality. This three-way model is equipped with two RDT III bass drivers, a C-CAM mid-range driver, and an advanced MPD II transducer. With a cut-out dimension of 527 x 198 mm, installation is made seamless through the revolutionary patented Quik-Link speaker cable connector and the evolved Tri-Grip II, ensuring quick, reliable, and robust fitting.
This large Tier 3 in-wall loudspeaker is built on the foundation of the Platinum Series 3G, featuring the latest acoustic technologies from Monitor Audio. The standout feature is the MPD II high-frequency transducer, developed for the THX Certified Ultra Cinergy range. Precision-engineered with Micro Pleated Diaphragm technology, it delivers accurate, lifelike sound without distortion. Coupled with a C-CAM midrange driver and two RDT III bass drivers, this combination ensures acoustic transparency and detail found in Monitor Audio's premium loudspeaker ranges, where much of the acoustic technology was originally developed.
This Tier 3 in-wall loudspeaker represents the epitome of installed performance. With a cut-out dimension of 527 x 198 mm, the Quik-Link speaker cable connector revolutionizes the installation process, and the evolved Tri-Grip guarantees a secure, reliable, and robust fitment. Elevate your audio experience with the Tier 3, where cutting-edge technology meets unparalleled sound quality for an immersive integration into any space. Upgrade your sound with Monitor Audio's commitment to excellence in audio engineering!
Key Features
- Ideal for installations where high-performance acoustics are desired
- Three-way design
- 1 x MPD II transducer for breathtakingly precise high-frequency performance
- 1 x 3" (76 mm) C-CAM midrange driver
- 2 x 5" (127 mm) RDT III bass drivers for full bass
- Patented Quik-Link speaker cable connector for quicker installation
- Tri-Grip II for easy and secure fitment
General Information
-
Enclosure Type: Open
-
Output: Mono
-
Power Type: Passive
-
Weight Each (Kg): 4.7
Application Appearance
-
Visible Colour: White
-
Visible Shape: Rectangular
Dimensions
-
Cutout Dimensions (mm): 527 x 198
-
Mounting Depth (mm): 85
-
Overall Depth (mm): 90
-
Overall Dimensions (mm): 540 x 211
Detailed Specifications
-
Compatible Amplifier (Watts RMS): 60 - 225
-
Frequency range (Hz): 45 - 60000
-
Nominal Impedance (Ω): 6
-
Max Power High (Watts): 150
-
Sensitivity (dB): 88
-
Sound Pressure (dB): 122
Driver Information
- Bass: 2
- Biggest Driver Size (mm): 127
- Mid: 1
- Tweeter: 1
