Monitor Audio W180 In-Wall Speaker

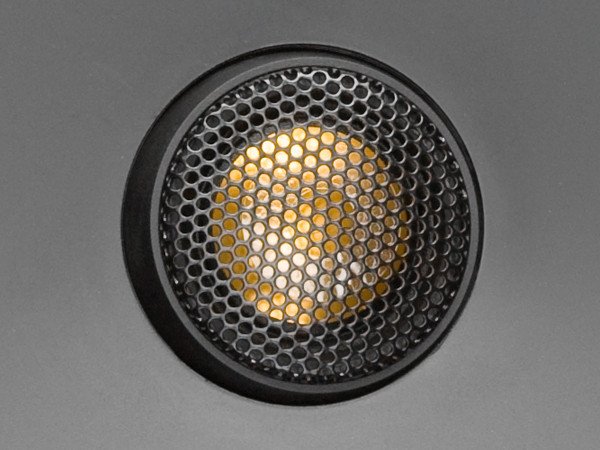

The W180 incorporates an 8-inch MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.
Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.
Specification
Frequency Response
50 Hz – 25 kHz
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
90 dB
Maximum SPL
111.6 dBA
Power Handling (RMS)
120 W
Recommended Amplifier Requirements
30 – 120 W
Drive Unit Complement
- 8" MMP II cone bass driver
- 1" C-CAM Gold Dome tweeter
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
Overall Diameter (Including Grille)
441 x 288 mm (173/8 x 115/16")
Overall Depth (Including Grille)
104 mm (41/8")
Mounting Depth
100 mm (315/16")
Cut-Out Hole Diameter
387 x 234 mm (151/4" x 93/16")
Fixing Type

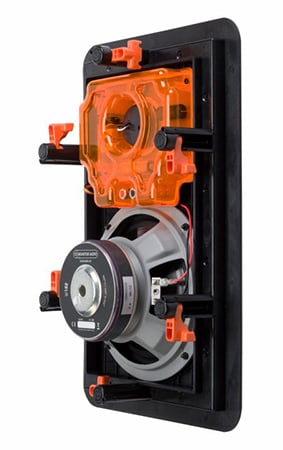

6 position Tri-Grip dog fixings
Construction Material
Mineral filled ABS, RoHS compliant
Weight
3.08 kg (6 lb 12 oz)
Pre-Construction Bracket
WB8 Pre-Construction Bracket (Green)
Back Box
WCBOX-L
