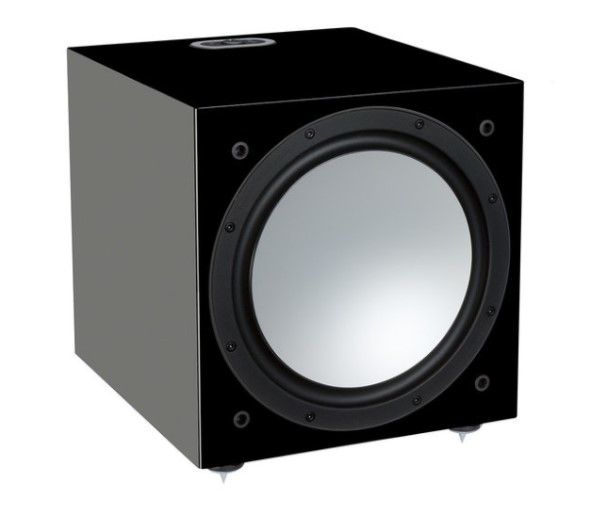

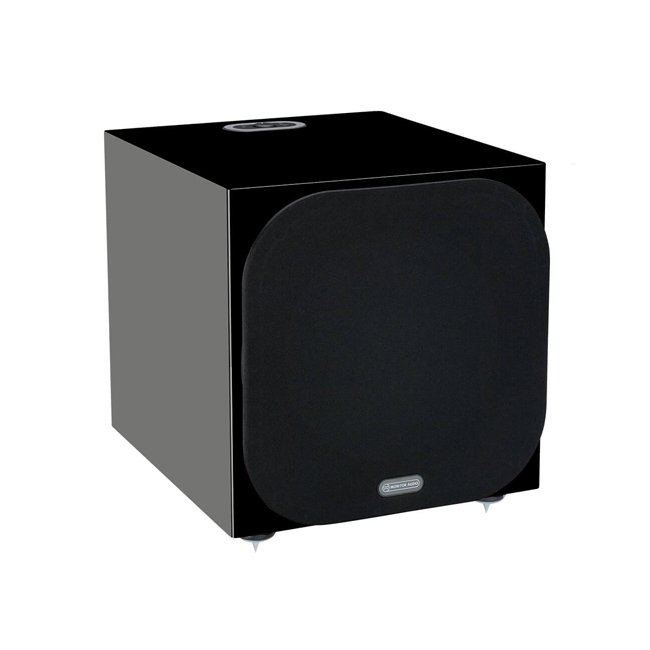

Monitor Audio Silver W-12 Subwoofer Gloss BlackThe Monitor Audio Silver Series Subwoofer delivers seismic bass right down to 22 Hz using a powerful, long throw 12 inch driver.
Features
Ultra Long Throw 12 inch driver featuring dished C-CAM Cone
Triple Suspension for ultimate linearity ensuring control at hhigh power and excursions
Oversized Black Anodised 3 inch voice coil which provides high power handling nad low distortion
Powerful 500 W RMS Class D Amplifier with switching power supply that provides instant delivery of high current when required
DSP processing with all control features and crossover performed digitally
USB for firmware updates
Three Preset EQ mode settings
With the Silver W-12’s over specified driver assembly that employs a hugely powerful magnet system and massive voice coil to deliver immense power from the compact sealed cabinet. With the heavy duty diecast basket not only does it hold the massive system rigidly together but also assists the thermal sinking to keep the driver cool.
From the Silver W-12 Subwoofer to Monitor Audio specified a 500-watt Class-D Amplifier and power supply module from highly regarded amplifier specialist Hypex. This provides an incredible headroom and utilises advanced switch mode power conversion techniques. With Automatic Position Correction system, the APC is a complete in house development designed to be automatically correct for room modes. It uses a microphone and test tones to calculate detrimental room modes and correct frequency response. By optimising it for the room and position.
At the heart of the Silver W-12 lies the sophisticated 32 bit micro controller, monitoring performance thousands of times per second. Ensuring the system can deliver the best possible bass. It will never become over driven or distorted even at maximum power.
Specifications
Lower Frequency Limit
20 Hz (Typical IEC room)
Upper Frequency Limit
40 – 120 Hz variable
Low Pass Filter Alignment
Active 4th order 24 db/octave
Amplifier Output
500 W continuous
Amplifier Classification
Class-D amplifier with switched-mode power supply (SMPSU)
Bass EQ Profiles
1: Movie
2: Music
3: Impact
Phase Control
0 & 180 degrees
Auto Sensing
Line Level >2 mV
Input Level Requirements
Standby after 20 minutes if no signal sensed
Drive Unit Complement
1 x 12" C-CAM subwoofer driver featuring triple suspension and 3" long throw voice coil
Trigger Input
5 – 12 V via 3.5 mm mono mini-jack socket
Cabinet Dimensions (Excluding Grille and Terminals (H x W x D))
340 x 340 x 380 mm (133/8" x 133/8" x 1415/16”)
Dimensions (Including Grille, Amp and Feet)
370 x 340 x 410 mm (149/16" x 133/8" x 161/8”)
Mains Input Voltage
110 – 120 Vac /
220 – 240 Vac 50/60 Hz (Electronically Auto selected)
Power Consumption
400 W / 0.5 W in Standby (ErP approved)
Weight (unpacked)
20.1 kg (44 lb 5 oz)
Sold As
Single Unit
