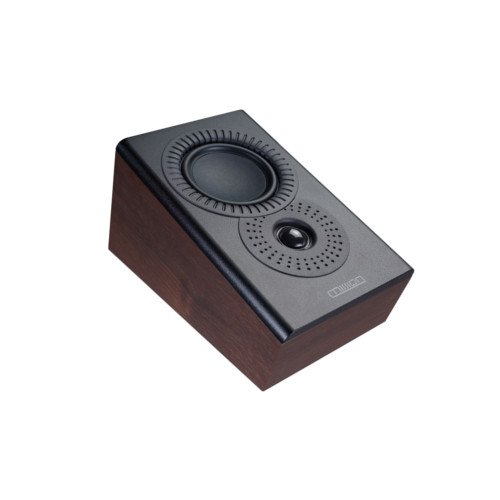

Mission LX-3D MKII Surround Speakers Walnut Pair
Perfected over hundreds of hours of critical listening by Mission’s lead acoustic designer, Peter Comeau, Mission LX MKII utilises trickle-down innovations from the revered ZX series. Improvements in the famous Mission DiaDrive bass unit offer superior control of the low-frequency diaphragm while a refined high-frequency performance and a re-engineered cabinet bracing system further help create a loudspeaker system that outperforms its price-class.
Continuous Innovation
From over 40 years of British Hi-Fi heritage and experience, LX MKII is a representation of Mission’s non-stop pursuit of improvement and excellence
Advanced New Driver Surrounds and Crossover
One of the critical areas highlighted by the development of Mission ZX and QX models was the use of serrations in the driver surrounds to help scatter interfering reflections from localised surfaces to the dome and cone
LX MKII now incorporates these serrations into the driver surrounds, adding further finesse to the drive unit outputs and providing a smoother frequency response
With minor perturbations in the driver response ironed out, the crossover for each model has been optimised to take advantage of the improved performance
The result is that the LX MKII builds on the winning formula of the LX, both enhancing the clarity of
midrange and treble detail and improving the micro-dynamics of the musical performance for an even more thrilling listener experience.
Inverted Geometry Drive Design
Mission’s classic IDG (Inverted Driver Geometry) driver format positions the high frequency below the bass / midrange driver meaning the length of path is equalised so the sound waves coincide at the listener’s head height. A proprietary principle that improves ‘time alignment’ and thus transient performance in Mission speakers
A New Start, With a New Finish
Standout new finish options follow the Mission mantra of fusing Hi-Fi heritage with contemporary design. LX MKII is the epitome of affordable high-end audio, harnessing materials, techniques and technologies that you would only expect to find in other speakers costing many times the price
Specifications
General description 2-way surround speaker
Enclosure type closed-box system
Transducer complement 2-way
Bass driver 4"(100mm) composite fibre
Treble driver 25mm microfibre dome
AV shield No
Sensitivity (2.83V @ 1m) 86dB
Recommended amplifier power 20-80W
Peak SPL 99dB
Nominal impedance 8Ω Compatible
Minimum impedance 4.5Ω
Frequency response (+/-3dB) 105Hz ~ 20kHz
Bass extension(-6dB) 90Hz
Crossover frequency 2.8kHz
Cabinet Volume (in litres) 2.2L
Height (on plinth) (150+8)mm
Width 160mm
Depth (with terminals) 260mm
Carton size 365 x 345 x 245mm
Net weight 2.85kg/pcs
Gross weight 6.2kg/ctn
