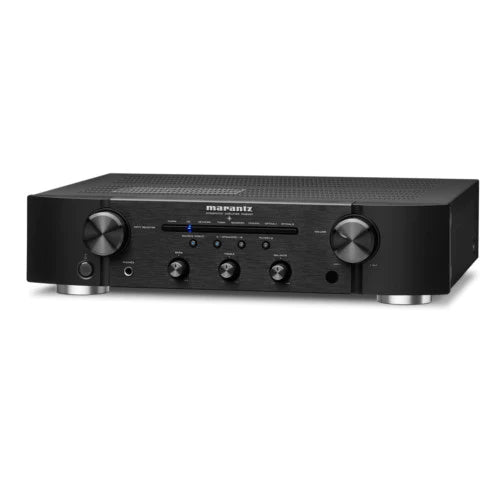

Marantz PM6007 Integrated Amplifier Black Open Box Clearance

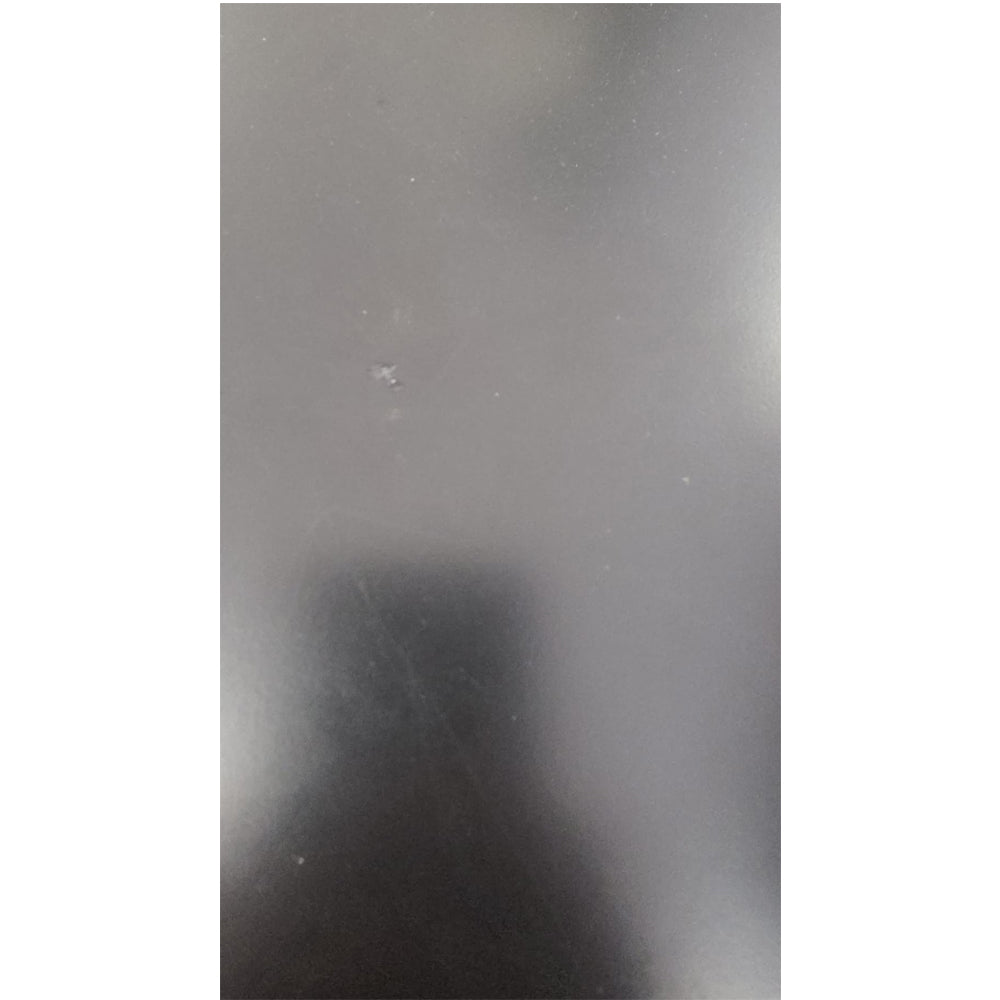

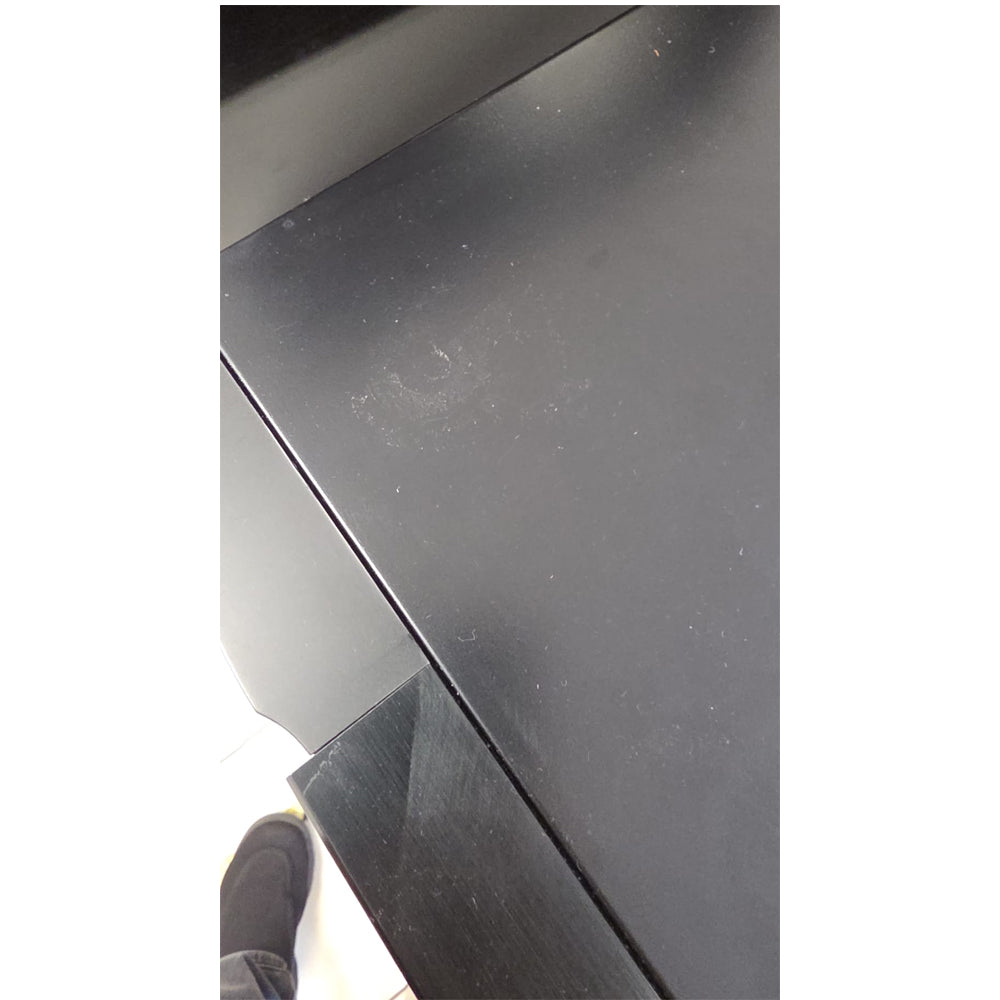

Brand New Unused Unit in Mint condition, Internal & Outer packaging bit tatty, Complete with All Accessories - Full 2 Year Warranty
Stock No.: 1033700644
"The Marantz 6000 Series has allowed the company to have a firm grip on the budget hi-fi market over the past few years, and with the arrival of the PM6007, the amplifier line has been strengthened yet again." - What HIFI? 5 Stars

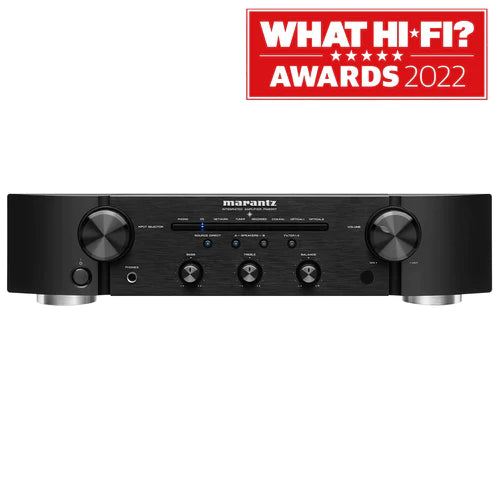

"Best Stereo Amplifier £400-£600" - What Hi-Fi? 5 Star Award And Product of the Year Winner 2021
 |
 |
 |
| Current Feedback Amplifier |
Fully Discrete Current Feedback Power Amplifier with HDAM-SA3 |
HI-Res Audio Support |
| The Current Feedback Amplifier technology provides wide-bandwidth and high-speed sound reproduction. In combination with a high current power supply, the PM6007's amplifier holds a large energy reserve to easily drive even more demanding speakers. An advanced thermal compensation avoids memory distortion for clean amplifiercation under any circumstances |

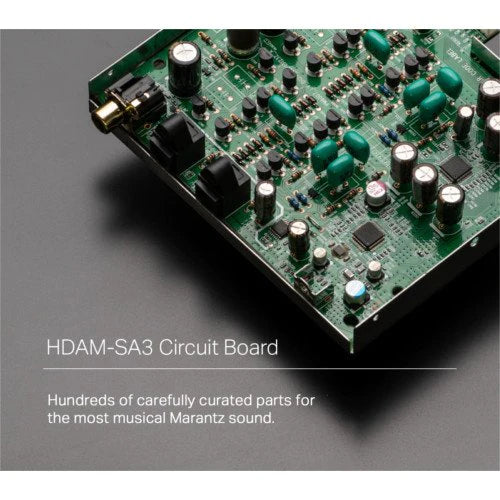

Marantz has developed our own discrete circuit boards to replace standard IC's. These HDAM's (Hyper Dynamic Amplifier Module) consist of discrete surface mount components with short mirror image L/R signal paths. These devices do exactly the same thing as the OP-amps, but outperform the regular IC Op-amps dramatically in terms of the Slew Rate and reduced noise level, resulting in more dynamic, accurate and detailed sound. |
The PM6007 features a new HI-Res D/A Conversion. IT is equipped with a reference class AK4490 D/A converter which provides up to 192-kHz/24-bit resolution for optimum fidelity with your Hi-Res Audio File Types |
 |
 |
 |
| Improved Integrated Phono Input |
Digital Filter for Optical/Coaxial input |
The Most Musical Sound |
| Marantz integrated amplifiers have historically featured high-quality phono stages. The PM6007 remains faithful to that legacy, leveraging the newly designed circuit introduced with the PM7000N - one that integrates a FET (field-effect transistors) in the input stage. This technology delivers high input impedance, eliminates the need for AC coupling capacitors, simplifies the signal path, and lowers distortion and noise which vastly the overal signal purity. |
The PM6007 introduces a new digital filter for Optical and Coaxial inputs. This two-mode filter (Filter 1/Filter2) allows optimized reproduction of digital music content using the New AK4490 D/A converter to your taste. Filter 1 is a slow roll-off preset that improves deep stereo imaging and filter 2 is a sharp roll-off filter for more precise imaging reproduction. |
Engineered and Extensively tuned by a team drawing on more than 65 years of HIFI Expertise, the PM6007 provides exceptional performance for your audio collection. Whether digital or analogue, enjoy the most musical sound from any source |
Specifications
Features
Channels 2
Current Feedback Topology •
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium • / - / -
Digital in: USB-B / optical / coaxial / USB-A - / 2 / 1 / -
Sample Rate digital In 192 kHz / 24-bit
DAC chip AK4490
HDAM version SA3
Power Transformer: Toroidal / El • / -
High Grade Audio Components •
Customised Components •
Symmetric PCB Layout -
Aluminium extrusion heat sink •
Copper plated chassis -
Balance / Bass / Treble / Loudness • / • / • / -
Other
Marantz Musical Digital Filtering •
Linear Drive Power Supply •
Liniear volume control •
BI-AMP and Multichannel option -
Shottky diodes •
Source Direct •
Power Amp direct -

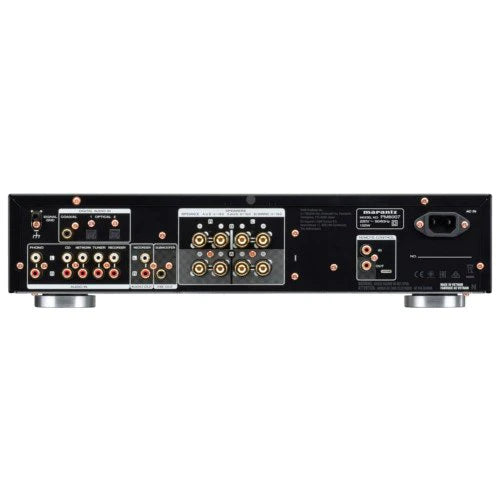

Inputs / Outputs
Audio Inputs 5
Digital in: USB-B / optical / coaxial / USB-A - / 2 / 1 / -
Phono Input: MM / MC • / -
Audio Outputs 1
Balanced In / Out - / -
Pre-out / Main-in Subwoofer / -
Power Amp Direct IN -
Gold Plated Cinch •
Speaker A / B •
Speaker Terminals: Metal (Gold) Screw
Number of terminals 4
D-Bus •
Headphone Out •
Specifications
Power Output (8 / 4 Ohm RMS) 45 W / 60 W
Frequency Response 10 Hz - 70 kHz
Total Harmonic Distortion 0.08 %
Damping Factor 100
Input Sensitivity: MM 2.2 mV / 47 kOhm
Input Sensitivity: MC –
Signal to Noise Ratio: MM/MC 83 dB / -
Input Sensitivity: High level 200 mV / 20 kOhm
Input Sensitivity: Balanced High level -
Signal to Noise Ratio: High level 102dB(2V input)
General
Metal Front Panel •
Power Consumption in W 155
Standby Consumption in W 0.3
Auto Power off •
Detachable Power Cable •

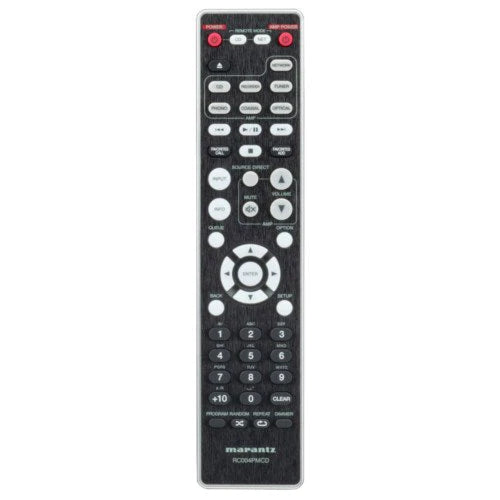

Remote Control RC004MCD
System Remote Function •
Maximum Dimensions (W x D x H) in mm 440 x 370 x 105 mm
Weight in kg 7.8kg
Carton Maximum Dimensions (W x D x H) in mm 517 x 468 x 189
Carton Weight (incl. product) in kg 9.7
