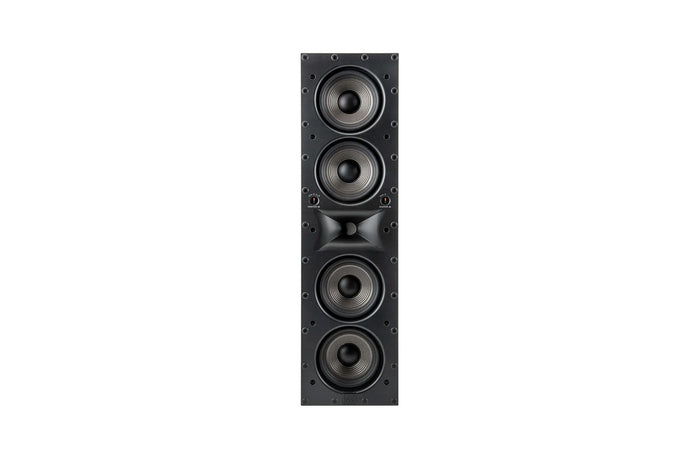

JBL Studio 6 Theater Quad 5.25 Inch 2-way Single In-Wall LCR Speaker
Experience the epitome of premium home audio with the JBL Studio 6 Theater Single In-Wall LCR Speaker, designed to deliver floorstanding speaker impact in a sleek, space-saving format.
Elevate your audio with studio-inspired quality
Benefit from decades of pro-sound expertise embodied by JBL. The Studio 6 Theater, influenced by the iconic M2 Master Reference Monitor, ensures a superior listening experience. Revel in the richness of adjustable high and low frequencies, powerful sound, and an inconspicuous design that seamlessly integrates into any space.
Fine-tune your audio environment
Craft your ideal audio ambiance with the Studio 6 range's adjustable tweeter and woofer settings. Personalize the tweeter for optimal high-frequency resonance, catering to your room's acoustics. Whether your space is heavily furnished or minimalist, control the bass response to prevent overpowering, ensuring a harmonious sonic experience.
Unrivaled top-end response with HDI technology
Immerse yourself in studio-quality top-end response with the Compression Driver featuring High Definition Imaging (HDI) waveguide technology. Derived from professional equipment, this tweeter guarantees dynamic, uncompressed performance, spreading sound widely for a captivating, immersive listening experience.
Powerful bass rivaling floorstanders
Experience deep and impactful bass without the visual footprint of large floorstanding speakers. The Studio 6 Theater boasts four 5.25-inch PolyPlas woofer units, delivering impressive bass depth and punch. With an impressive 96dB sensitivity, this speaker achieves signature JBL sound efficiency without the need for a massive amplifier or high volume levels.
Effortless and stylish integration
Facilitate a hassle-free installation with a user-friendly dog-leg system, accommodating various wall types. Once in place, the low-profile grille with 'zero bezel' exudes discreet elegance. Customize further by spray painting the grille to match your room's colour, seamlessly blending the speaker into your decor.
Immerse yourself in true cinema sound at home, eliminating space constraints with the JBL Studio 6 Theater. Elevate your audio experience with this discreet yet powerful in-wall speaker system.
Technical Specifications
| Enclosure Type |
Open |
| Output |
Mono |
| Power Type |
Passive |
| Shape |
Rectangular |
| Compatible Amplifier (Watts RMS) |
50 - 150 |
| Frequency range (Hz) |
65 - 20000 |
| Nominal Impedance (Ω) |
6 |
| Max Power High (Watts) |
100 |
| Sensitivity (dB) |
96 |
| Cutout Dimensions (mm) |
642 x 157 |
| Mounting Depth (mm) |
95 |
| Overall Dimensions (mm) |
674 x 188 |
JBL Studio 6 Series Spec Sheet
