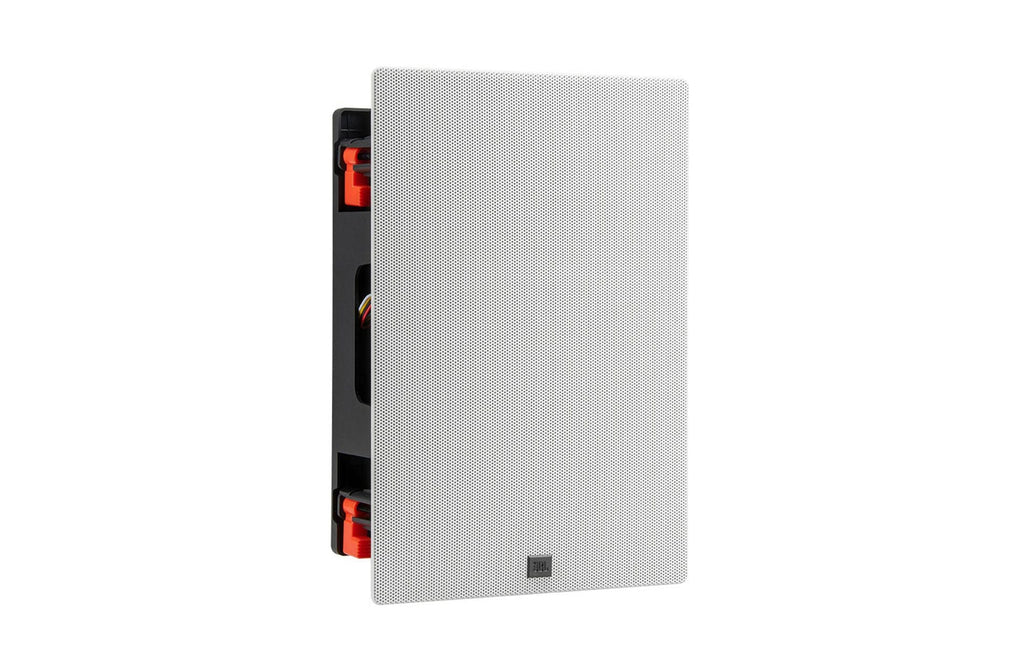

JBL Studio 6 6IW 6.5 Inch 2-way Single In-Wall Speaker
Elevate your audio experience with premium quality sound that is studio-inspired, delivering a perfect balance of high and low frequencies within a discreet, in-wall package.
Experience Studio-Quality Sound
Benefit from JBL's extensive studio expertise, as the Studio 6 6IW mirrors the legacy of the renowned M2 Master Reference Monitor. Immerse yourself in dynamic, studio-inspired sound that resonates with decades of professional sound quality knowledge.

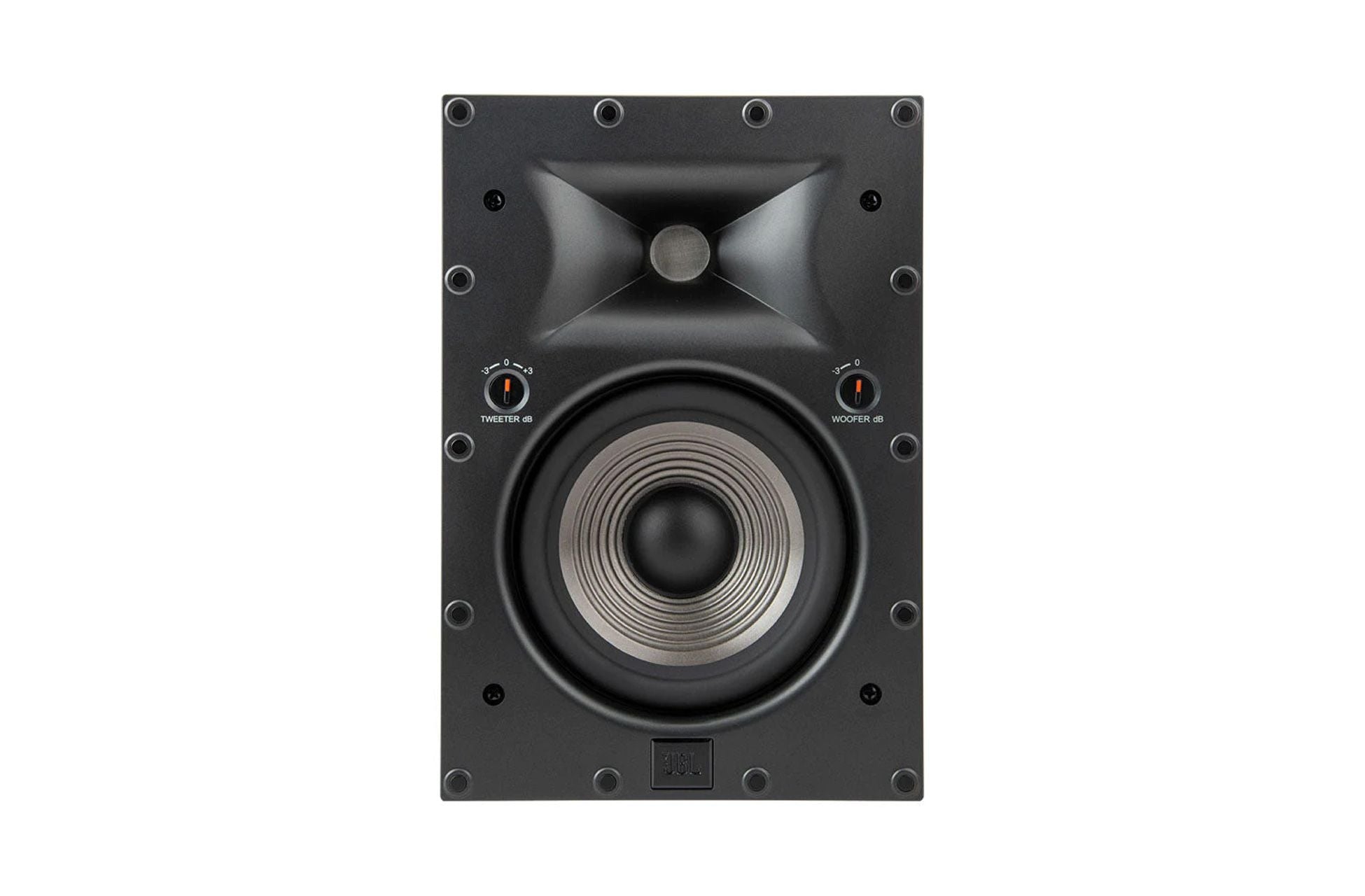

Customizable High and Low Frequency Levels
Tailor your audio to perfection with adjustable tweeter and woofer settings. Fine-tune the tweeter to harmonize with your room's acoustics, adapting to the characteristics of your space. The bass setting allows you to control and balance the bass response, preventing it from overshadowing the richness of your music.
Studio-Inspired Compression Driver with HDI
Delight in the top-end response powered by a studio-grade Compression Driver, a feature typically found in professional equipment. This tweeter delivers an uncompressed, dynamic performance, enhanced by the High Definition Imaging (HDI) waveguide. Immerse yourself in a wide soundstage that emanates the immersive 'wall of sound' synonymous with top-tier speakers.
Precision in Bass Reproduction
Crafted with a 6.5-inch PolyPlas woofer unit, the Studio 6 6IW reproduces the accuracy of studio sound. The high rigidity of the cone minimizes distortion, ensuring a lively and punchy sound even at higher volumes. With a 91dB sensitivity, this highly efficient speaker delivers the distinctive JBL sound without the need for a powerful amplifier or excessive volume levels.

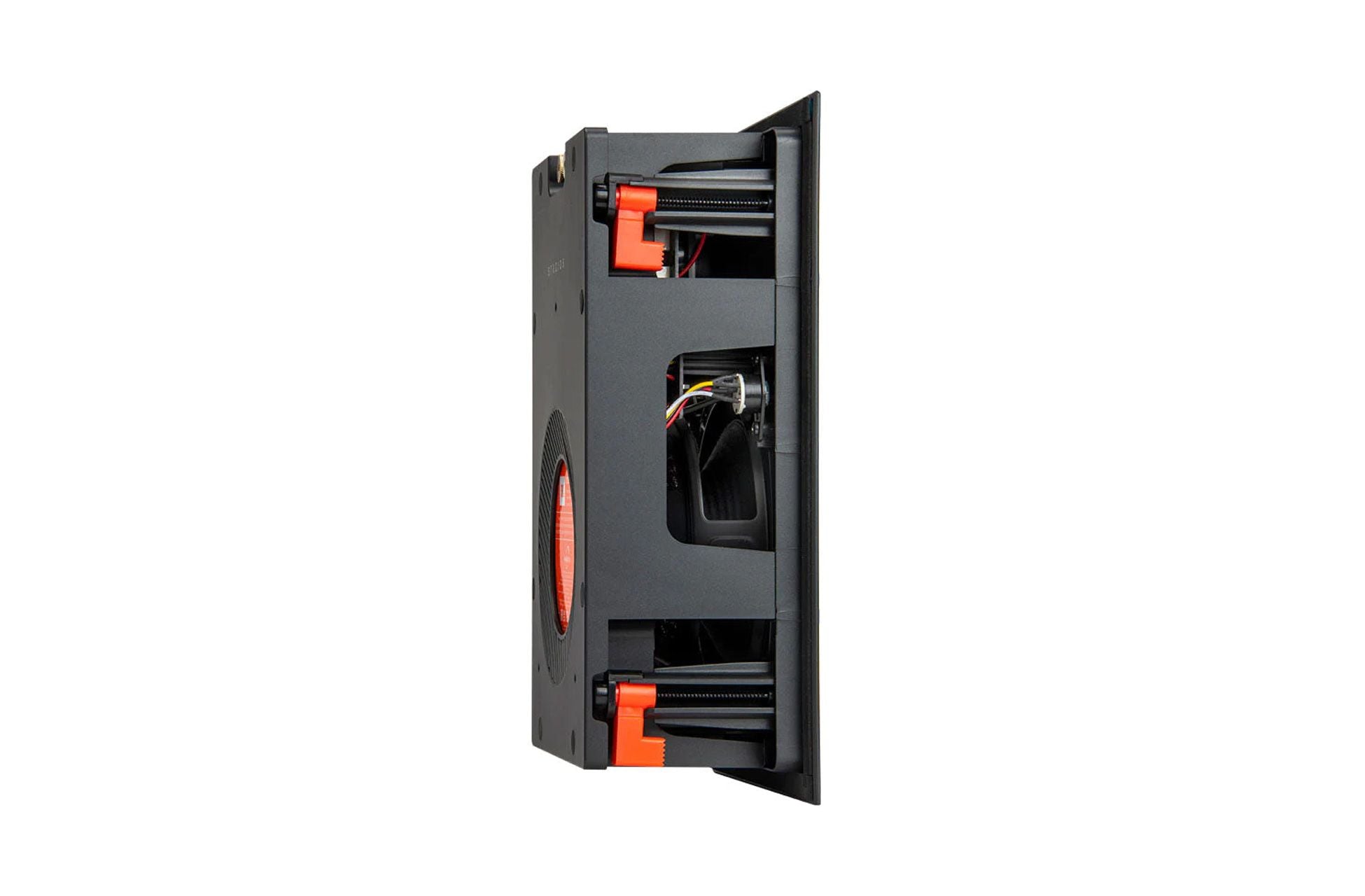

Effortless and Stylish Installation
Experience hassle-free installation with the user-friendly dog-leg installation system, accommodating various wall types. Once in place, the low-profile grille with 'zero bezel' provides a sleek, discreet aesthetic. Personalize your speaker by spray painting the grille to match your room's color, seamlessly integrating it into your space.
Immerse yourself in uncompromised sound quality with the JBL Studio 6 6IW in-wall speaker, combining exceptional performance with an unobtrusive design. Elevate your audio journey with JBL's signature sound delivered through this innovative in-wall speaker.
Technical Specifications
| High Frequency Transducer |
1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide |
| Low Frequency Transducer |
6.5" (165mm) Polyplas® woofer |
| Nominal Impedance |
6 Ohm |
| Sensitivity (2.83V@1m) |
91dB |
| Power Handling |
50W RMS (200W Dynamic) |
| Recommended Amplifier Power (Full Range) |
50 - 70W |
| Frequency Response |
45Hz - 20kHz |
| Crossover Frequency |
2.5kHz |
| Grille Dimensions (HxW) |
12in (305mm) x 8in (209mm) |
| Cutout Dimensions (HxW) |
11in (275mm) x 7in (180mm) |
| Mounting Depth |
3.74in (95mm) |
JBL Studio 6 Series Spec Sheet
