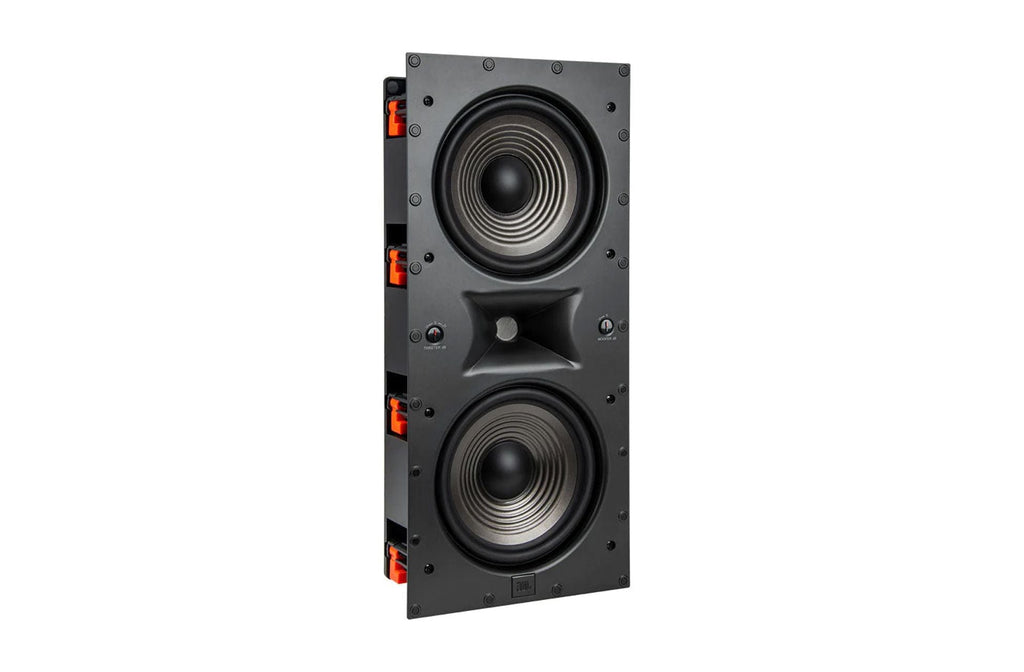

JBL Studio 6 66LCR Dual 6.5 Inch 2-way Single In-Wall LCR Speaker
Upgrade your home cinema experience with the JBL Studio 6 66LCR Single In-Wall LCR Speaker, a state-of-the-art audio solution designed for immersive entertainment. Crafted for in-wall installation, this speaker brings a superior studio-inspired sound to your space without the need for bulky external speakers.
Unleash Studio-Inspired Sound
Benefit from decades of professional sound expertise with JBL, a brand synonymous with top-tier audio quality. The JBL Studio 6 66LCR inherits its premium sound quality from the renowned M2 Master Reference Monitor, delivering dynamic audio reproduction while maintaining an inconspicuous design.
Tailor Sound to Your Space
Achieve the perfect audio balance for your room with the adjustable high and low frequency levels of the Studio 6 series. Fine-tune the tweeter and woofer settings to match your room's acoustics, ensuring optimal sound performance. Whether in a heavily furnished room or a minimalist space, customize the sound to suit your preferences.
Studio-Quality Top-End Response
Experience studio-grade high frequencies with the Compression Driver featuring High Definition Imaging (HDI) waveguide technology. This professional tweeter provides dynamic, uncompressed top-end performance, spreading sound evenly for a captivating auditory experience.
Powerful Signature JBL Bass
Immerse yourself in JBL's signature sound with the dual 6.5-inch PolyPlas woofer units of the Studio 6 66LCR. The dual bass cones deliver deeper, more powerful bass compared to single woofer designs, all within a sleek and narrow casing. With a high sensitivity of 91dB, this efficient speaker ensures a remarkable audio experience without the need for a powerful amplifier.
Effortless and Stylish Installation
Enjoy a hassle-free installation with the user-friendly dog-leg installation system, accommodating various wall types. Once installed, the low-profile grille with a 'zero bezel' design offers a discreet and stylish finish. Customize further by spray painting the grille to seamlessly blend with your room's color scheme, creating an aesthetically pleasing audio solution.
Elevate your home cinema with the JBL Studio 6 66LCR and bring the unparalleled sound of the studio to your entertainment space. Upgrade to premium audio quality without compromising on style and convenience.
Technical Specifications
| High Frequency Transducer |
1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide |
| Low Frequency Transducer |
Dual 6.5" (165mm) Polyplas® woofer |
| Nominal Impedance |
6 Ohm |
| Sensitivity (2.83V@1m) |
91dB |
| Power Handling |
50W RMS (200W Dynamic) |
| Recommended Amplifier Power |
50 - 70W |
| Frequency Response |
45Hz - 20kHz |
| Crossover Frequency |
2.5kHz |
| Grille Dimensions |
19in (473mm) x 8in (209mm) |
| Cutout Dimensions |
17in (443mm) x 7in (180mm) |
| Mounting Depth |
3.74in (95mm) |
JBL Studio 6 Series Spec Sheet
