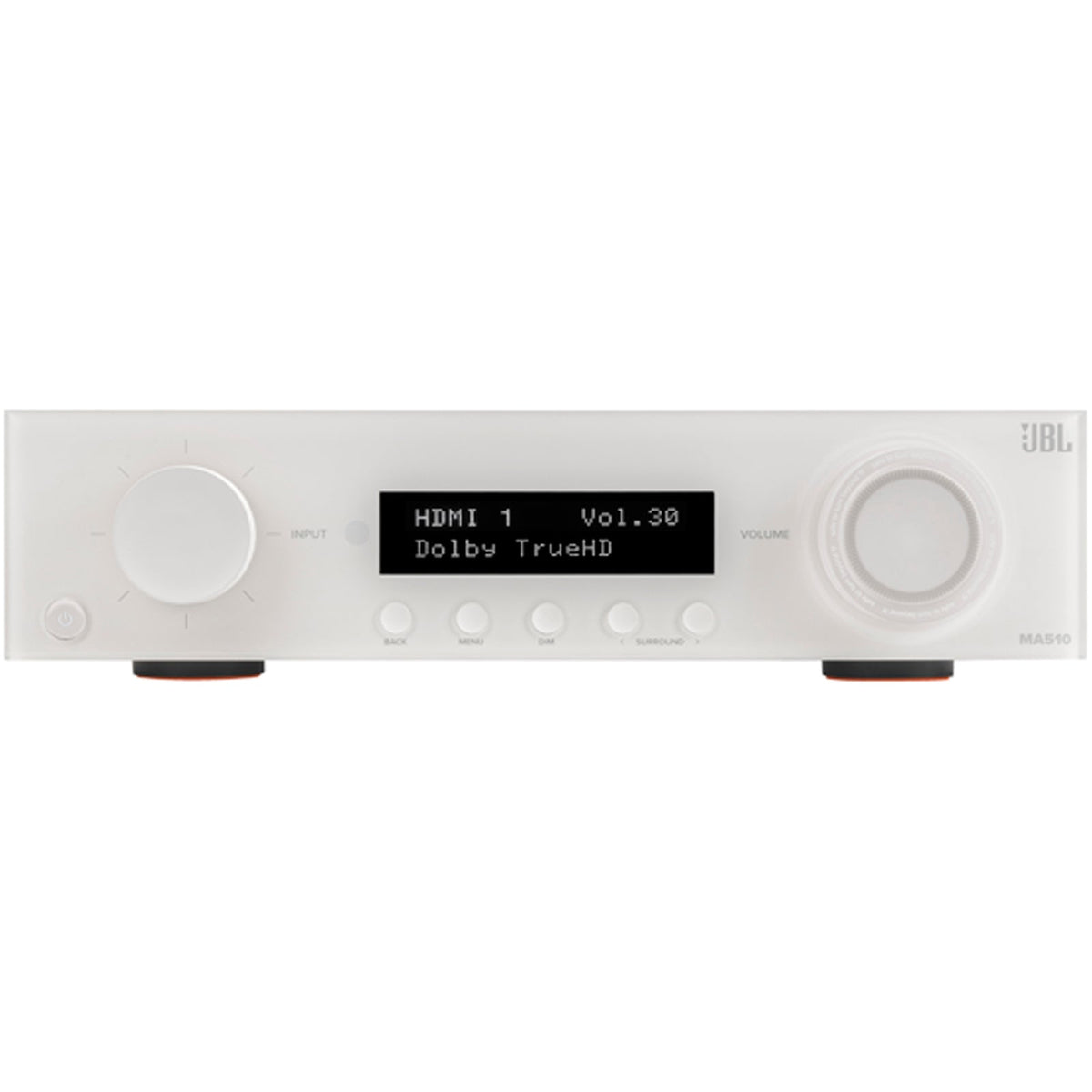

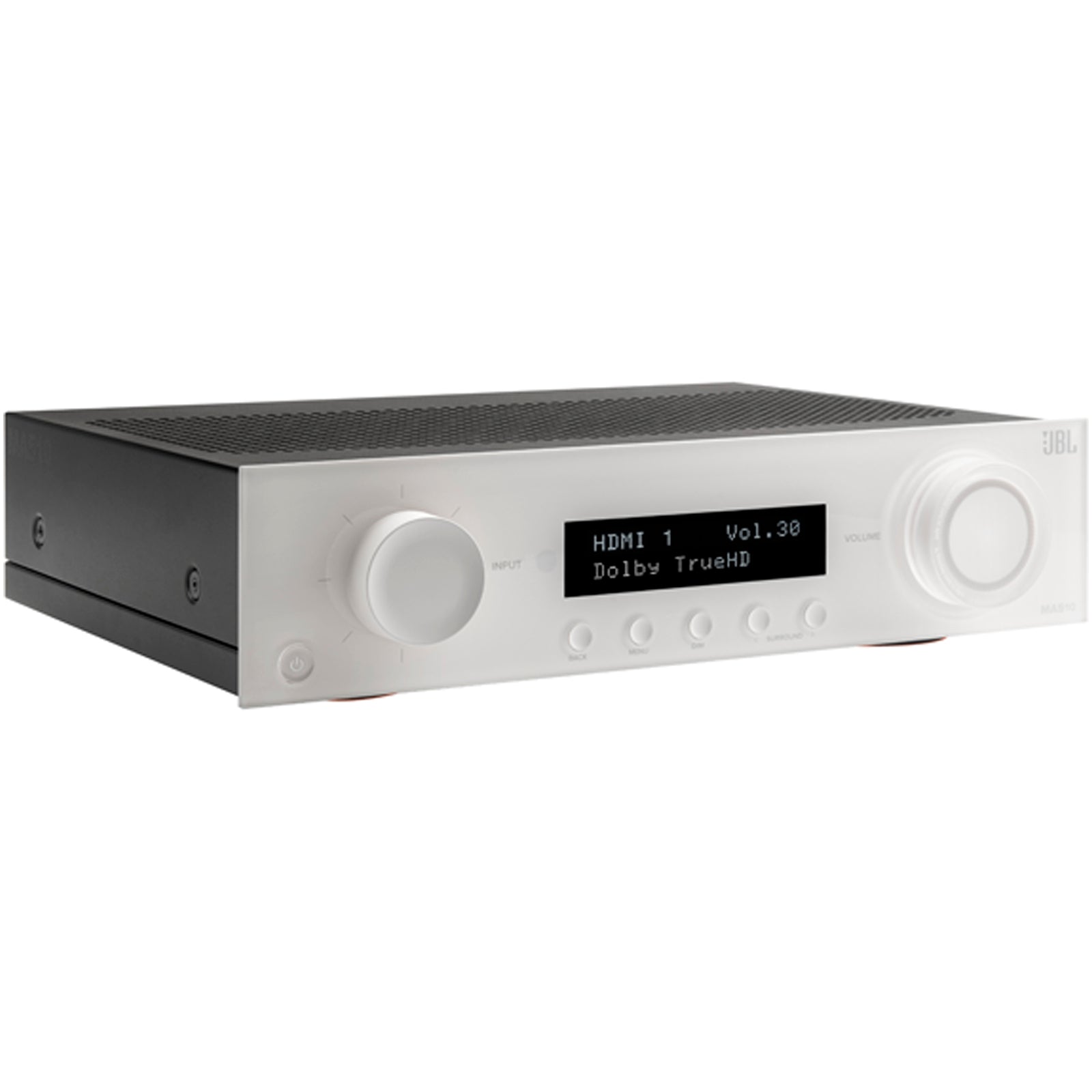

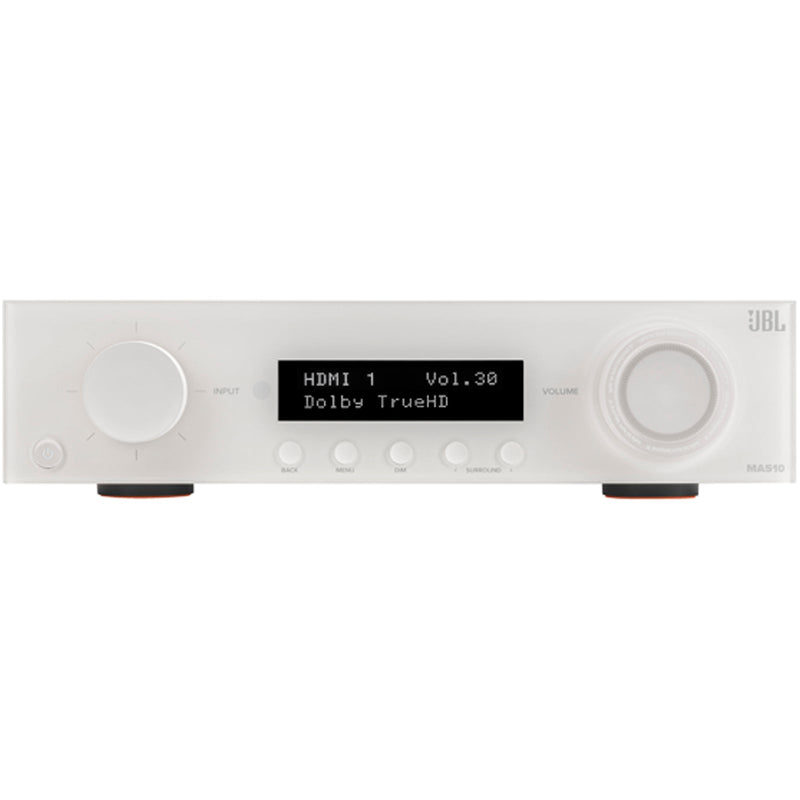

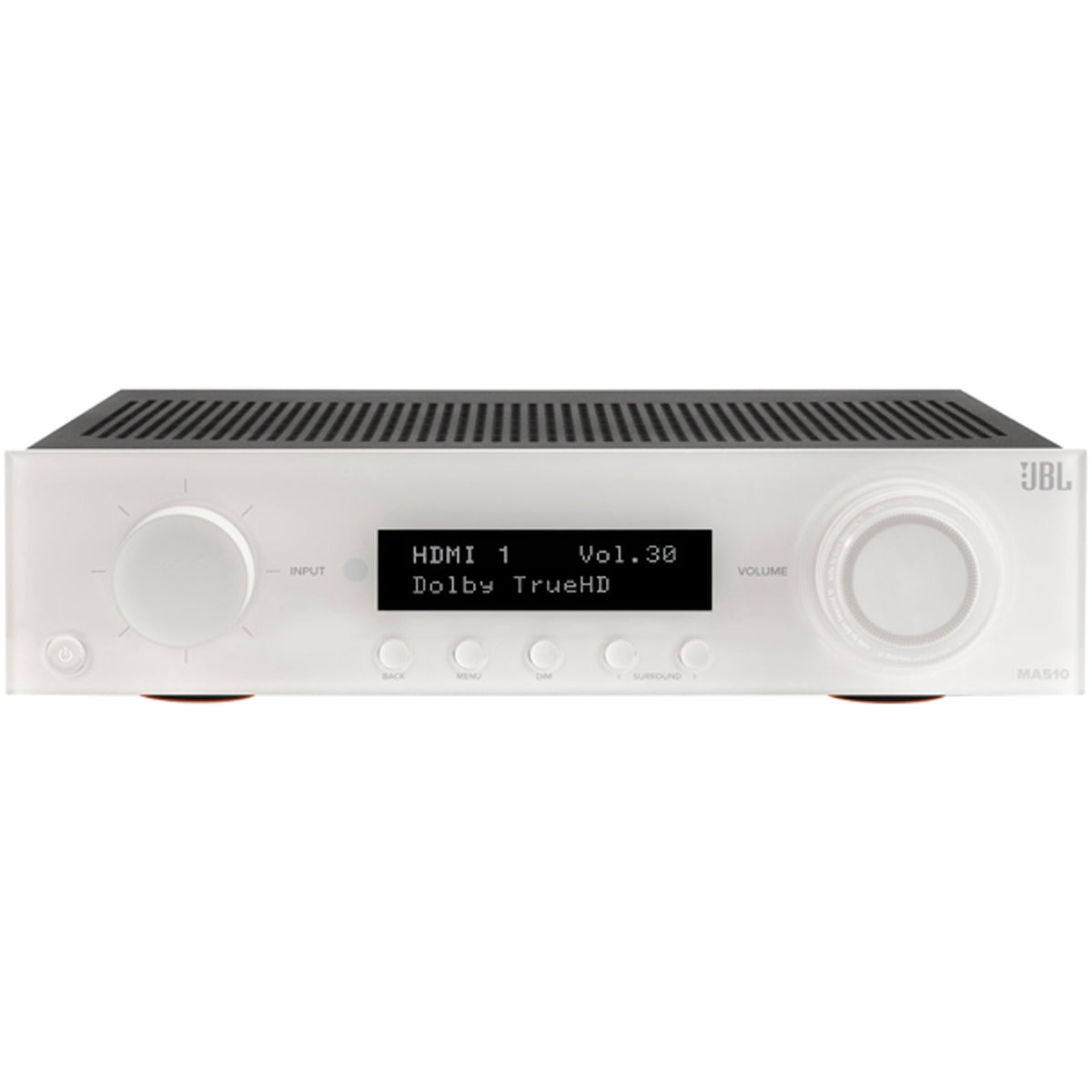

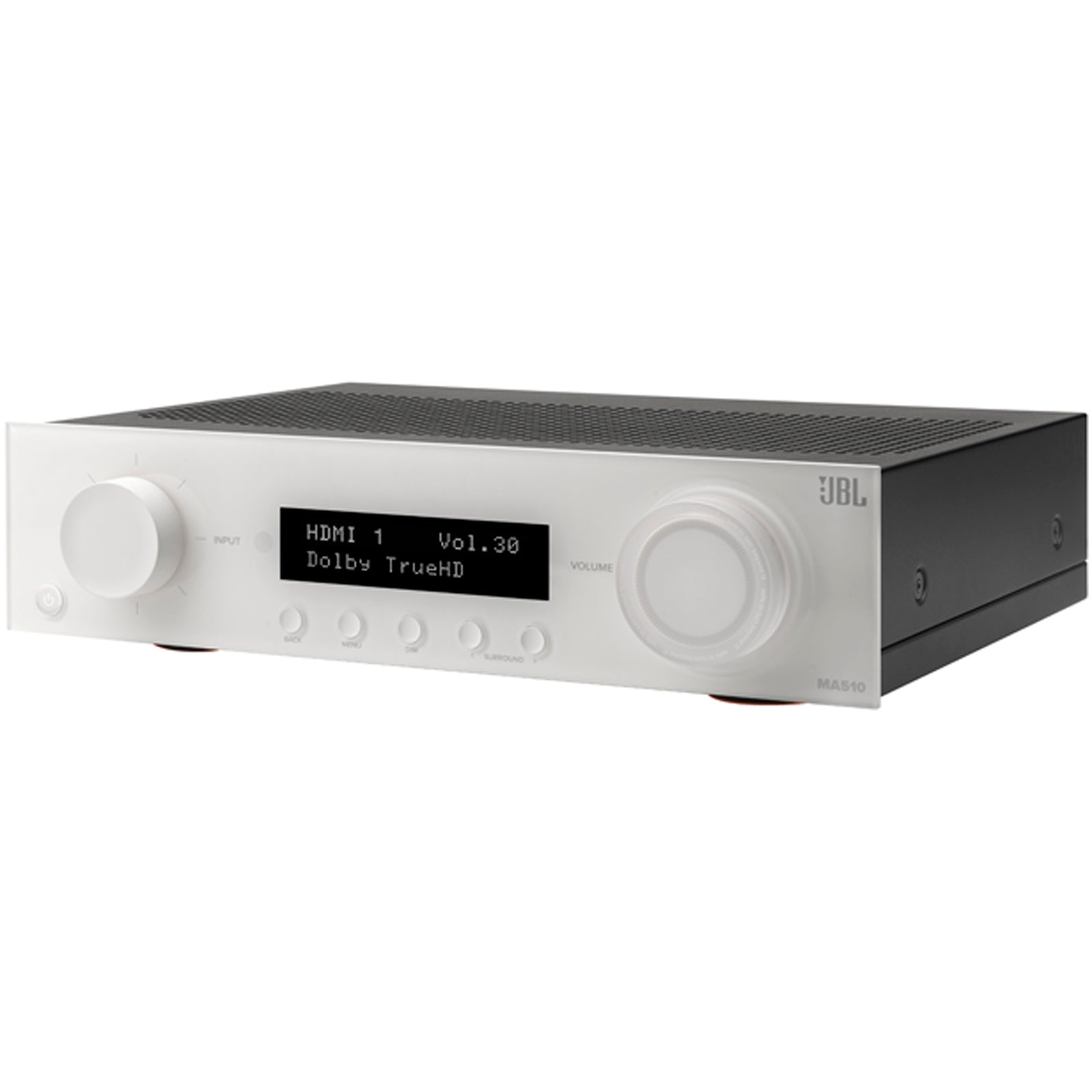

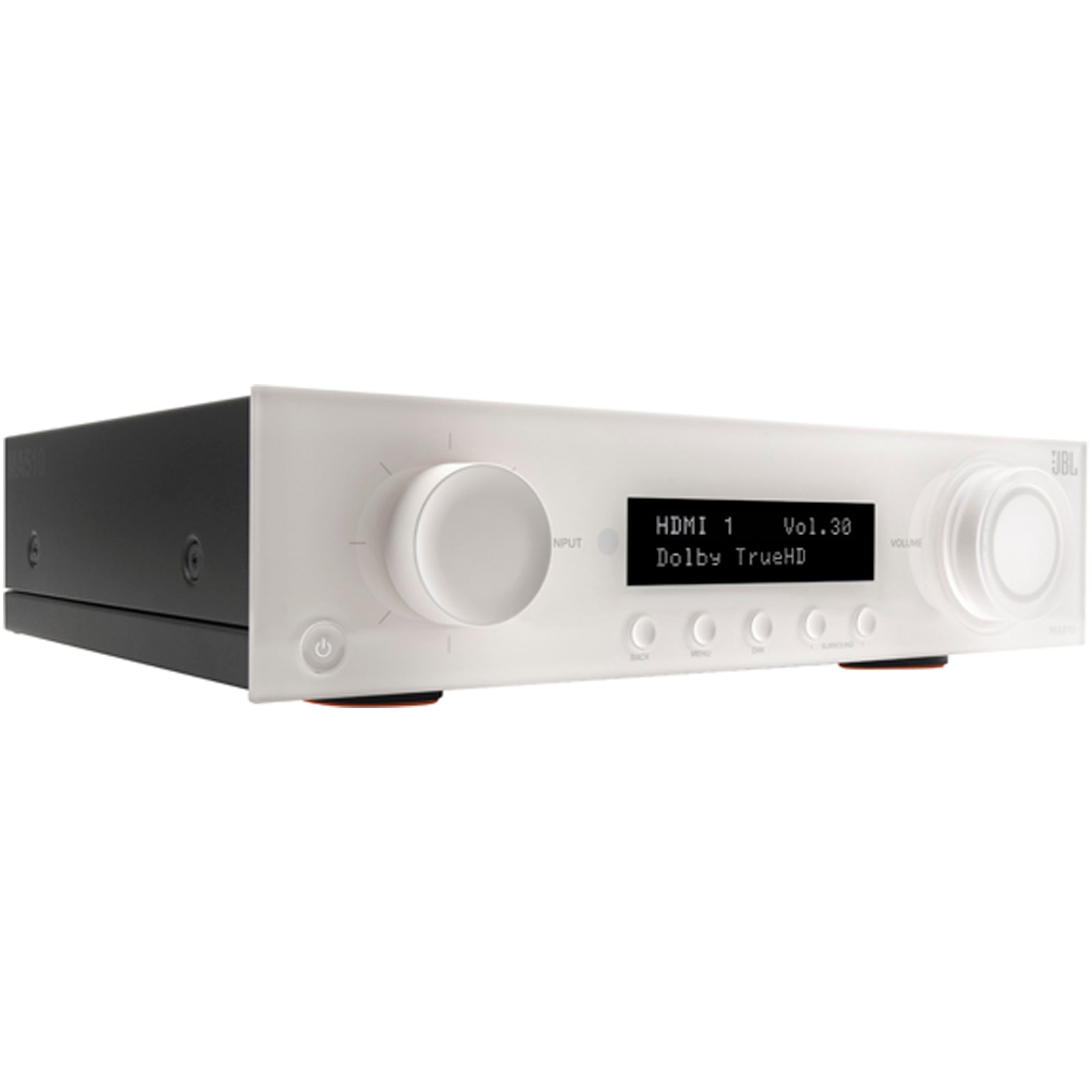

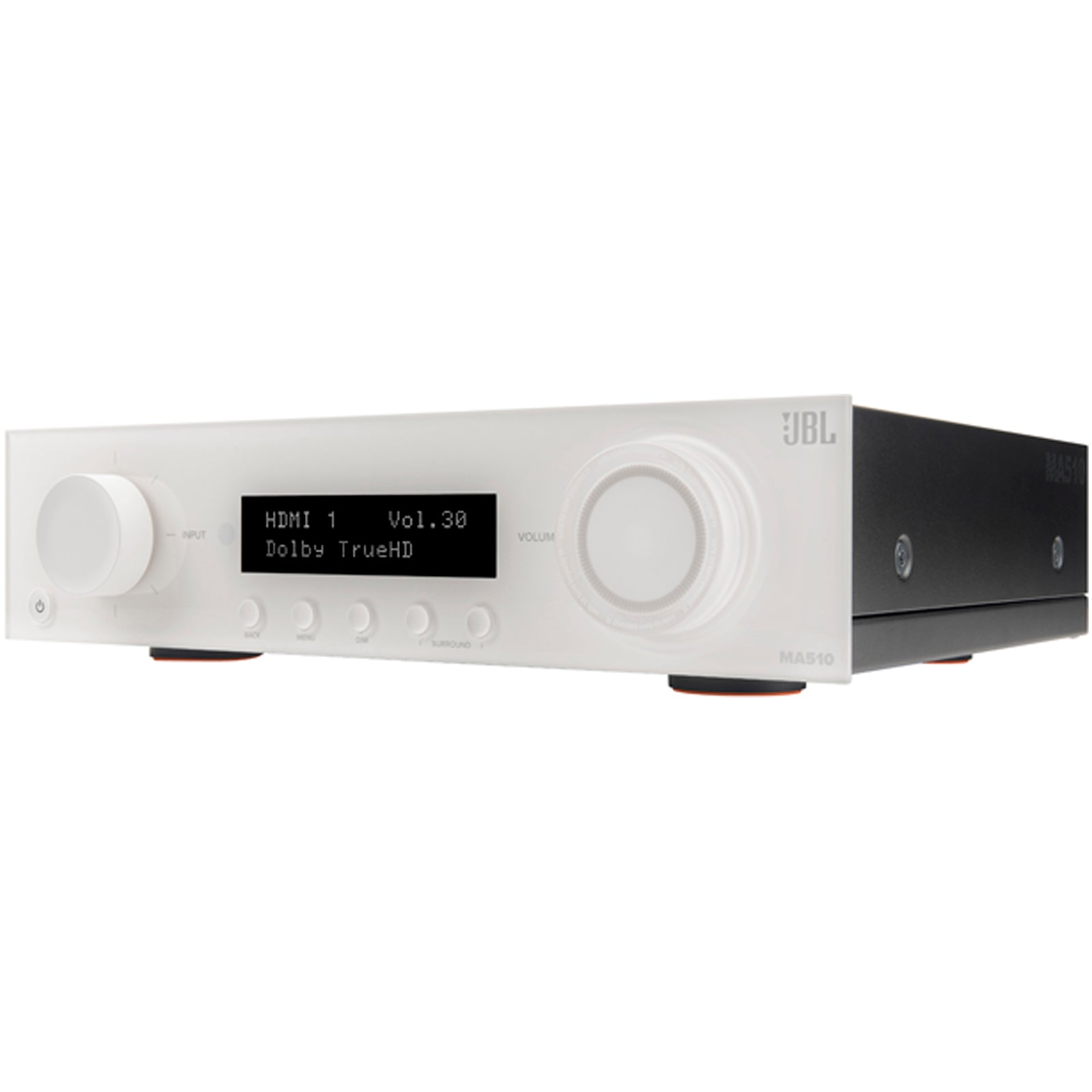

Elevate Your Audio Experience with the JBL MA510
Bring both music and movies to life with true high fidelity. The JBL MA510 AV receiver, part of the acclaimed JBL MA Series, offers exceptional audio and video quality. Built on a platform of fundamental connectivity and advanced features, the MA Series includes five models, each designed for high-performance sound with Class D amplification, Dolby and DTS decoding, and high-resolution 192kHz 24-bit DACs.
With premium audio quality and user-friendly design, the MA Series provides a range of input sources and listening modes. The sleek, modern appearance enhances any setup. The free EZ Set EQ app ensures easy room equalization, optimizing sound quality in under two minutes using any iOS or Android device. Experience true high fidelity with the JBL MA510 and transform your media enjoyment.
Features and Benefits of the JBL MA510
Stunning Audio and Video Performance
- High-performance 5.2 AV receiver that delivers stunning realism with the latest 4K & 8K video for the ultimate home cinema experience.
Intuitive Setup with a Minimalist Modern Design
- Seamless integration with smart TVs, gaming consoles, streaming, cable boxes, and more with 4 HDMI inputs, 1 & 2 outputs, plus eARC.
High-Performance Immersive Surround Sound
- Dolby Atmos and DTS
decoding, supports up to 7.1.2 or 5.1.4 channel configurations.
True High Fidelity
- Designed with a passion for music and movies, bringing both to life with true high fidelity.
Bluetooth and Network Streaming
- Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast).
On-Screen Setup and Operation
- On-screen display for easy system setup and operation (via HDMI).
Powerful Amplification
- Five channels of low noise Class D amplification for real-world power to all channels.
Specifications JBL MA510
| Feature |
Specification |
| HDMI eARC |
Yes |
| HDMI Audio Return Channel |
Yes |
| 8K HDMI input connectors |
4 (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz) |
| HDR 10+ |
Yes |
| Dolby Vision |
Yes |
| File format |
MP3 / MPEG-4 AAC: up to 48 kHz / 320kbps |
|
WMA: up to 48 kHz / 192kbps |
|
ALAC: up to 192 kHz / 24-bit |
|
FLAC: up to 192 kHz / 24-bit |
|
PCM / WAV / AIFF: up to 192 kHz / 24-bit |
| Pure Direct |
Yes |
| EZ Set EQ |
Yes |
| DA converter |
192kHz/24-bit |
| Channels |
5.2 |
| Rated Power @ 8Ω |
75 W RMS (20Hz – 20kHz, 2 channels driven, 0.5% THD max) |
| Rated Power @ 4Ω |
100 W RMS (20Hz – 20kHz, 2 channels driven, 0.5% THD max) |

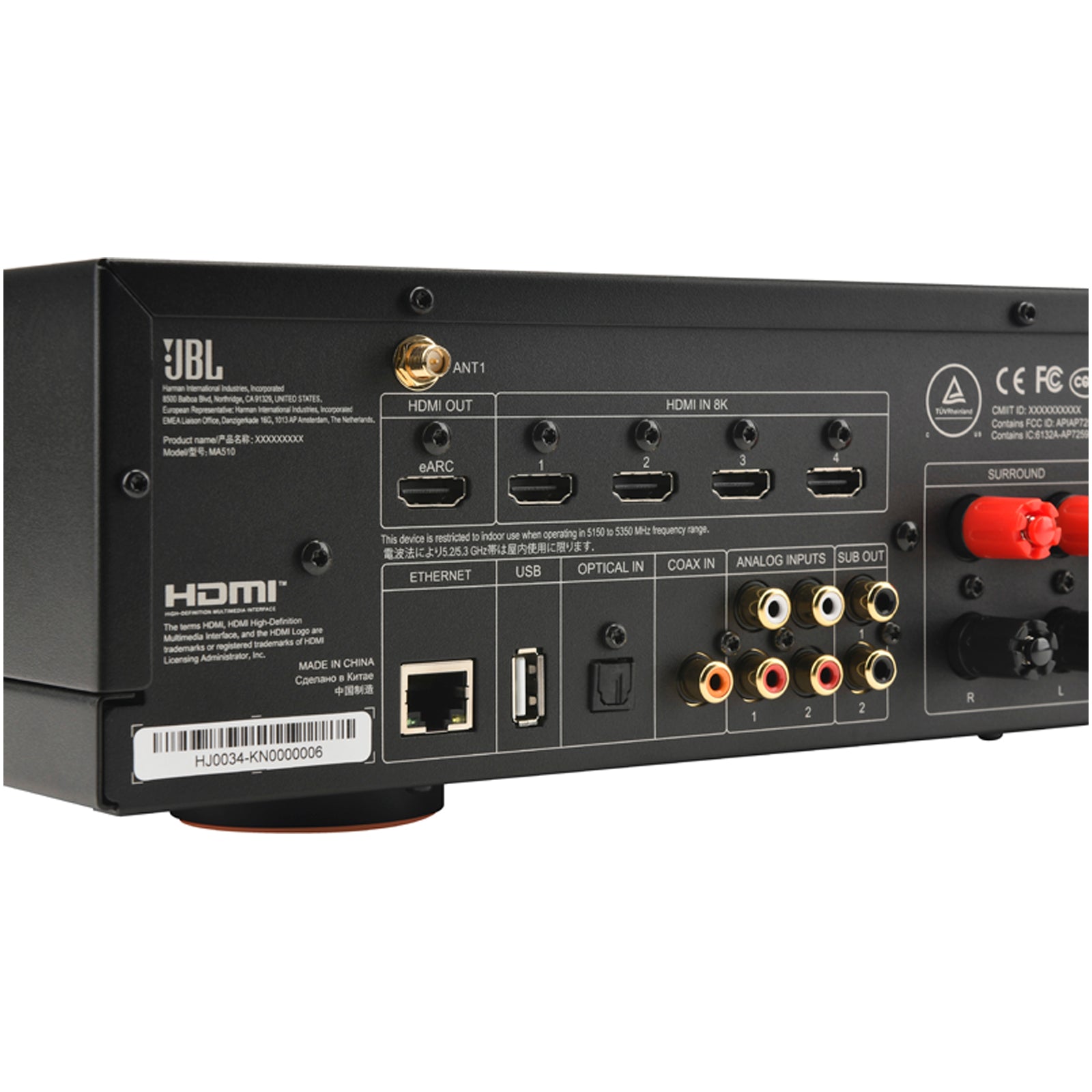

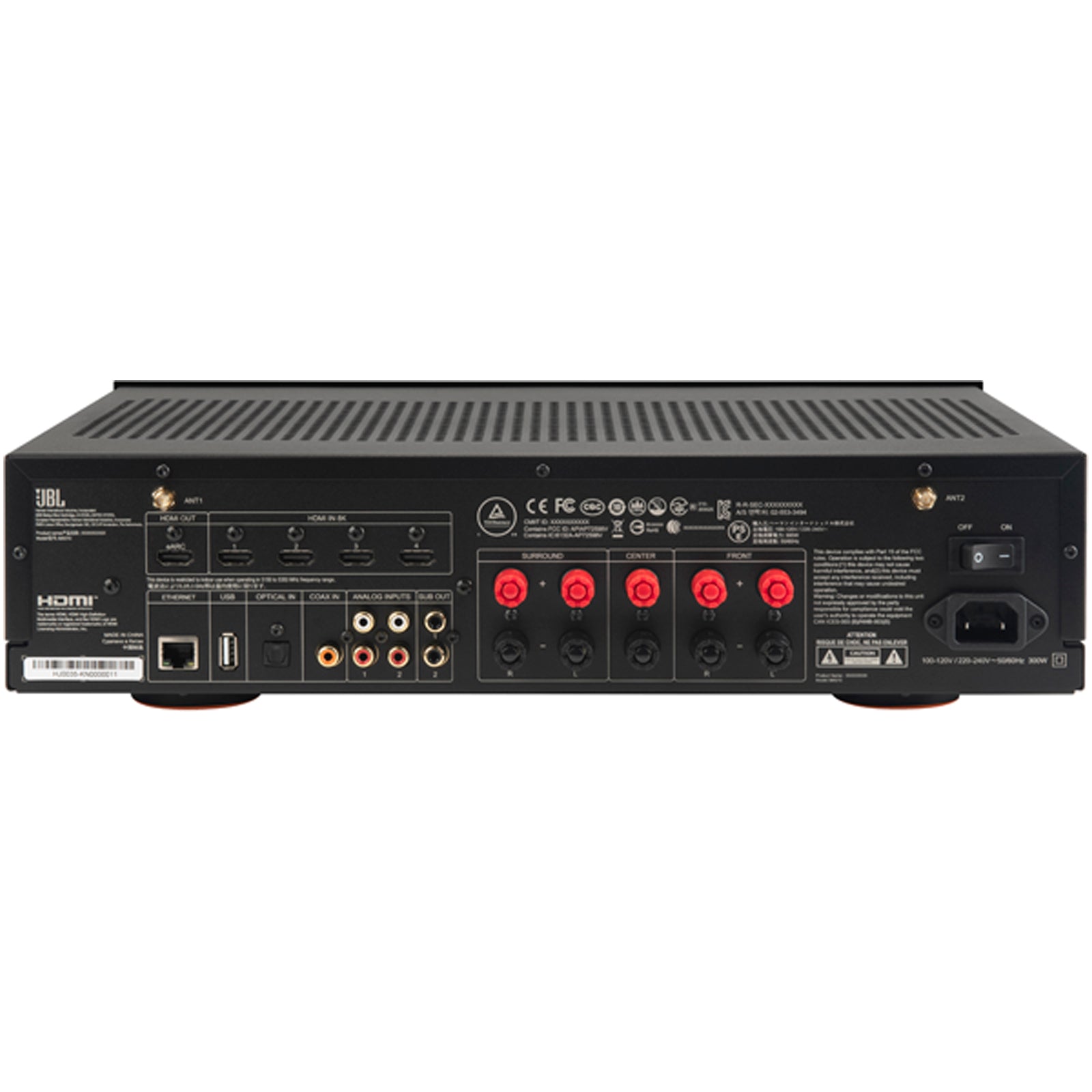

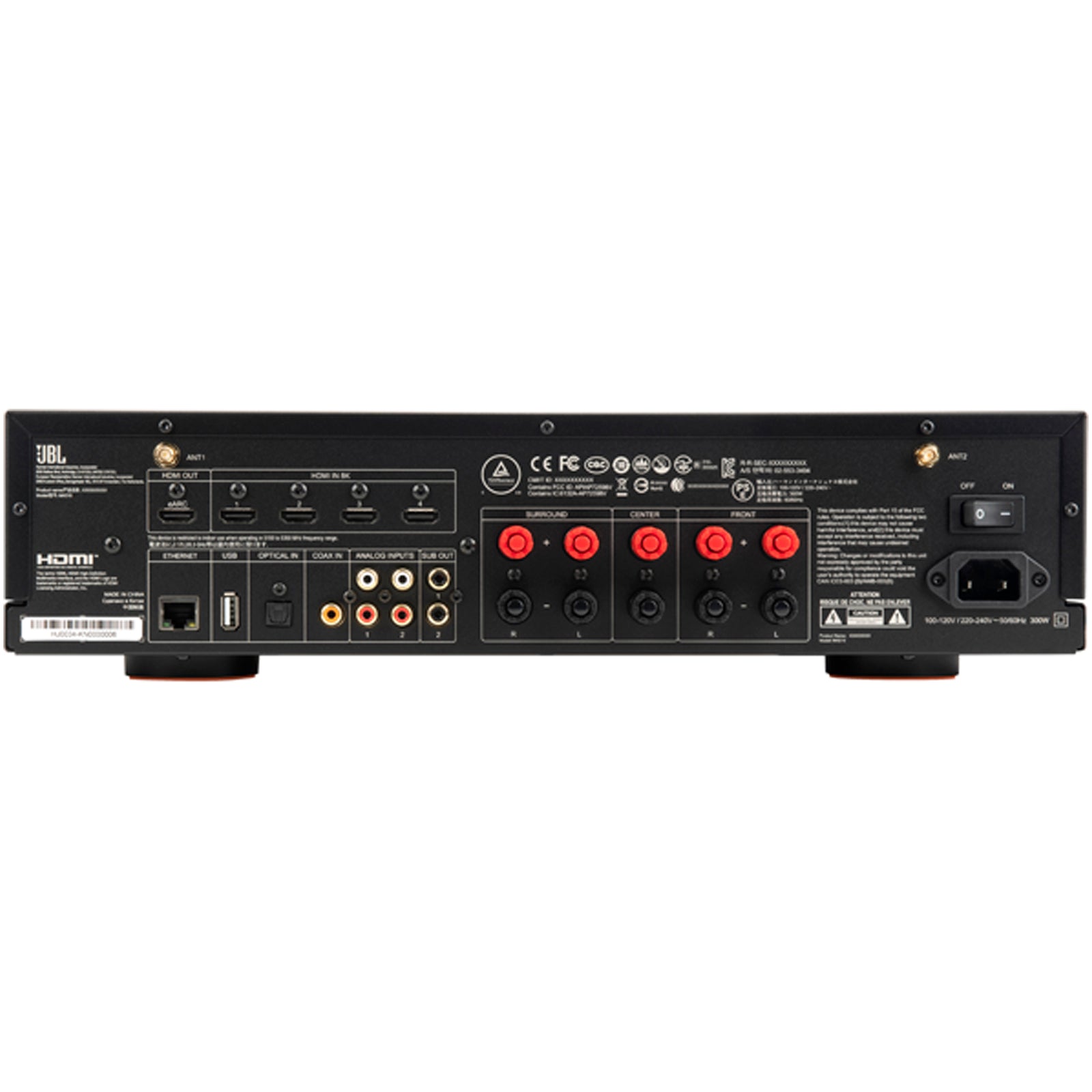

| HDMI Input/Output |
4 input / 1 output |
| Wi-Fi |
Yes (2.4/5GHz) |
| Bluetooth receive |
Yes (v4.1, Low Energy) |
| Digital Audio Input |
1 Coax, 1 Optical |
| Stereo analog input |
2 single-ended RCA |
| Pre-Out (single ended RCA) |
Subwoofer 1, Subwoofer 2 |
What’s in the box
JBL MA510

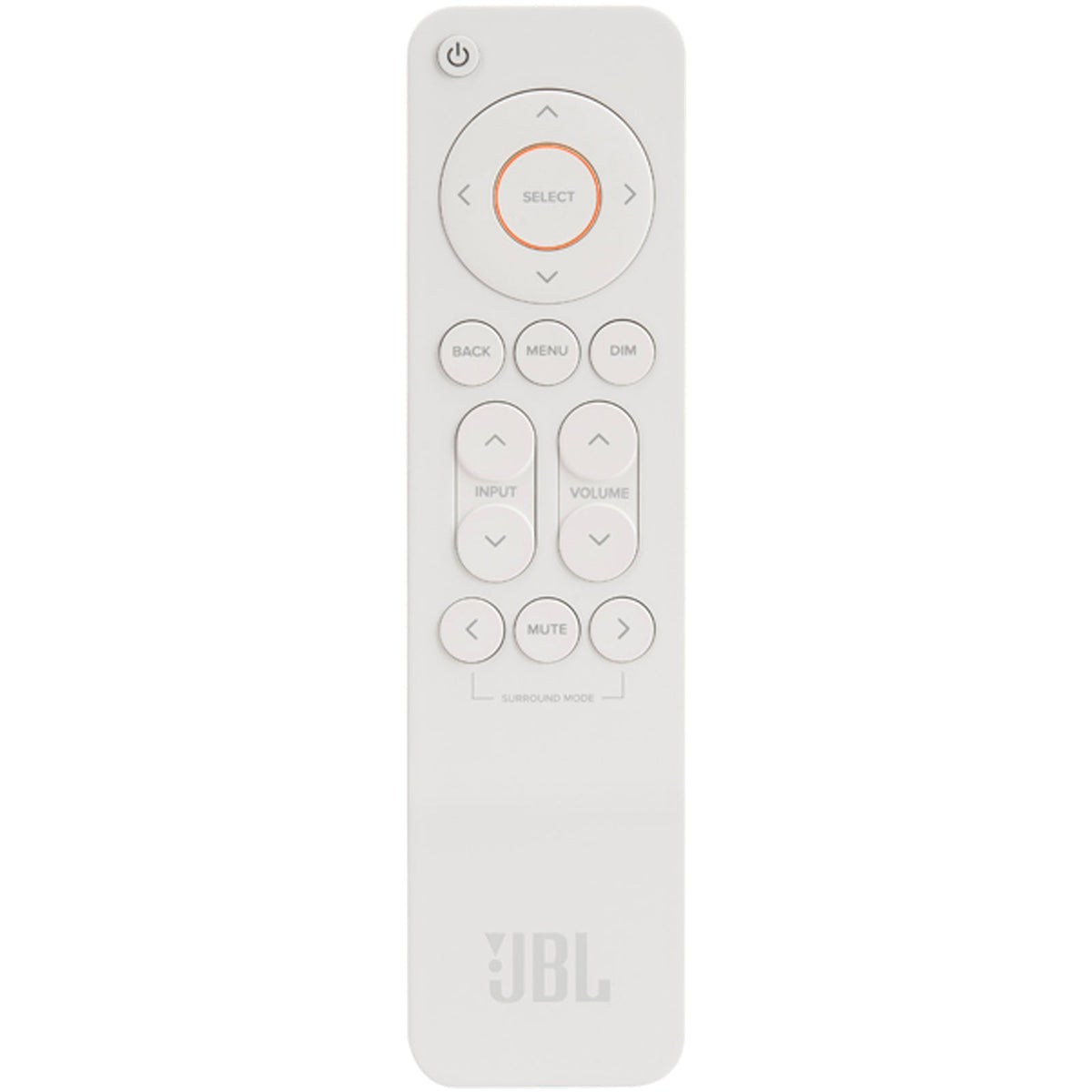

1x IR Remote
2x AAA batteries
1x Bluetooth antenna
1x Wi-Fi antenna
1x Power Cord
1x Quick-Start Guide
1x Safety Sheet
