JBL L42ms Integrated Music System Walnut
Introducing the JBL L42ms: Your Ultimate Integrated Music System
Experience the epitome of entertainment with the JBL L42ms Integrated Music System, meticulously crafted to complement today's dynamic lifestyle. This system effortlessly encapsulates the legendary JBL sound within a single, sophisticated cabinet. Unveiling the power behind the iconic JBL Quadrex grille, the L42ms features dual 4-inch (100mm) woofers and dual 0.75-inch (20mm) Aluminum dome tweeters with strategically positioned waveguides for an expansive and uniform sound field.
Boasting a sleek design, the L42ms comes with a curved grille, and tapered side edges, and is available in the timeless JBL real wood veneer finishes of Black Walnut or Natural Walnut.
Connectivity is seamless, offering two sets of analog stereo inputs (one pair RCA style and one 3.5mm input) and HDMI-ARC for TV connection, ensuring impeccable audio signal and control synchronization. The L42ms also facilitates streaming through Spotify Connect, Apple Airplay2™, Google Chromecast, or direct Bluetooth connection, providing versatile options for audio enjoyment.
Navigating through an advanced DSP engine, all audio signals undergo meticulous contouring before being delivered through a four-channel amplifier. This powerful system delivers 75W RMS to each woofer and 25W RMS to each tweeter, resulting in a total system power of 200W RMS. Control is at your fingertips, whether through the touch panel on the cabinet top, the included Bluetooth remote, or various music and automation apps.
Engineered at the Harman Center of Acoustics Excellence in Northridge, California, the L42ms leverages over 75 years of JBL's expertise in loudspeaker and electronic design. This system redefines convenience and sound quality, surpassing traditional component hi-fi systems. The L42ms is a unique blend of style, size, and performance, making it the unrivaled choice in the world of Music Systems.
Features
- Compact Integrated Music System
- 200W RMS Total System Power with 24bit/96kHz DAC
- Wired and Wireless Audio Streaming with Google Chromecast Built-in and Apple Airplay 2
- Bluetooth Wireless Audio Connectivity
- HDMI-ARC for TV Audio and RCA and 3.5mm Analog Stereo Inputs
- Selectable Sound-field Expander and Bass Contour Adjustment
- Roon Ready Device
- Works with SmartThings Certified

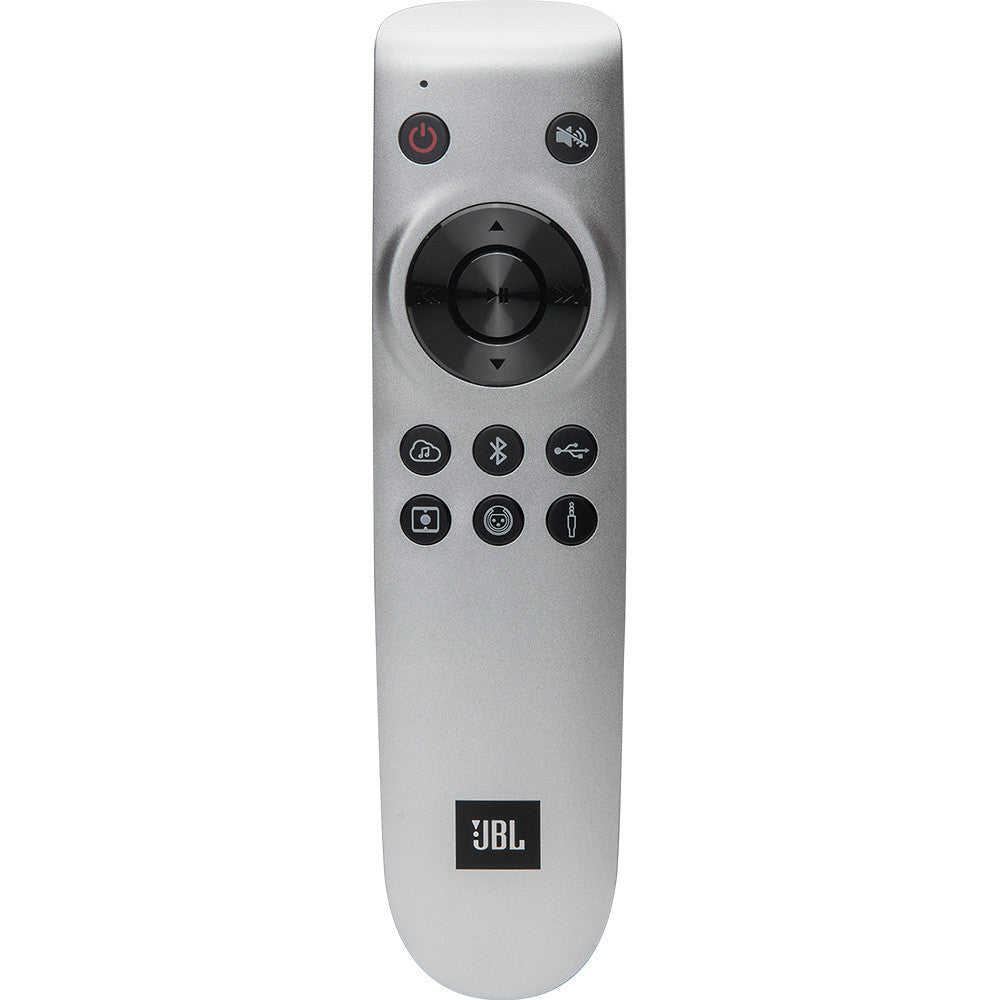

- Wireless Remote and JBL Premium Audio App
- Available in Black Walnut and Natural Walnut Furniture-grade Wood Veneer Finishes
Technical Specifications
- Type - Compact Integrated Music System
- Low Frequency - Dual 4-inch (100mm) Pure Pulp white cone woofers
- High Frequency - Dual 0.75-inch (20mm) Aluminum dome tweeters with waveguides
- Amplifier Power - 200W RMS Class D Total System Power, 4-Channel Amplification with 75W RMS to each woofer + 25W RMS to each tweeter Configured for Stereo Reproduction
- Frequency Response - 55Hz-25kHz (-6dB)
- Crossover Frequency - 5kHz
- Maximum SPL - 102dB @ 1m
- Sound Controls - Speaker placement boundary compensation
- Subwoofer Output - Autosensing w/ Auto-engage of 80Hz High Pass Filter
- Wireless Inputs - WiFi streaming
- Wired Inputs - HDMI ARC
- Supported Digital Audio Sample Rates (PCM 2CH) - Streaming
- Bluetooth Audio - Version 4.2 Profiles, SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Vido Remote Control Profile)
- Remote Control Type - BTLE Wireless
- Grille - Black foam Quadrex grille
- Enclosure - Front-ported tabletop style cabinet available in black walnut or natural walnut furniture-grade wood veneer
- Net Speaker Dimensions (HxWxD) - 6.4" x 24.3" x 9.2" (162mm x 617mm x 234mm)
- Net Product Weight - 26.3 lbs. (11.9kg)
- Shipping Unit of Measure - Each
- Gross Shipping Dimensions (HxWxD) - 11.1” x 27.0” x 14.2” (283mm x 685mm x 360mm)
- Gross Shipping Weight - 34.3 lbs (15.6 kg)
- AC Input Voltage - 100 - 240 VAC (+/-10%), 50/60Hz
JBL L42ms Specs Sheet
JBL L42ms Quick Start Guide
