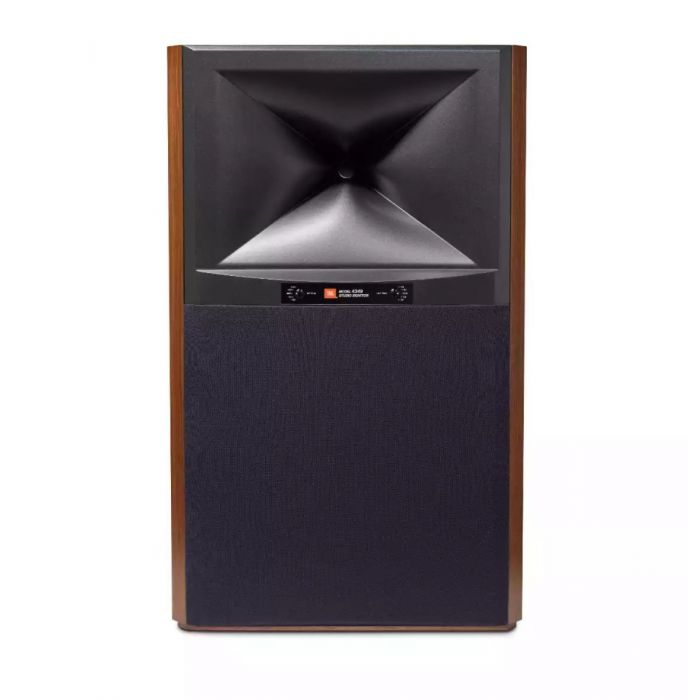

JBL 4349 Studio Monitor Loudspeakers Pair Walnut
Introducing the JBL 4349 Studio Monitor Loudspeakers Pair: Engineered for Precision Performance
Unveiling the JBL 4349 Studio Monitor, a pinnacle of compact yet powerful sound reproduction technology. Crafted around the innovative D2415K dual-1.5" compression driver and a 12" cast-frame Pure-pulp cone woofer, this studio monitor redefines audio excellence.
Advanced Acoustic Engineering
Meticulously crafted at JBL's renowned California acoustic facility, the 4349 Studio Monitor epitomizes cutting-edge JBL acoustic prowess. Boasting a 2-way design enriched with High-Definition Imaging (HDI) horn technology and the D2415K dual 1.5" compression driver, along with a 12" pure-pulp cone woofer, this monitor guarantees unparalleled dynamics and precise sound reproduction.
Revolutionary High Definition Imaging
Experience sound like never before with JBL's groundbreaking High-Definition Imaging horn geometry. Painstakingly developed for optimal high-frequency detail and uniform directivity, this technology ensures seamless in-room response, both on and off-axis, for an immersive audio experience.
Innovative Compression Driver
The JBL D2415K compression driver represents the pinnacle of audio innovation, drawing from JBL Professional's acclaimed “D2” transducer range. Featuring lightweight polymer annular diaphragms and advanced V-shaped geometry, this driver delivers exceptional dynamics, accuracy, and minimal distortion, setting new standards in audio excellence.
Tailored Tonal Adjustment
Fine-tune your listening experience with precision using the high-frequency and ultra-high-frequency tonal adjusters. Working in harmony with an advanced crossover network design, these controls offer customizable sound optimization to suit any environment or preference.
Powerful Driver Array
Harnessing core JBL engineering techniques, the 4349's 12" woofer ensures high output with minimal distortion. Equipped with a 3" long-throw voice coil and dual opposing spider dampers, this woofer delivers maximum performance with reduced distortion for pristine audio playback.
Crafted for Acoustic Excellence
Built with meticulous attention to detail, the 4349's enclosure features 1-inch thick walls for exceptional acoustic stability. Its bass reflex design incorporates dual front-firing, computer-optimized flared ports for enhanced low-frequency response. Adorned with a classic JBL studio monitor design, the cabinet is finished in luxurious Walnut or Black veneers, with a choice of blue(walnut) or black cloth grille, exuding timeless elegance.
Secure Connectivity Options

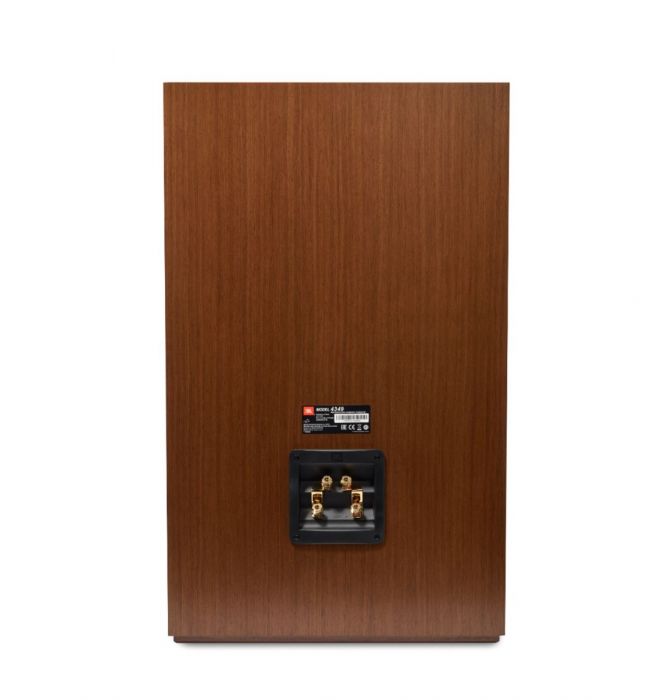

Equipped with dual sets of gold-plated binding posts, the 4349 offers secure connections and flexible setup configurations, including single-ended or bi-wire/bi-amplified connections, ensuring versatility to meet your audio needs.
Technical Specifications
| Type |
2-way monitor loudspeakers |
| Low Frequency Driver |
12" (300mm) Pure Pulp cone woofer (JW300PG-8) |
| High Frequency Driver |
D2415K, 1.5-inch (37.9mm) annular ring, Teonex® diaphragm compression driver with advanced HDI™ geometry horn molded in Sonoglass |
| Recommended Amplifier Power |
25 - 200 WRMS |
| Impedance |
8 Ohm |
| Loudspeaker Sensitivity |
91 dB/2.83V/1m |
| Frequency Response |
32 Hz - 25 kHz (-6 dB) |
| Coverage Angle, -6dB @ 20kHz |
80 x 70 Degrees (Hor x Vert) |
| Coverage Angle, -6dB @ 10kHz |
100 x 100 Degrees (Hor x Vert) |
| Crossover Frequency |
1.5 kHz |
| Enclosure Type |
V-braced front-ported cabinet |
| Grille Features |
Monitor style to match horn mating features, supplied in dark blue (with walnut cabinet) and black (with black cabinet) |
| HF Tone Control |
-1 dB to +1 dB in 0.5 dB increments from 1.5 kHz to 6 kHz |
| UHF Tone Control |
-1 dB to +1 dB in 0.5 dB increments from 5 kHz on up |
| Input Type |
Dual sets of gold-plated binding posts with shorting straps |
| Warranty |
5 Years |
| Product Weight |
83 lb (37.7 kg) |
| Dimensions with Grille |
29" H x 17.5" W x 12.5" D (736.6mm x 444.5mm x 317.5mm) Note grille thickness is 1-inch (25.4mm |
