Denon HEOS DRIVE HS2 - 4 Zone Whole Home Audio Distribution System HEOSDRIVEHS2BKEM

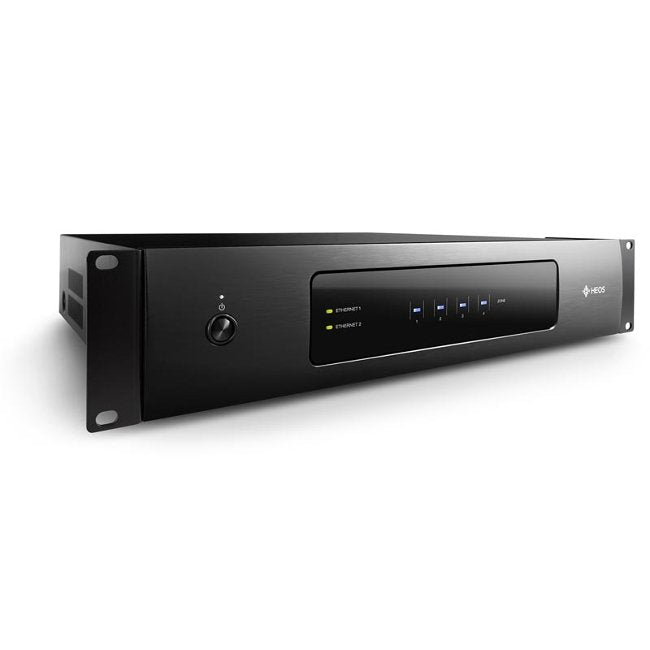

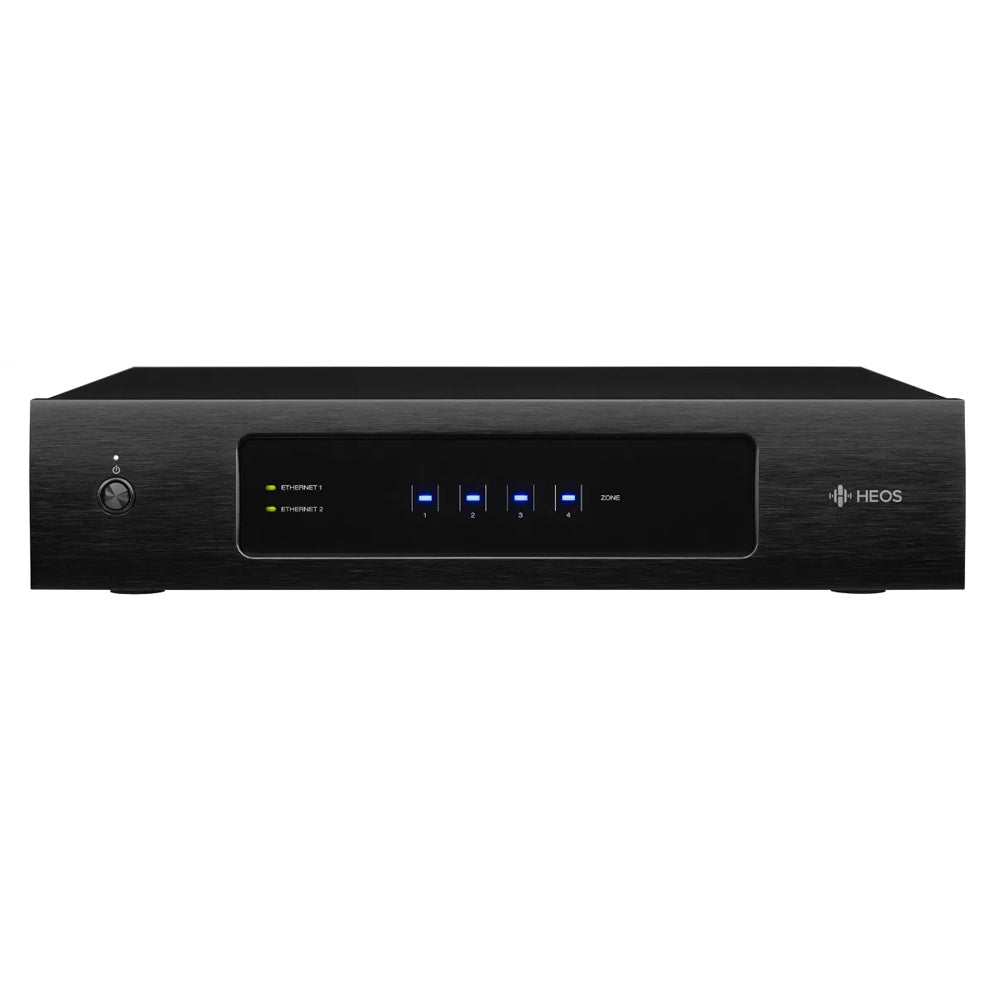

Denon HEOS DRIVE HS2 – 4-Zone Multi-Room Audio Distribution Amplifier

Overview:

HEOS Drive is part of the HEOS Sound System for multi-rooms, enjoy your favourite music anywhere around the home. By using your home network and the HEOS app on your device, you can stream music from online music services or browse your own music library to be ready to play on the sound system.

Bring true multi-room freedom to your home with the Denon HEOS Drive HS2, a powerful 4-zone whole-home audio distribution system designed for custom installations. This sleek, rack-mountable amplifier integrates seamlessly with the award-winning HEOS platform, offering exceptional sound quality, advanced connectivity, and full app control—all in one professional-grade solution.

4 Zones of Independent HEOS Audio

The HEOS Drive HS2 enables four separate audio zones, each capable of playing individual sources or syncing together in party mode. Each zone supports stereo playback, making it ideal for living rooms, kitchens, bedrooms, and even outdoor spaces. Built-in Class D amplification powers eight channels at 60W per channel (8 ohms), while bridged mode doubles output to 130W in two zones, ideal for larger or more demanding speaker setups.

Flexible Inputs & Outputs for Every Setup

Designed for versatility, the HEOS Drive HS2 features a matrix switching system with a comprehensive selection of inputs:

• 4 x RCA stereo analog inputs
• 2 x optical digital inputs
• 2 x coaxial digital inputs
• 4 x USB ports (one per zone for external storage playback)

Each zone includes pre-amp stereo outputs, configurable for stereo or mixed mono output. This allows integration with external amps or active speakers, giving installers complete flexibility for complex audio environments.

Advanced DSP with Crossover Management

Built-in DSP (Digital Signal Processing) gives you control over each output with adjustable high-pass and low-pass filters, allowing each zone to be tailored for full-range speakers, subwoofers, or satellite setups. Define crossover points to fine-tune performance for a truly optimised soundstage in every room.

Wireless or Wired Networking

The HEOS Drive HS2 connects over dual-band Wi-Fi or via Ethernet for solid network stability. It integrates with existing home networks and supports up to 32 HEOS devices, making it ideal for large homes, luxury apartments, or commercial properties.

Intuitive App Control via HEOS

Control your entire audio ecosystem through the HEOS app, available on iOS and Android. The app gives you complete command of music in every zone:

• Rooms Tab: See and manage what's playing in each room
• Music Tab: Access streaming services, local libraries, and USB content
• Now Playing Tab: View artwork, track info, and control playback

You can group zones instantly for multi-room playback or separate them for individual listening experiences. Use the "pinch" feature in the app to combine zones effortlessly.

Stream All Major Music Services & Formats

Enjoy instant access to popular platforms including:
Spotify, Amazon Music HD, TIDAL, Deezer, TuneIn (Internet Radio) and more.

Supports playback of almost any file format:
MP3, WMA, AAC, FLAC, WAV, ALAC, including Hi-Res Audio up to 24-bit/192kHz.

Supports DLNA streaming and content from network-attached storage (NAS), USB drives, or directly from your smartphone or tablet.

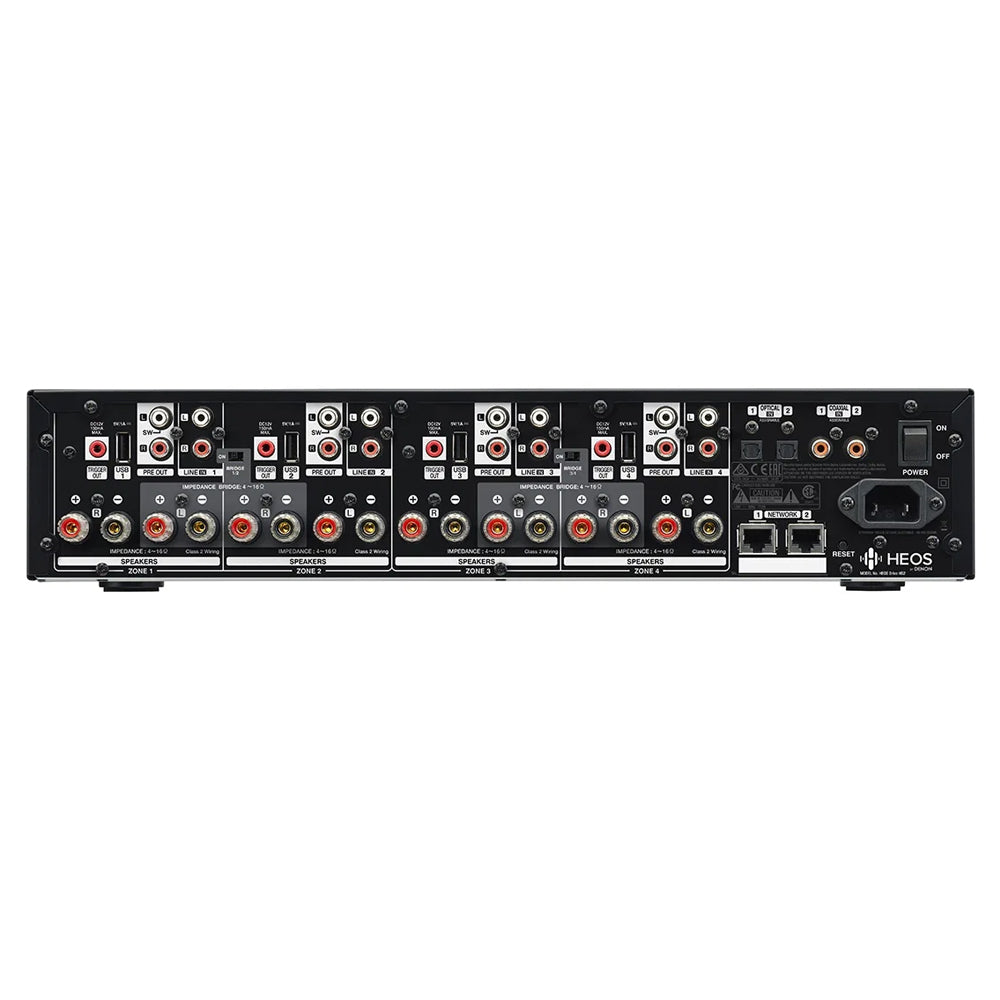

Custom Installation Ready

Engineered for professional setups, the HEOS Drive HS2 includes:

• 2U rack-mount chassis
• Removable rack ears for flexible mounting
• AC power inlet with detachable power cord
• IR control, 12V trigger inputs and outputs, and RS-232 serial port for integration with control systems like Crestron, Control4, and RTI.

Its compact yet robust design ensures seamless installation in AV racks or cabinets.

Premium Build with Denon Heritage

With over 110 years of hi-fi engineering, Denon ensures top-tier audio performance in every product. The HEOS Drive HS2 features high-grade internal components, efficient heat management, and Denon’s signature sound tuning—delivering clear, balanced, and immersive audio that lives up to the brand's legacy.

Key Features at a Glance:

• 4-Zone Amplifier with 60W x 8 channels (130W in bridged mode)
• Independent or grouped zone control via HEOS app
• Matrix switching with multiple digital and analog inputs
• USB port per zone for local music playback
• Supports high-resolution audio including FLAC, ALAC, WAV
• Dual-band Wi-Fi & Ethernet connectivity
• Works with Alexa, Google Assistant & Control4
• Rack-mountable with detachable ears
• Compatible with Spotify, Amazon Music, TIDAL, and more
• Ideal for custom whole-home and commercial audio installs

Take Control of Whole-Home Audio Like Never Before

Whether you’re building a smart home or upgrading a commercial AV setup, the Denon HEOS Drive HS2 gives you the power, flexibility, and quality to create a seamless audio experience across multiple zones.

• Denon HEOS DRIVE HS2 Specs Sheet
• Denon HEOS DRIVE HS2 User Manual

Features:

Play different music in different rooms or set up the party mode to synchronise music to the same song

Use your home network for a quick setup

Audio Synchronization between HEOS devices

Legendary Denon Audio Quality

Start setup with the HEOS quick start guide

Specifications:

Audio Section

Power Amplifier

Maximum Output Power:

(NORMAL OPERATION)

8-Channel Driving

60W + 60W (8 Ω/Ohms, 20 Hz – 20 Khz, T.H.D. 0.05 %)

(BRIDGE OPERATION)

4-Channel Driving

130W + 130W (8 Ω/Ohms, 20 Hz – 20 Khz, T.H.D. 0.05 %)

Rated Output:

(NORMAL OPERATION)

8-Channel Driving

60W + 60W (8 Ω/Ohms, 20 Hz – 20 Khz, T.H.D. 0.07 %)

(BRIDGE OPERATION)

4-Channel Driving

120W + 120W (8 Ω/Ohms, 20 Hz – 20 Khz, T.H.D. 0.07 %)

Output Connectors:

(NORMAL OPERATION)

4 – 16 Ω/Ohms

(BRIDGE OPERATION)

4 – 16 Ω/Ohms

THD+N: 0.05 % (20 Hz - 20 Khz)

S/N: 95 Db (IHF–A Weighted)

Frequency Response: 20 Hz To 20 Khz: ±1 Db

General:

Operating Temperature: 41 °F - 95 °F (5 °C - 35 °C)

Power Sup­ply: AC 120 V, 60 Hz (For North Amer­ica)

AC 220 - 240 V, 50/60 Hz (For Eu­rope, UK And Aus­tralia)

Power Con­sump­tion: 170 W (For North Amer­ica)

160 W (For Eu­rope, UK And Aus­tralia)

Power Con­sump­tion In Deep Standby Mode: 0.3 W

Weight: 16 Lbs 9 Oz (7.6 Kg) (With Brackets) 15 Lbs 14 Oz (7.3 Kg) (W/O Brackets)
