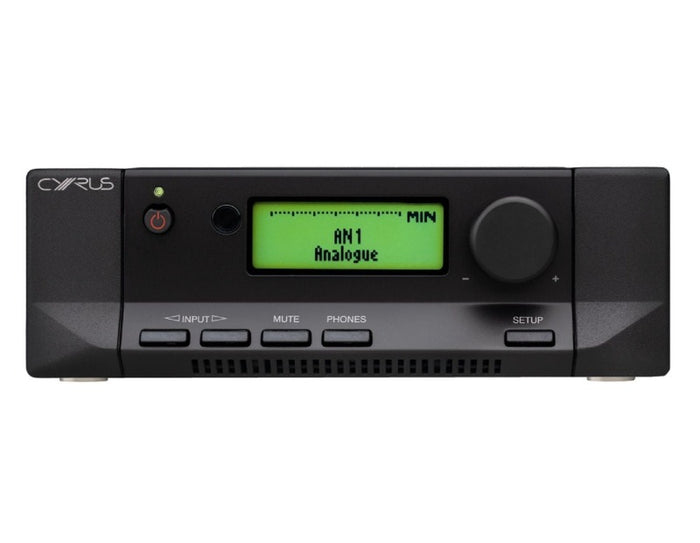

Cyrus Classic AMP Integrated Amplifier
Incorporating a Legacy: Cyrus Classic AMP
Boasting a legacy rooted in crafting premium compact amplifiers since the early 1980s, the Cyrus Classic AMP epitomizes timeless excellence. Renowned for its half-size casing that packs a robust punch, this amplifier stands as a testament to Cyrus' revered heritage. Surpassing expectations, it surprises users with unparalleled input flexibility, courtesy of its built-in DAC (Digital to Analogue Convertor). Offering inputs for four digital sources, alongside provisions for a turntable and up to four other sources, it redefines versatility.
Precision in Sound Experience
Acquainted with the acclaimed Cyrus sound? The Classic AMP effortlessly meets expectations. For newcomers, prepare for awe-inspiring auditory experiences. Leveraging an analogue pre-amp section and precision switches, this amplifier delivers the trademark smoothness and precision Cyrus is celebrated for. Dive deep into the essence of recordings - the perfect initiation into Cyrus' sonic world.
Unleashing Abundant Power
At its core lies a 304VA toroidal transformer, endowing the Classic AMP with unexpected vigor. Sporting a power rating of 70 watts per channel (or more with speakers under 8 ohms), it fills spaces with immersive soundscapes, conquering larger rooms and less efficient speakers alike.
Versatile Built-in DAC and Connectivity
Featuring two optical and two coaxial digital inputs, this amplifier accommodates up to four digital sources, harnessing the prowess of its high-quality DAC. Utilizing the same DAC chip as the award-winning QXR DAC, it excels in digital conversion. Seamlessly integrate your TV, gaming console, CD player, and more, embracing the flexibility of this versatile amp.
Exquisite Turntable Input
Beyond its four RCA line inputs, the Classic AMP hosts an MM (Moving Magnet) turntable input. This design boasts dual active gain stages and passive RIAA equalization, delivering high-resolution, low-distortion sound.
Expanded Connectivity in a Compact Form

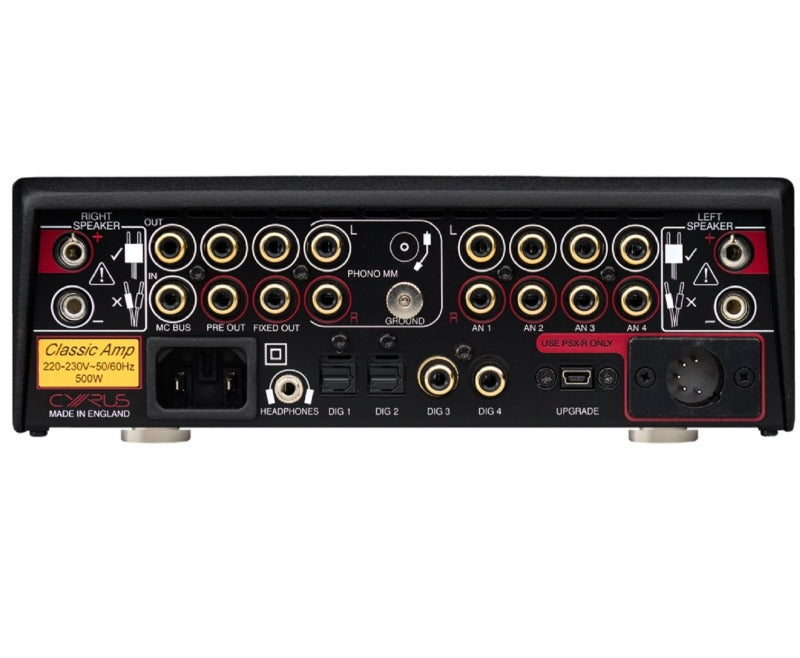

Despite its compact size, the Classic AMP offers extensive connectivity. Alongside digital and analogue inputs, it features a headphone output, pre-amp out, recording loop, and linking ports for interfacing with other Cyrus units and upgrading the power supply.
Upgrade Path with PSX-R
In line with other Cyrus offerings, the Classic AMP presents a clear upgrade path. Elevate its already exceptional sound by incorporating Cyrus's renowned PSX-R power supply. Benefit from the PSX-R's ultra-low noise power supply, refining sound clarity, enhancing definition, and minimizing distortion.
Elevate Your Sound System with Cyrus Classic AMP
Enrich your audio setup with the unparalleled performance and connectivity of the Cyrus Classic AMP. Experience heritage, precision, and upgradeability in a compact powerhouse, setting new standards in audio excellence.
What's in the box?
- Power Cable
- Remote Handset with batteries
- Kit of 2 x dual speaker plugs
- Quick-start guide
Specifications
Power Consumption
| Voltage |
As plate on rear of unit |
| Standby |
<0.5W |
| Maximum |
500W |
Enclosure
| Dimensions (WxHxD) |
215 x 75 x 365mm |
| Weight |
6.7kg |
| Material |
Die cast chassis |
Line audio performance
| Power Output (2 ch driven) |
(4 Ohms) 112W |
| Power Output (2 ch driven) |
(6 Ohms) 91W |
| Power Output (2 ch driven) |
(8 Ohms) 70W |
| THD+N (1kHz, 2/3 power) |
(6 Ohms) 100dB |
Phono audio performance
| Input Sensitivity (91W/6?) |
2.3mV |
| Input Impedance |
47k? |
| Max input voltage |
(1kHz) 25mV |
| Phono stage gain |
(1kHz) 80dB |
| RIAA tolerance |
<0.5dB |
| S/N Ratio (unwtd, ref 91W/6?, vol -6dB) |
83dB |
| THD |
<0.07 |
Digital audio performance
| Input voltage |
500mV pk-pk |
| Input Impedance |
75? |
| Sample rate range |
32k - 192k |
| Audio formats |
PCM stereo only |
| S/N ratio (0dB fs) |
-94dB |
| THD+N (0dB fs) |
<0.006 |
Cyrus Classic AMP Product Sheet
Cyrus Classic AMP User Guide
