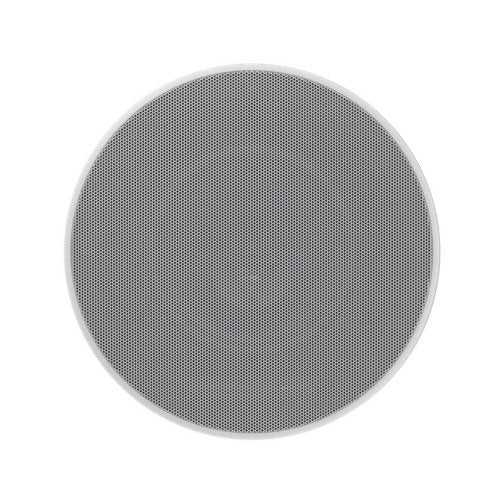

Bowers & Wilkins CCM662 Ceiling Speakers Pair
The CCM662 is a true high performance ceiling-mount speaker. The tweeter has a 25mm(1in) aluminium dome tweeter and its housing pivots for adjustable off-axis treble response. The die-cast chassis of the bass/midrange driver provides extra rigidity which results in a cleaner, faster bass and a three-position EQ switch offers a better off-axis response. With superior cross-over components along with gold plated terminals the CCM662 has an impressive maximum amp power of 150W. Its blue Aramid Fibre cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound. Incorporating QuickDogs™ and plug-and-play functionality it is quick and easy to install.
Specifications
Description 2-way in-ceiling system
Drive Units 1x ø25mm (1in) Nautilus™ swirl loaded aluminium
dome tweeter
1x ø150mm (6in) blue Aramid Fibre cone bass/midrange
Frequency Range (-6dB) 45Hz – 50kHz
Recommended Amp Power 25 – 150w
Sensitivity SPL (2.83V, 1m) 88dB
Impedance Nominal (min) 8Ω (4.5Ω)
Frame diameter 240mm (9.5in)
Cut-out diameter 202mm (8in)
Depth behind surface 133mm (5.2in)
Protrusion 4mm (0.2in)
Pre-mount Kit C6
Back Box 6C
