Bowers & Wilkins CCM632 High Performance Ceiling Speakers PairIn-Ceiling Speakers, are designed to squeeze into small spaces or be used in multiples for diffuse, background sound and are really difficult to get right.
If the driver is too small, there won’t be enough bass without adding a bulky subwoofer but the common alternative is a 2 way. Where the tweeter sits in front of a small bass/midrange driver.
The Problem with theses is the driver fires around the tweeter’s body, inevitably leading to colouration.

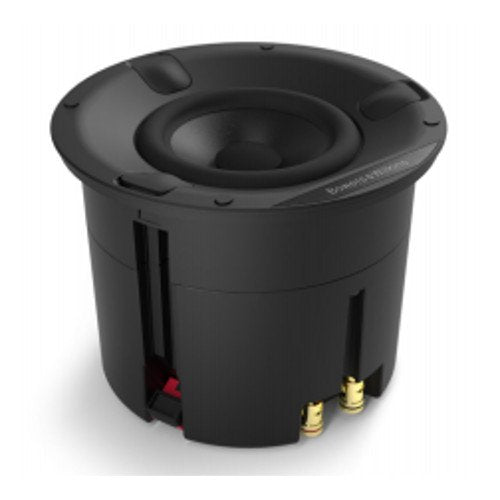

Bowers & Wilkins CCM632 is a single 75 mm full range driver with a beautiful well balanced sound, that sidesteps traditional small speaker issues yet still takes up less than 150 mm diameter space installed.
With the CCM632 it features new and innovative ZipDogs fixing method. These make short work of installation and cope with almost any thickness of mounting panel
Specifications
Description Single driver in-ceiling system
Drive Units 1x Ø75mm (3 in) paper cone full-range
Frequency range (-6dB) 100Hz – 17kHz
Frequency response (+/-3dB) 112Hz - 16kHz
Recommended
Amplifier Power 10W – 60W
Sensitivity 84dB (2.83V, 1m)
Nominal Impedance 8Ω (5Ω minimum)
Frame Ø147mm (5.8 in)
Cut-out Ø120mm (4¾ in)
Depth behind surface 100mm (4 in)
Protrusion 5.5mm (0.22 in)
Pre-mount Kit PMK C3
Back Box Integral
Grille Options Square and round grilles included
