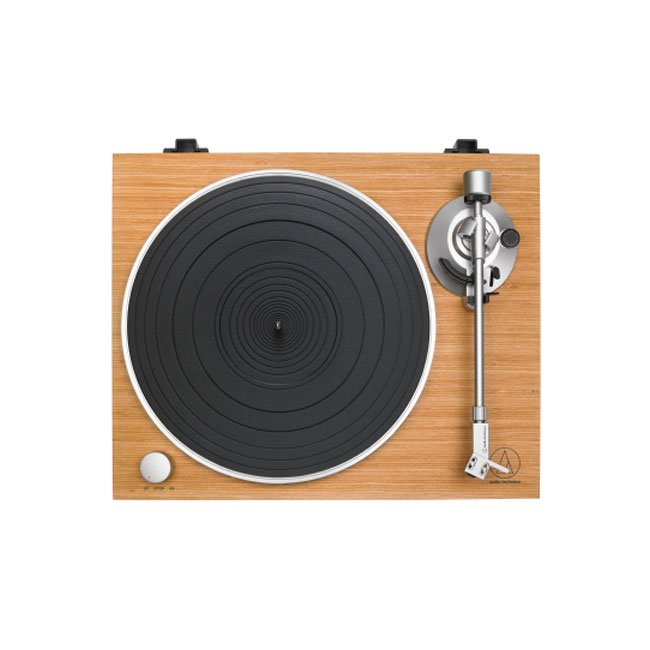

Audio Technica AT-LPW30TKFully Manual Belt-Drive Wood Base Turntable Teak
Enhance your audio experience with the Audio Technica ATLPW30TK, a fully manual belt-drive turntable featuring a unique blend of style and precision engineering. Designed with audiophiles in mind, this turntable offers a remarkable listening experience while incorporating minimalist aesthetics.
Elevated Sound Quality through Minimalist Design
Audio Technica has masterfully combined high-quality audio performance with a minimalist design philosophy in the LPW30TK. This manual turntable is stripped down to essentials, featuring only a speed control (33/45) and a tonearm lift. This simplicity minimizes distortion, preserving the purity of the audio signal and delivering an authentic, natural sound.
Versatile and Adjustable Tonearm
Enjoy a delightful vinyl listening experience with the hydraulically damped tonearm of the LPW30TK. This tonearm offers extensive adjustability, including settings for weight and anti-skating. Additionally, the detachable headshell simplifies cartridge upgrades, allowing you to fine-tune your turntable for optimal sound quality.
Included Audio Technica Cartridge
The LPW30TK comes equipped with the high-quality Audio Technica AT-VM95C cartridge, making it an excellent choice for both beginners and enthusiasts. Its conical stylus offers durability and minimizes record wear. Furthermore, a range of upgrade options with VM95 styli is available, allowing you to effortlessly enhance your sound by replacing the stylus.
Seamless Hi-Fi Integration with Built-In Phono Pre-Amp
Featuring a built-in phono pre-amplifier, the AT-LPW30TK can seamlessly connect to a wide range of hi-fi systems and speakers. The pre-amp elevates the signal to line level, facilitating compatibility with devices featuring AUX inputs. If you prefer to use your amplifier's phono pre-amp, you can easily disable the turntable's built-in pre-amp.
Distinctive Teak Design
The LPW30TK boasts a unique anti-resonance MDF plinth with a simulated teak wood veneer, making it stand out from the crowd of conventional black turntables. This design not only enhances the turntable's visual appeal but also helps it harmonize with your home décor.
Elevate your audio experience with the Audio Technica ATLPW30TK, where precision engineering and minimalist style meet to provide exceptional sound quality and an aesthetically pleasing addition to your audio setup.
Technical Specifications
| Type |
Belt-drive manual turntable |
| Motor |
DC servo |
| Drive method |
Belt drive |
| Speeds |
33-1/3 RPM, 45 RPM |
| Turntable platter |
Aluminium Die Casting |
| Wow and flutter |
< 0.15 % WRMS (33 RPM) at 3 kHz |
| Signal-to-noise ratio |
> 60 dB |
| Output levels
“PHONO” |
4.0 mV nominal at 1 kHz, 5 cm/sec“
LINE”[-]200 mV nominal at 1 kHz, 5 cm/sec |
| Phono Pre-amp gain |
35 dB nominal, RIAA equalised |
Tonearm specifications
| Type |
Static balanced straight aluminium pipe tonearm |
| Effective length |
223.6 mm |
| Overhang |
18.6 mm |
| Maximum tracking error angle |
Less than 2.0° |
| Stylus pressure adjustment range |
0 to 3.0 g |
| Applicable cartridge weight range (including head shell) |
12 to 17 g |
Cartridge and head shell specifications
| Cartridge Type |
VM |
| Recommended load impedance |
47,000 ohms |
| Output voltage |
4.0 mV (mV at 1 kHz, 5 cm/sec) |
| Stylus |
0.6 mil bonded conical stylus |
| Cantilever |
Aluminium pipe |
| Tracking force range |
1.8 to 2.2 g (standard 2.0 g) |
| Cartridge weight |
6.1 g (0.22 oz) |
| Head shell model |
AT-HS4 |
| Head shell weigh |
t 8.5 g (excluding lead wires) |
| Head shell overhang adjustment |
± 5 mm |
General Specifications
| Power supply requirements |
100 to 240 V, 50/60 Hz, 0.5 A Max. |
| Power consumption |
Working: 1.2 W
- Motor off: 1.1 W
- Power Off: 0.2 W |
| AC Adaptor |
12 V, 0.5 A |
| Dimensions |
420 mm (16.53") × 340 mm (13.38")× 116.9 mm (4.6")(W × D × H) |
| Weight (without dust cover) |
3.90 kg (8.60 lbs) |
| Accessories included |
Dust cover, Platter, Turntable mat, Drive belt, Counterweight, Headshell (AT-HS4) with VM stereo cartridge, 45-RPM adapter, RCA audio cable (Approx. 1.0 m (3.3')), AC adapter (Approx. 1.5 m (4.9'))(AD-SA1205WE), Dust cover hinges |
| Replacement stylus (sold separately) |
AT-VMN95C |
| Replacement head shell (sold separately) |
AT-HS4 |
| Replacement belt (sold separately) |
AT-LPW40WN/AT-LPW30TK exclusive |
