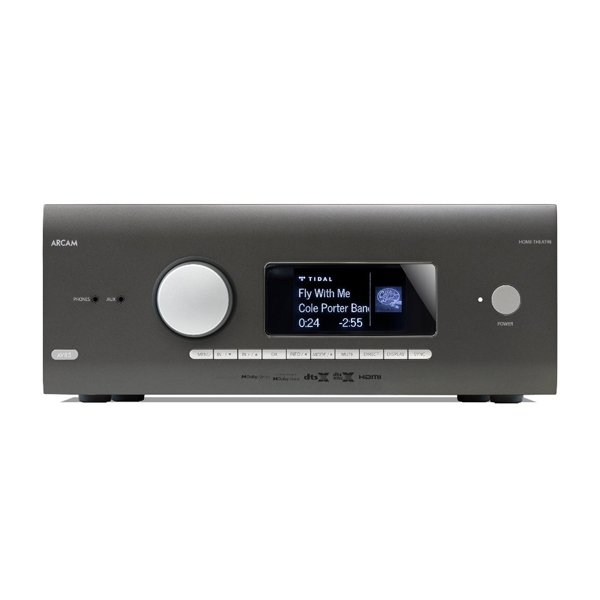

Arcam AVR5 Class AB AV Receiver

Arcam

Arcam AVR5 Class AB AV Receiver

In stock, ready to be shipped
£2,199.00 Incl. VAT
In stock, ready to be shipped
£2,199.00 Incl. VAT
Arcam AVR5 Class AB AV Receiver Black
Arcam AVR5 Class AB AV Receiver Black
Arcam AVR5 Class AB AV Receiver Black
Roll over image to zoom in Click on image to zoom
Arcam AVR5 Class AB AV Receiver Black
Arcam AVR5 Class AB AV Receiver Black
Arcam AVR5 Class AB AV Receiver Black
Arcam AVR5 Class AB AV Receiver Black
Arcam AVR5 Class AB AV Receiver Black
Arcam AVR5 Class AB AV Receiver Black
Buy Now Pay Later
5
Free DeliveryFree Delivery
Express Delivery Available
Prize Match

Specifications

Arcam AVR5 Class AB AV Receiver

Dolby Atmos & DTS:X 7.1.4 decoding
4K (UHD) HDMI2.0b with HDCP2.2
7 HDMI inputs, 2 HDMI outputs, eARC compatible
Ready for Dirac Live® room correction
ESS 9026PRO audiophile DACs
Class AB power amplification
Uses frame-type transformer
Wifi / Ethernet, RS232 and IR control
Apple Airplay2 and Google Cast for streaming audio
Bluetooth aptX®HD
Free MusicLife iOS and Android UPnP streaming app
Supports MQA
Roon Ready

Continuous power output, per channel, 8Ω/4Ω
2 channels driven, 20Hz - 20kHz, <0.02% THD 80W/100W
2 channels driven, 1kHz, 0.2% THD 85W/120W
7 channels driven, 1kHz, 0.2% THD 60W/85W
Residual noise & hum (A-wtd) <0.15mV

Stereo Line Inputs

Maximum input 4.5V rms
Nominal sensitivity 1V, 2V, 4V (user adjustable)
Input impedance 47kΩ
Signal/noise ratio (A-wtd ref 100W) normal/stereo direct 100dB/110dB
Frequency response 20Hz—20kHz ± 0.2dB

Preamplifier Outputs

Nominal output level 1V RMS (max. 5V RMS)
Output impedance 560Ω
THD+N (20Hz—20kHz) –100dB

Headphone Output

Maximum output level into 32Ω 5Vrms
Output impedance <100Ω

General

Mains voltage 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 1.5kW (Thermal dissipation approx. 5200 BTU/hour)
Power consumption (idle, typical) 90W (Thermal dissipation approx. 340 BTU/hour)
Power consumption (standby) <0.5W
Dimensions W x D (including speaker terminals) x H (including feet) 433 x 425 x 171mm
Weight (net) 16.5kg
Weight (packed) 19.8kg

Supplied accessories

Mains lead
Remote control with 2 x AAA batteries
Manual
DAB/FM aerial
3 x WiFi/Bluetooth antennas
