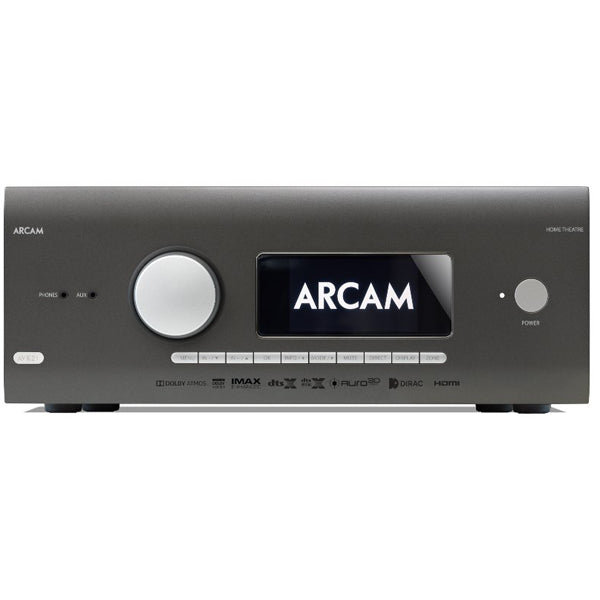

Arcam AVR21 HDA Range HDMI 2.1 High Power Class AB AV Receiver 16 Channels of Dolby Atmos DTS:X AURO-3D decoding
With 16-channel decoding, the AVR21 delivers an incredible theatre experience. That's not all though, this AV receiver was built with music in mind. Stream effortlessly to the AVR21 with the in-built Google Chromecast solution, Apple Airplay2 or simply via Bluetooth. The 7 channels of Class AB amplification are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.
Rich Musicality + Immersive Sound = Stunning Realism
The AVR21 is a high-power, audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. With native 16-channel decoding of immersive audio from Dolby Atmos, DTS:X and Auro-3D, the AVR21 can deliver incredible theatre experiences.
The Arcam AVR21 is designed with a passion for music and movies, bringing both to life with high fidelity and dynamics. The AVR21 features an over engineered toroidal transformer for real world power with low noise. The 7 channels of Class AB amplification are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.
The performance and musicality can be assured with Dirac Live® room optimisation included, and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast®, Bluetooth with aptX®HD, Spotify Connect, Tidal Connect and UPnP with the MusicLife app.
Dirac Live® Bass Control is available at an additional cost via the Dirac website: https://www.dirac.com/online-store/arcam-avr21/
Dirac Live® Bass Control aggregates measurement and location data from each subwoofer as well as the main speakers to determine how a system’s bass is distributed throughout the room
Product Specification
2 channels driven, 20Hz - 20kHz, <0.02% THD 110W/175W
2 channels driven, 1kHz, 0.2% THD 125W/190W
7 channels driven, 1kHz, 0.2% THD 90W/110W
Residual noise & hum (A-wtd) <0.15mV
Stereo Line Inputs
Maximum input 4.5V rms
Nominal sensitivity 1V, 2V, 4V (user adjustable)
Input impedance 47kΩ
Signal/noise ratio (A-wtd ref 100W) normal/stereo direct 100dB/110dB
Frequency response 20Hz—20kHz ± 0.2dB
Preamplifier Outputs
Nominal output level 1V RMS (max. 5V RMS)
Output impedance 560Ω
THD+N (20Hz—20kHz) –100dB
Headphone Output
Maximum output level into 32Ω 5Vrms
Output impedance <100Ω
General
Mains voltage 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 1.5kW (Thermal dissipation approx. 5200 BTU/hour)
Power consumption (idle, typical) 100W (Thermal dissipation approx. 340 BTU/hour
Power consumption (standby) <0.5W
Dimensions W x D (including speaker terminals) x H (including feet) 433mm x 425mm x 171mm
Weight (net) 16.6kg
Weight (packed) 19.9kg
Supplied accessories Mains lead
Remote control with 2 x AAA batteries
Manual
DAB/FM aerial
3 x WiFi/Bluetooth antennas
Calibration microphone
USB cable
