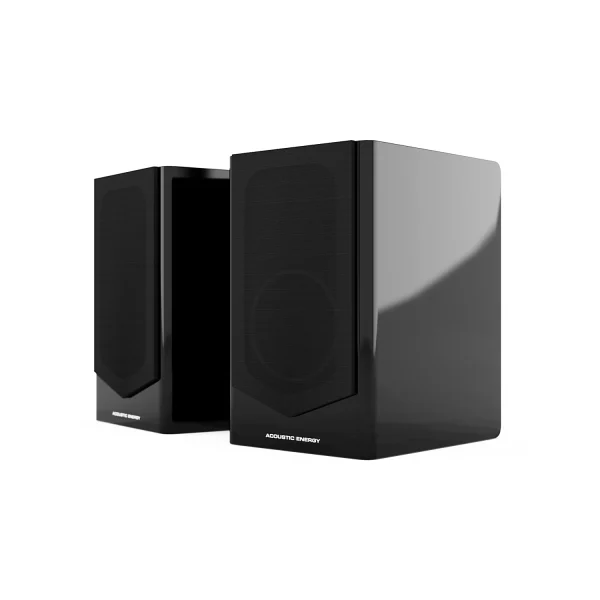

AE500 Compact Stand-Mount Loudspeaker – Precision Engineering for Audiophile Sound
The AE500 is a premium compact loudspeaker designed for discerning listeners who demand exceptional audio performance in a refined, space-conscious form. Built on Acoustic Energy’s legacy of innovation, this model redefines what a stand-mount speaker can achieve, delivering high-resolution sound with remarkable clarity, depth, and control.
Advanced Carbon Fibre Driver Technology

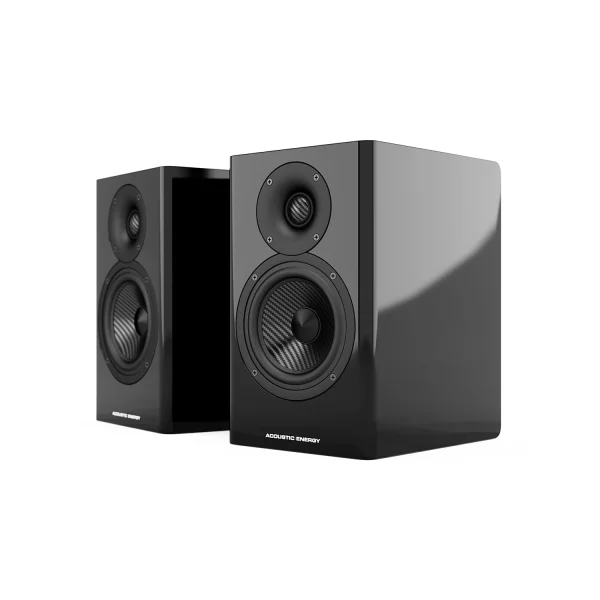

At the core of the AE500 is a newly developed driver system featuring carbon fibre cones and domes. The 25mm carbon fibre tweeter offers ultra-low mass and superior damping, resulting in lightning-fast transient response and a neutral tonal balance. Paired with a 125mm mid/bass driver equipped with an oversized 35mm voice coil, the AE500 delivers punchy, articulate bass and a richly detailed midrange. This combination ensures dynamic performance across all genres, from classical to electronic.
Precision-Tuned Crossover Network
The AE500’s 2-way crossover is engineered for seamless integration between drivers, using high-voltage polypropylene capacitors and air-core inductors. This design minimizes phase distortion and enhances imaging, creating a wide and coherent soundstage that remains stable even at high output levels.
Resonance Suppression Cabinet Design
Constructed from 18mm Resonance Suppression Composite (RSC) panels, the AE500’s cabinet is designed to eliminate unwanted vibrations and coloration. Inspired by Acoustic Energy’s Reference Series, this enclosure enhances sonic purity while maintaining a sleek, modern aesthetic. The result is a speaker that sounds as clean as it looks.
Elegant Finishes for Any Interior
Available in Piano Gloss Black, Piano Gloss White, and American Walnut wood veneer, the AE500 blends effortlessly into any home environment. Whether placed on dedicated speaker stands or integrated into a bookshelf setup, its minimalist design complements both contemporary and traditional décor.
Technical Specifications
-
Tweeter: 25mm carbon fibre dome
-
Mid/Bass Driver: 125mm carbon fibre cone
-
Frequency Response: 45Hz – 28kHz
-
Sensitivity: 87dB
-
Peak SPL: 113dB
-
Power Handling: 120W
-
Impedance: 6 Ohms
-
Crossover Frequency: 2.8kHz
-
Design: 2-way
-
Grilles: Slim magnetic cloth
-
Dimensions (HxWxD): 310 x 185 x 260 mm
-
Weight: 8kg per speaker
-
Finish Options: Piano Gloss Black, Piano Gloss White, American Walnut
Why the AE500 Stands Out
- High-fidelity carbon fibre drivers for superior sound accuracy
- Low-resonance cabinet construction for pure audio reproduction
- Elegant design with premium finish options
- Ideal for stereo setups, home cinema, and high-resolution streaming
Optimized for audiophiles and home audio enthusiasts, the AE500 offers a rare combination of compact design, advanced engineering, and refined aesthetics. It’s not just a speaker—it’s a statement in sound.
