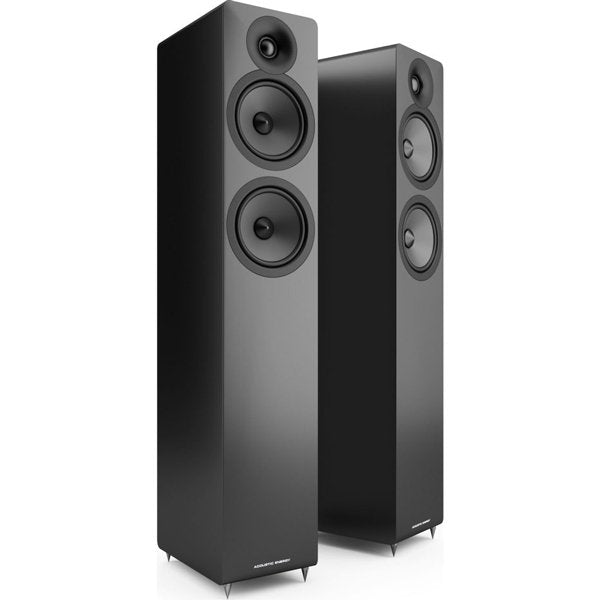

Acoustic Energy AE109 MK2 Satin Black Slimline Floor Standing Loudspeaker
AE109², a slimline floor-standing loudspeaker in much the same way the world acclaimed original AE109 was 20 years ago.
Two 130mm paper drivers utilising an ultra-high force motor system are used in partnership with a 25mm soft dome tweeter.
The 2.5-way crossover features a unique topology allowing integration and power handling previously un-achievable from this type of speaker. Particular attention has been paid to the phase and time alignment for the most cohesive performance possible.
TWEETER
Acoustic Energy’s bespoke 25mm soft dome tweeter was designed in tandem with the 100 Series bass driver to offer optimum integration and tonal matching.
Paired with our Wide Dispersion Technology waveguide, the crossover region between drive units is audibly seamless whilst the high-power neodymium motor assembly ensures reliable, distortion-free high-volume playback.
DRIVERS
The 130mm bass/mid driver used in the 100 Series has been developed with a high power, long excursion motor to provide satisfying volume levels and bass extension from relatively compact enclosures.
The doped paper cone enables a higher crossover point for smoother mid-range and seamless crossover with the tweeter, creating extremely high fidelity, detailed and above all musical sound reproduction.
CABINET
The 100 Series uses thin, 15mm high density (HDF) enclosures with carefully tuned bracing, reducing harmful resonances whilst retaining body and substance from compact, practical cabinets.
The rear slot porting* enhances smooth bass extension with minimal room impact, allowing easy placement. The AE109² and AE120² feature inert mass-loading for additional stability and acoustic damping, all models come supplied with slim magnetic grilles.
Drive Unit: 130mm paper cones
Tweeter: 25mm fabric dome
Frequency Range: 41Hz – 26kHz
Sensitivity: 89dB
Peak SPL: 115dB
Power Handling: 175w
Crossover Frequency: 275Hz, 2.5kHz
Impedance: 6ohms
Design: 2.5-way
Grilles: Slim, cloth magnetic fit
Dimensions (mm): 860 x 165 x 250 (HxWxD)
Weight: 16kg (each)Acoustic Energy, AE109 MK2, Satin Black, Slimline, Floor Standing, Loudspeaker
