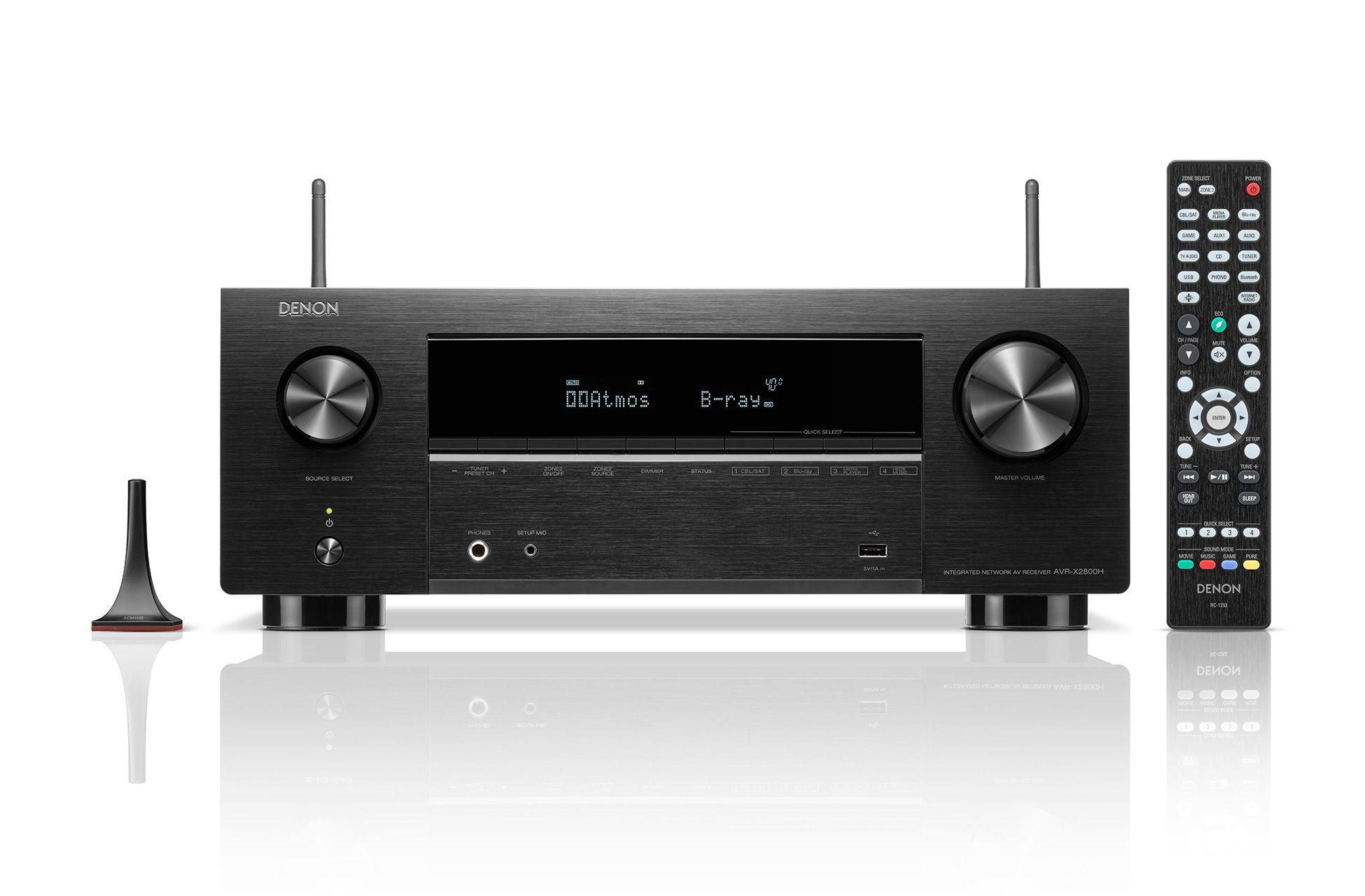

Denon AVRX2800H 7.2 Ch 150W Dolby Atmos and DTS:X 8K AV Receiver

 |
|
 |
|
 |
High performance discrete 7-channel amplifier |
|
Immersive audio experience |
|
Advanced 8k home theatre |
Discrete high-current amplifiers on all channels to deliver up to 150W per channel- enough power to drive any speaker
|
|
Get immersed in music and movies with Dolby Atmos® and DTS:X® plus Dolby Surround and DTS Neural:X upmixer to optimize legacy content.
|
|
8K video is supported on three of six HDMI inputs and two outputs. Enjoy easy video compatibility and great picture quality with HLG, HDR, Dolby Vision, HDR10+, and Dynamic HDR pass-through.
|
 |
|
|
HEOS® Built-in technology |
|
|
Stream music wirelessly to compatible HEOS-enabled components from a variety of streaming services. Add Denon Home speakers to more rooms and control it all with the HEOS app.
|
|
|
Specifications
Number of Power Amps 7
Power Output
185 watts per channel (6 ohms, 1 kHz, THD: 1%, 1 ch driven)
195 watts per channel (8 ohms, 20Hz–20kHz, THD: 0.08%, 2 ch driven)
Speaker Impedance 4-16Ω/ohms
Preamplifier Section
Input Sensitivity/ Impedance 200 mV/47k kohms Frequency Response 10Hz–100kHz – +1, -3 dB (Direct Mode)
S/N Ratio 100 dB (IHF-A weighted, Direct Mode)
FM Section
Tuning Frequency Range 87.5–107.9 MHz
AM Section
Tuning Frequency Range 520–1710 kHz
General
Power Supply 230V / 50/60Hz
Power Consumption 500W (Standby 0.1W, CEC standby 0.5W)
Power Consumption (No Sound) 35W (ECO Mode On) 75W (ECO Mode Off)
Maximum Dimensions (WxDxH)
Antenna:Horizontal (mm) 434 x 341 x 167
Antenna:Vertical (mm) 434 x 341 x 237
w/o Antenna: (mm) 434 x 330 x 167
Carton Dimensions (Packaging) (WxDxH) (mm) 520 x 429 x 243
Weight (kg) 4.3

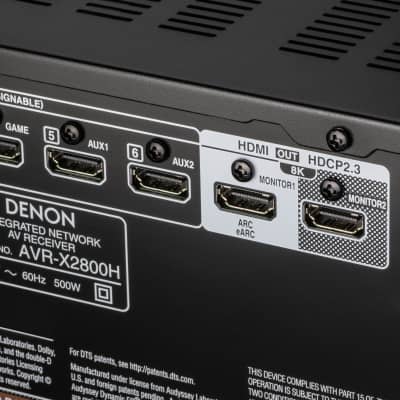

Ports
In
HDMI x6
8K HDMI x1
Component (Video) x2
Composite (Video) x2
Phono x1
Analogue Audio x4
Digital Optical x2
USB Front x1
Out
HDMI Monitor (1x eARC) x2
8K HDMI x2
Component (Video) x1
Composite Monitor x1
Audio Pre-out (SW) 0.2 ch
Zone 2 (pre-out and speaker assignable) x1
Headphones x1
Other
Ethernet x1
Microphone Port x1
FM/AM Tuner Antenna x1
