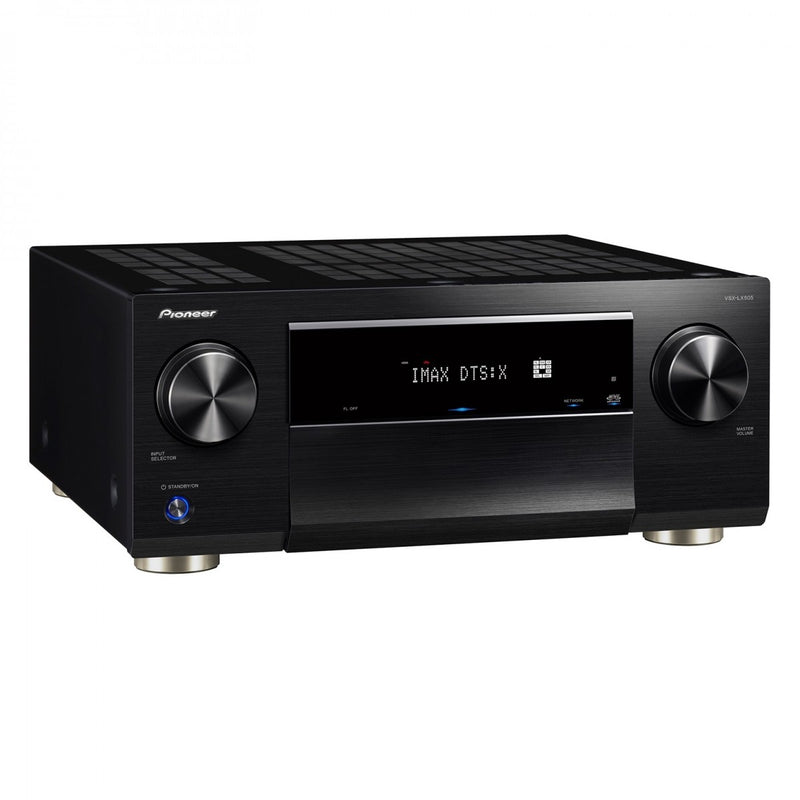

Pioneer VSX-LX505B 11.2 Channel Av Receiver - Black
'The feature set offered by the Pioneer VSX-LX505 is difficult to beat at its £1599 price point. It is compatible with just about every streaming service, video standard and audio format that you can shake a stick at, and it delivers this in an attractive, well-built and user-friendly package.'
Pioneer VSX-LX505 - AVForums, Jan 2023, '8/10, Recommended'
Featuring up to 11.2 channels and 120 watts of power per channel, IMAX® Enhanced Audio, and Dirac Live® Room Correction, the Pioneer VSX-LX505 ELITE 9.2 Channel AV Receiver delivers multi-dimensional excitement to your home theater. Equipped with Dirac Live® Room Correction, the VSX-LX505 adjusts the sound according to the space and speakers while offering improved musical staging, dialog, and deeper bass.
Go beyond an experience confined to one room – the Pioneer Elite VSX-LX505 AV receiver brings cinema-quality sound and images to multiple rooms for real home entertainment.
Specification
Amplification
Channels 9
Amplification Type Direct Energy
230 W/ch 6 ohms, 1 kHz, THD 10 %, 1ch Driven
120 W/ch 8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven FTC
Audio Features
IMAX Enhanced Yes
Dolby Atmos®, Dolby Surround Upmixer supports DTS Formats Yes
DTS:X®, DTS Neural:X® Upmixer supports Dolby Formats Yes
Reflex Optimizer Yes
Dolby Atmos Height Virtualizer Yes
Dolby® TrueHD, Dolby Digital Plus Yes
DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express Yes
DSD Disc (SACD) Playback via HDMI
2.8 MHz/2 ch, 5.1 ch
Digital Quad-Core 32-bit DSP (Cirrus Logic) + Aureus™ floating-point DSP (TI) Yes
Hi-Res Audio 192 kHz/24-bit D/A Conversion
Enhanced Audio Return Channel (eARC) on HDMI Out (Main) Yes
Advanced MCACC Auto Room Tuning AutPhase Control Plus, Subwoofer EQ, Multi-point Standing Wave Control
Dirac Live® Room Correction Yes
Advanced Sound Retriever (2ch) Yes
Advanced Surround Modes Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Mono Music, Front Stage Surround Advance
Video Features
Support HDMI 2.1 with 8K: VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QFT (Quick Frame transport), DSC (Display Stream Compression), and QMS (Quick Media Switching) pass-through
Supports HDR10+, HDR10, and HLG; 8K/60p(4:2:0/10-bit), 8K/30p (4:4:4/10-bit, 4:2:2/12-bit), 4K/120p (4:4:4/10-bit, 4:2:2/12-bit), 4K60p (4:4:4/12-bit) and BT.2020 color; DeepColor™ (36-bit), “x.v.Color”, LipSync, and HDCP 2.3 : Yes
Dolby Vision Compatible: Yes
Dolby Vision Compatible: 4K to 8K, 1080p to 8K/4K
Convenience Features
Personal Preset Yes
Dialog Enhancement Yes
Dual Band (5 GHz/2.4 GHz) Wi-Fi® Built-in Yes
Bluetooth® Wireless Technology Transmitter/Receiver (Version: 4.2, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/aptX/aptX HD (TX), SBC/AAC(RX)) Built-in
Pioneer Remote App Ready for Multi-room Entertainment Control and Network Streaming
User-Friendly GUI with System Setup Menu Yes
On-Screen Information for Audio, Video and Network Yes
Web Setup Yes
Auto Power Off in HDMI Standby Through Yes
AM/FM Tuner 40 Presets Yes
Sleep Timer Yes
User-Friendly Simple Remote Control Yes
Front Terminals
HDMI 1 In Yes
USB 1 In for USB Drive Yes
MCACC/Dirac Live Setup MIC In Yes
Phones 1 Out (Gold-Plated) Yes

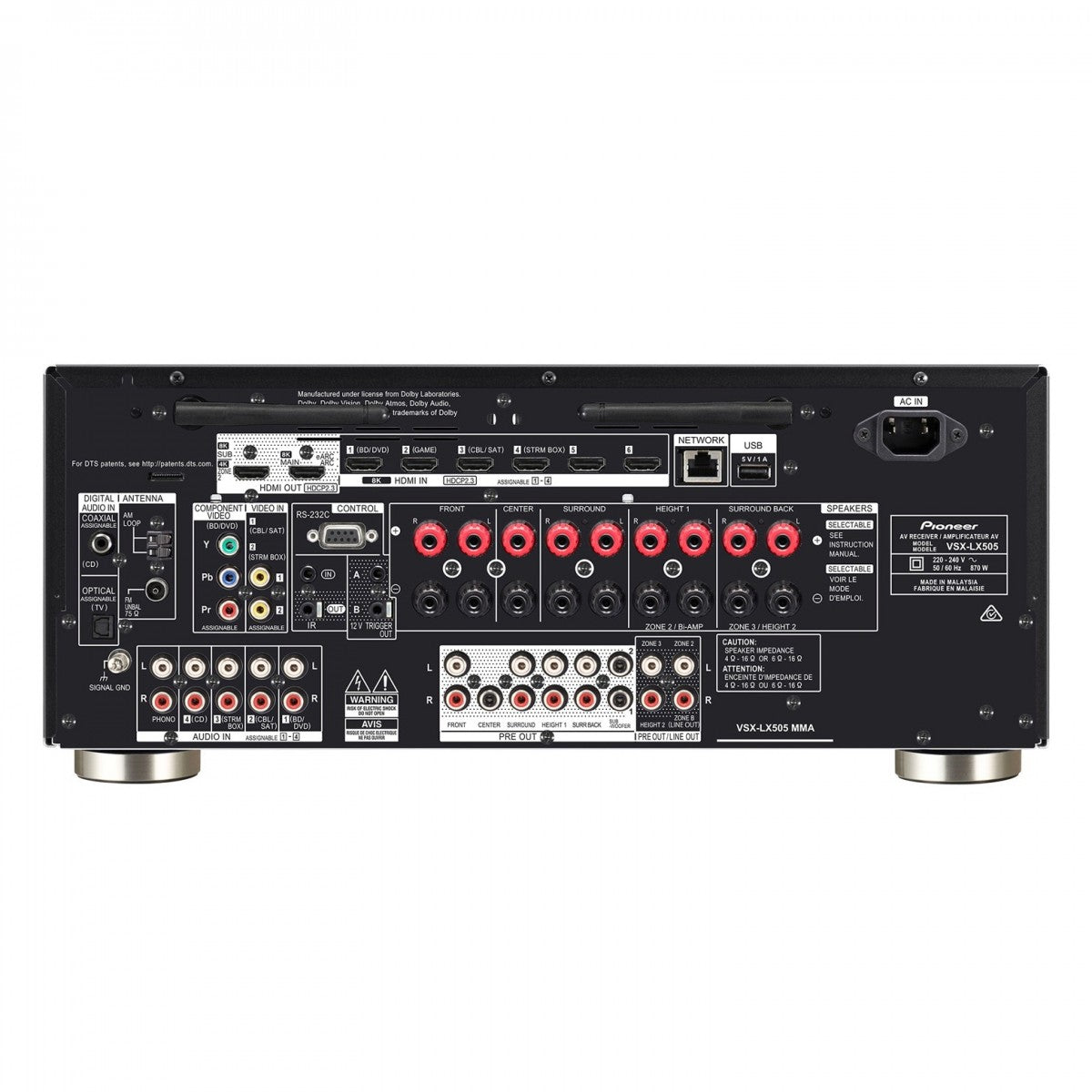

Rear Terminals
HDMI 6 In 4 Assignable
HDMI 2 Out 1 for MAIN, 1 for SUB/ZONE 2
Ethernet 1 In
USB 1 In for USB Drive Yes
AV (Component) 1 IN Assignable
AV (Composite) 2 In Assignable
Audio 1 In Assignable
Phono (MM) 1 In Yes
Digital Coaxial 1 In Assignable
Digital Optical 1 In Assignable
FRONT, CENTER, SURROUND, SURROUND BACK, HEIGHT 1, HEIGHT 2, SUBWOOFER x 2 Pre Out Yes
ZONE 2 Pre/Line Out/ZONE B Line Out Yes
ZONE 3/HEIGHT 2 Pre/Line Out Yes
Speaker 11 channel Out FRONT, CENTER, SURROUND, HEIGHT 1/Bi-AMP, SURROUND BACK/ZONE 3/HEIGHT 2, ZONE 2
IR 1 In 1 Out
12 V Trigger 2 Out
RS-232C Yes
FM/AM Antenna Yes
Specifications
Power Requirements AC 120 V, 60 Hz
Power Consumption/Standby 850 W/0.1 W
Dimensions (W x H x D) 17-1/8 x 7-5/16 x 15-3/16 inches (435 x 185 x 386 mm)
Weight 28.7 lbs. (13 kg)
Carton Dimensions 21-5/16 x 12-3/16 x 19-3/16 inches (541 x 310 x 487 mm)
Carton Included Weight 35.3 lbs. (16.0 kg)
