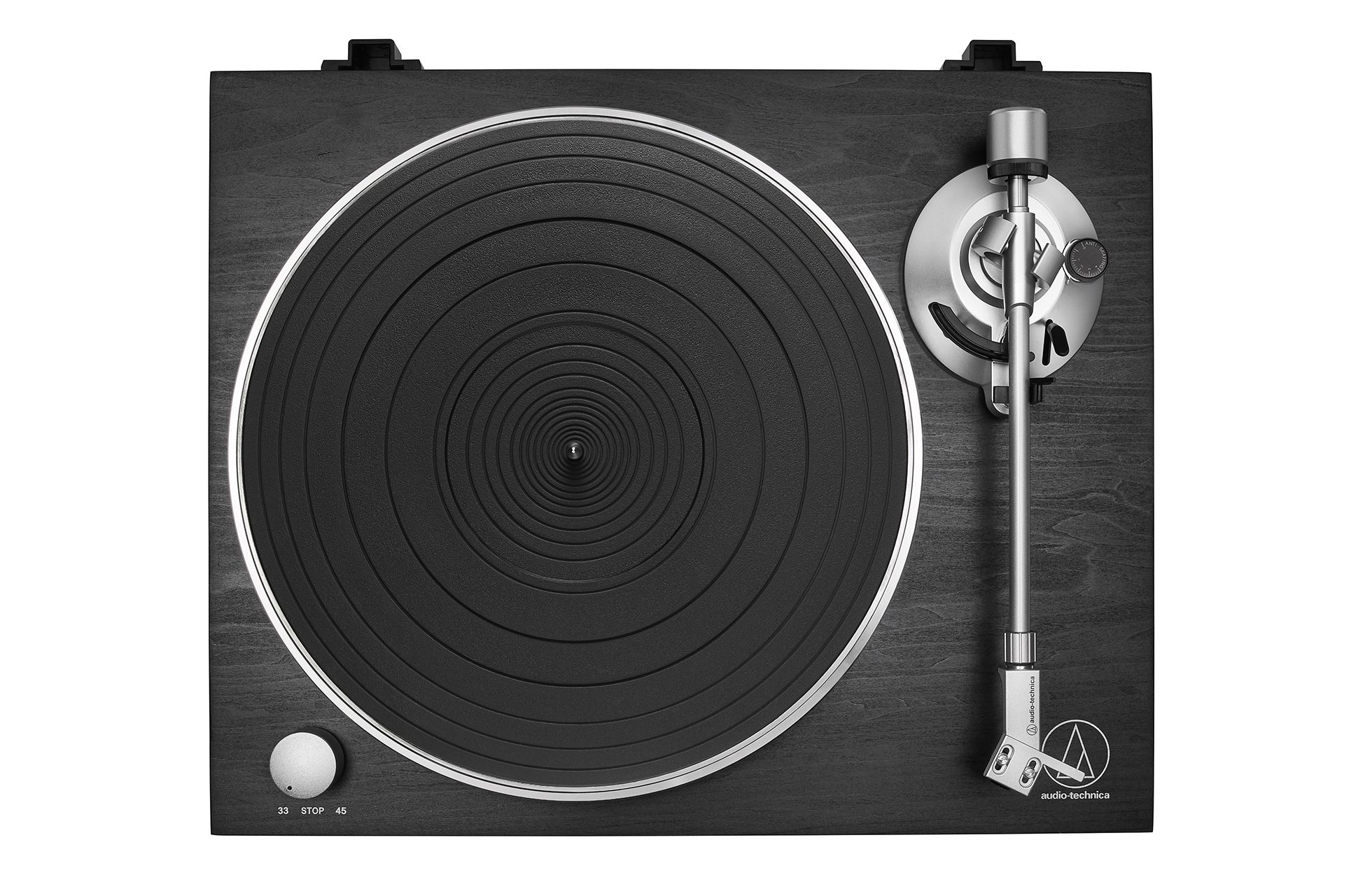

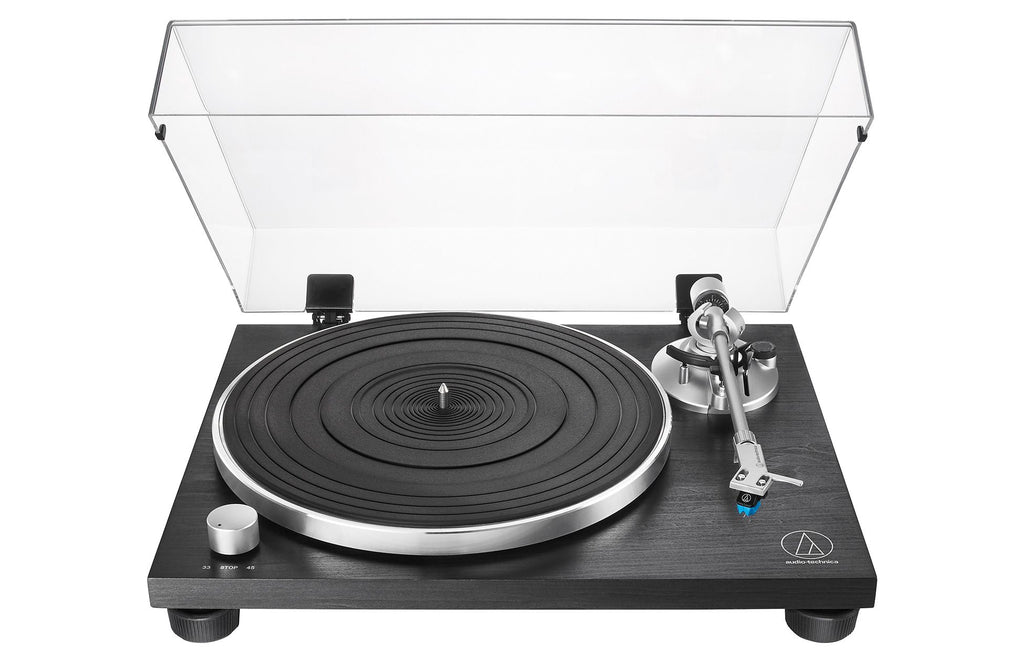

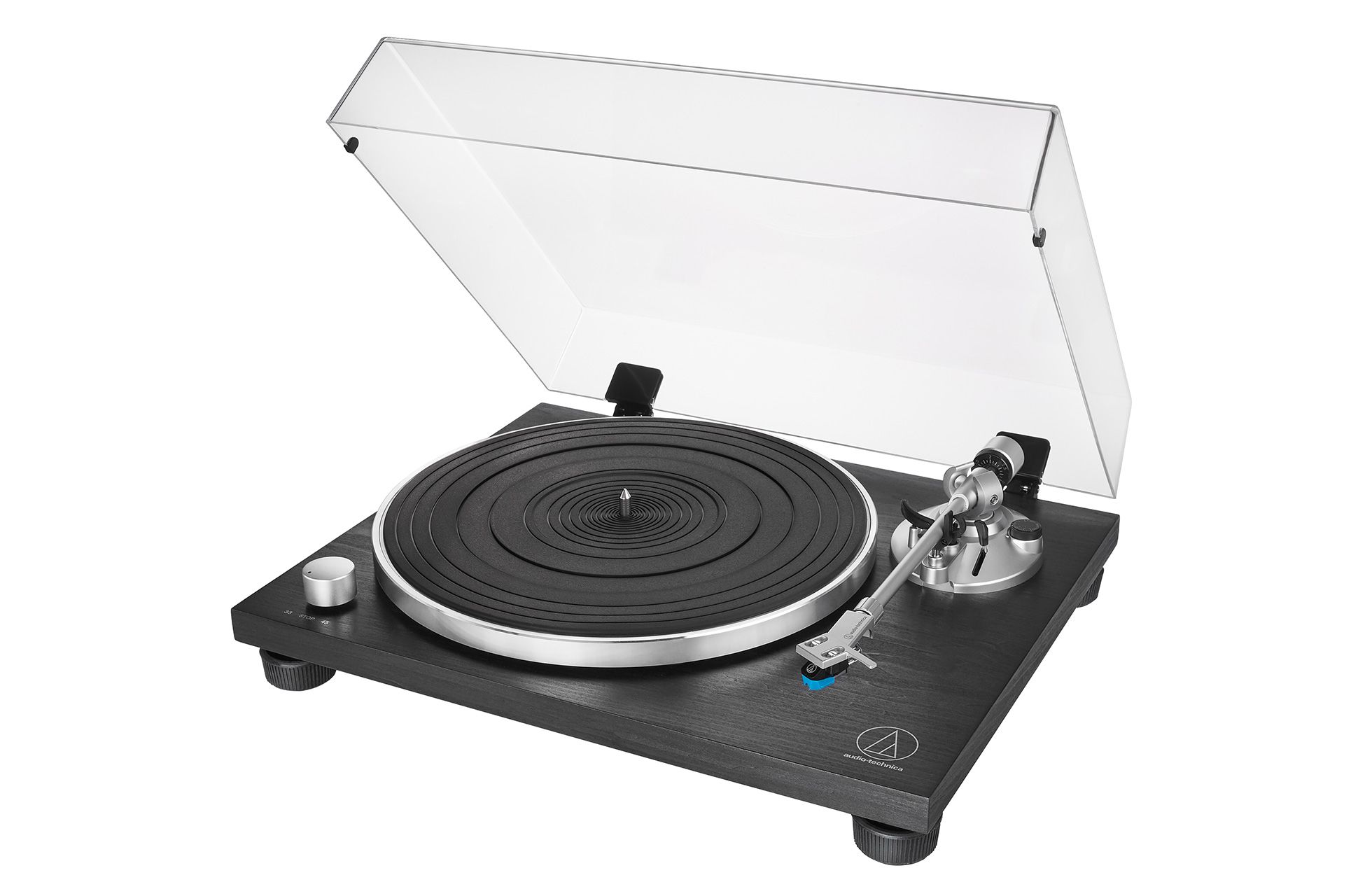

Audio Technica AT-LPW30BK Fully Manual Belt Drive Wood Base Turntable Black
Exquisite Sound Through Minimalist Design
The Audio Technica AT-LPW30BK turntable is designed with simplicity and quality at its core. This fully manual, belt-drive turntable features only essential controls like speed selection (33/45 RPM) and tonearm lift, ensuring a clean and elegant design. By minimizing extraneous features, the LPW30BK maintains a pure audio signal, delivering smooth and natural sound with minimal distortion.
Precision Adjustable Tonearm
Experience the pleasure of a finely tuned listening experience with the LPW30BK's hydraulically damped tonearm. The tonearm's adjustable counterweight and anti-skating mechanism, along with a detachable headshell, make it easy to upgrade the cartridge and achieve the perfect sound. These adjustments allow you to optimize tracking force and anti-skate settings, enhancing your vinyl playback.
Quality Audio Technica Cartridge Included
Equipped with the Audio Technica AT-VM95C cartridge, this turntable is ready to deliver impressive audio right out of the box. The AT-VM95C features a durable conical stylus that offers longevity and gentle treatment of your vinyl records. For audiophiles seeking even better sound, the cartridge is compatible with a variety of upgradeable VM95 styli, allowing for easy enhancements.
Versatile Connectivity with Built-In Phono Pre-Amp
The AT-LPW30BK’s built-in phono pre-amp allows it to connect seamlessly to nearly any hi-fi system or powered speakers. By boosting the signal to line level, it ensures compatibility with devices that have AUX inputs. If you prefer using your amplifier’s phono stage, you can easily switch off the built-in pre-amp for a direct connection.
Timeless Classic Design
Featuring an anti-resonance, MDF plinth with a sleek black wood effect finish, the LPW30BK combines classic aesthetics with modern functionality. Its timeless design effortlessly complements any hi-fi setup while standing out as a stylish piece in its own right.
Experience the Perfect Blend of Sound and Style
With the Audio Technica AT-LPW30BK, enjoy high-quality sound delivered through a meticulously designed, minimalist turntable that brings a touch of classic elegance to your audio setup.
Features
- Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
- Fully manual operation
- Adjustable dynamic anti-skate control
- Professional anti-resonance, die-cast aluminum platter with rubber mat
- AT-HS4 universal ½"-mount headshell and AT-VM95C Dual Moving Magnet phono cartridge with 0.6 mil conical stylus
- AT-VM95C cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
- Straight tonearm with hydraulically damped lift control and lockable rest
- Anti-resonance MDF (medium density fiberboard) plinth with black wood veneer
- Built-in switchable phono pre-amplifier for phono or line-level output
- AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
- Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber mat, and removable hinged dust cover
Technical Specifications
| Type |
2-speed, fully manual operation |
| Motor |
DC servo motor |
| Drive Method |
Belt-drive |
| Speeds |
331/3 RPM, 45 RPM |
| Turntable Platter |
Die-cast aluminum |
| Wow and Flutter |
< 0.15% WRMS (33RPM) at 3kHz |
| Signal-to-Noise Ratio |
> 60dB |
| Output Level |
Pre-amp: PHONO: 4.0mV nominal at 1kHz, 5cm/sec
Pre-amp: LINE: 200mV nominal at 1kHz, 5cm/sec |
| Phono Pre-Amp Gain |
35 dB nominal, RIAA equalized |
| Power Supply Requirements |
100 to 240V, 50/60Hz |
| Dimensions |
116.9 x 420.0 x 340.0 (H x W x Dmm) |
| Weight |
5 kg |
| Accessories Included |
AT-HS4SV Headshell AT-VM95C Dual Moving Magnet Cartridge with Conical Stylus Detachable RCA output cable (dual RCA male to dual RCA male) AC adapter 45 RPM adapter Counterweight Rubber mat Removable hinged dust cover |
| AC Adapter |
12 V, 0.5 A |
| Tonearm Type |
Static balanced straight aluminum pipe tonearm |
| Effective Arm Length |
223.6 mm |
| Overhang |
18.6 mm |
| Tracking Error Angle |
<2 degrees |
| Applicable Cartridge Weight |
12-17 g |
| Replacement Stylus |
AT-VMN95C |
| Notes |
Stylus pressure adjustment range: 0-3 g |
